Airbag Sensor Front LH: Replacement

HINT:

Use the same procedures for the RH side and LH side.

1. PRECAUTION (see  SUPPLEMENTAL RESTRAINT SYSTEM  )
2. DISCONNECT BATTERY NEGATIVE TERMINAL
   CAUTION: After removing the terminal, wait for at least 90 seconds before starting the operation.
3. REMOVE ENGINE UNDER COVER LH
4. REMOVE AIRBAG SENSOR FRONT LH
   1. Disconnect the connector from the airbag sensor front LH.
   2. Remove the bolt and the airbag sensor front LH.

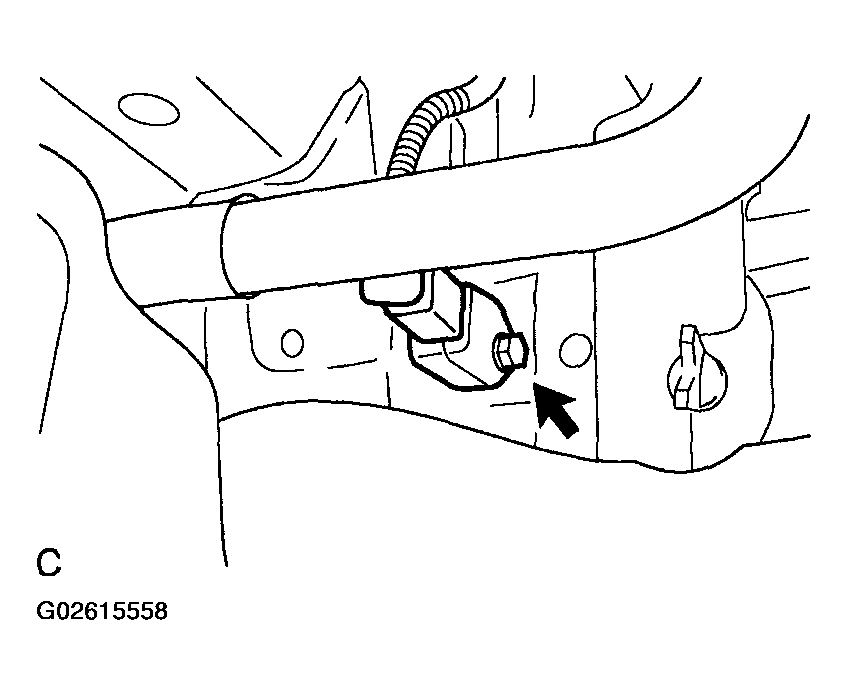

   Fig 1: Removing Airbag Sensor Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL AIRBAG SENSOR FRONT LH
   1. Check that the ignition switch is off.
   2. Check that the battery negative (-) terminal is disconnected.
      CAUTION: After removing the terminal, wait for at least 90 seconds before starting the operation.
   3. Install the airbag sensor front LH with the bolt.

      Torque: 9.0 N.m (92 kgf.cm, 80 in..lbf)

      NOTE:

      • If the airbag sensor front LH has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
      • When installing the airbag sensor front LH, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
   4. Check that there is no looseness in the installation parts of the airbag sensor front LH.
   5. Connect the connector to the airbag sensor front LH.
6. INSTALL ENGINE UNDER COVER LH
7. CONNECT BATTERY NEGATIVE TERMINAL
8. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
