MIL Circuit: Wiring Diagram

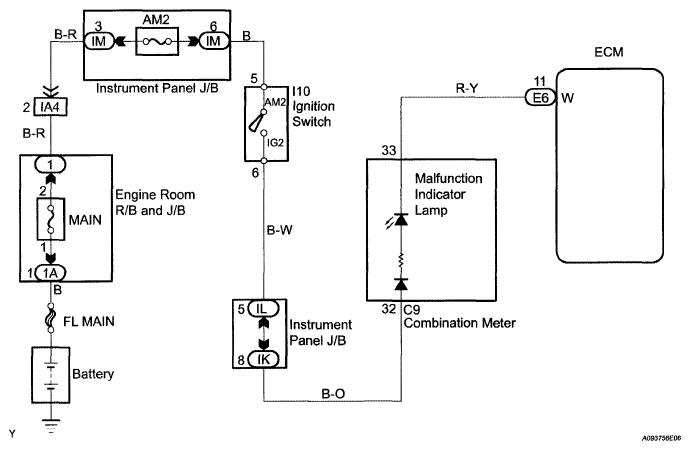

Fig 1: MIL - Wiring Diagram

G05192693

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
