Instrument Panel Safety Pad: Components

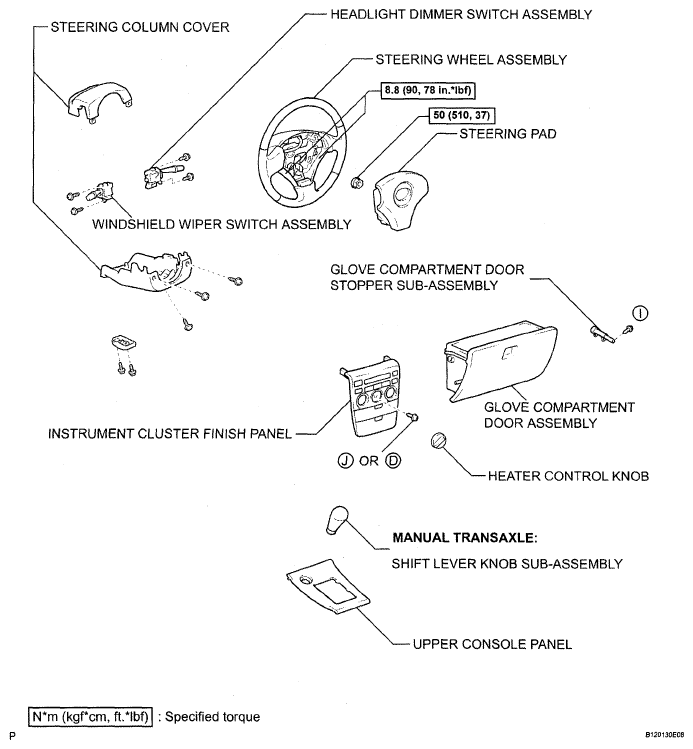

Fig 1: Instrument Panel Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

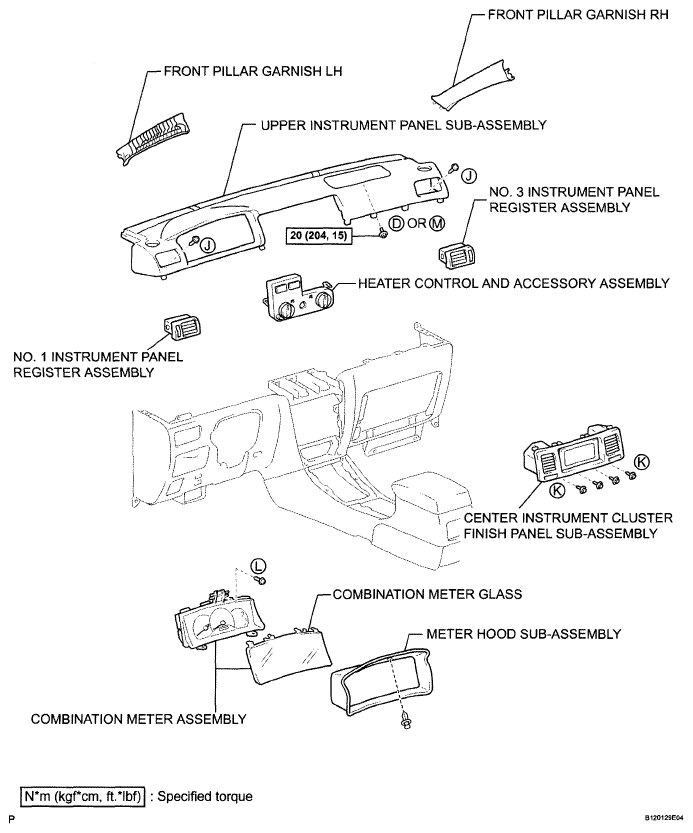

Fig 2: Instrument Panel Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

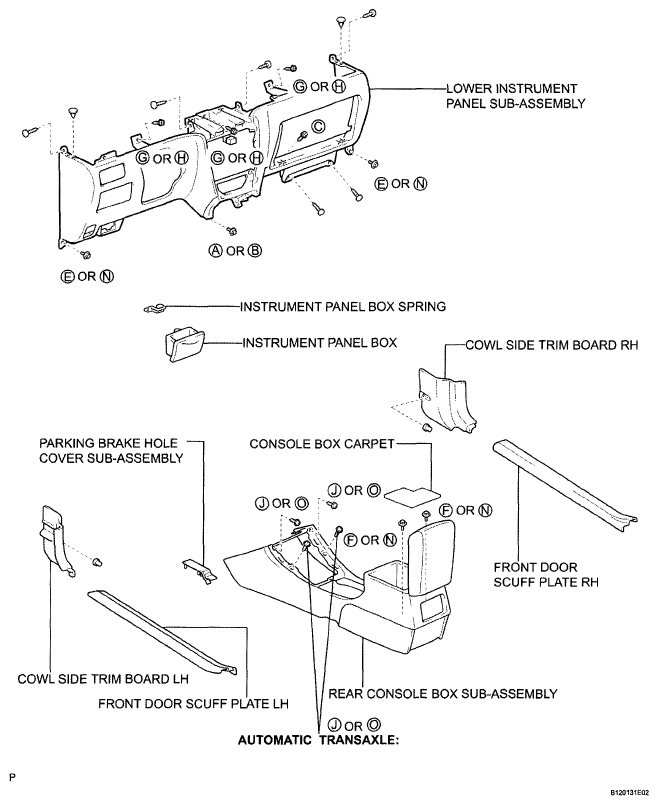

Fig 3: Identifying Instrument Panel Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
