System Diagram

Fig 1: Vehicle Stability Control System - System Diagram (1 Of 2)
G05194839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

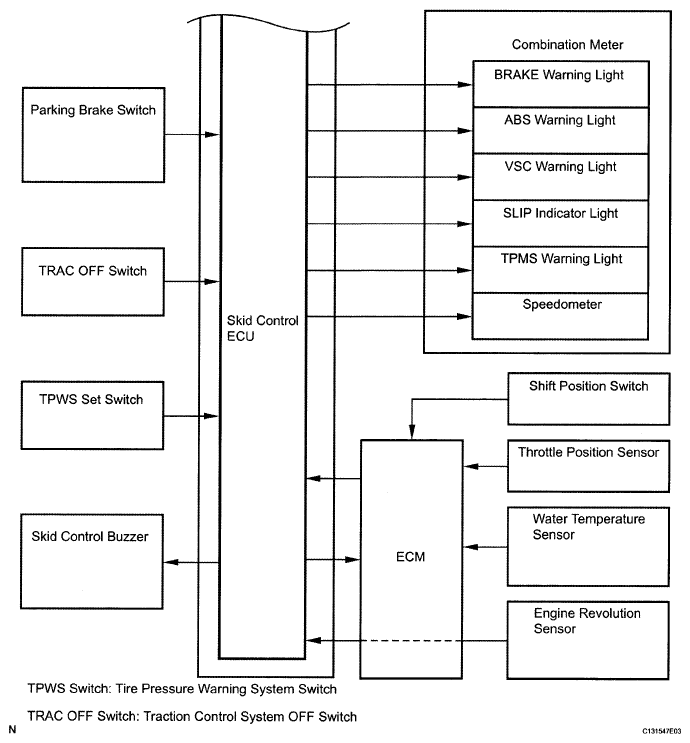

Fig 2: Vehicle Stability Control System - System Diagram (2 Of 2)
G05194840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
