Rear Shock Absorber: Components

Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications (1 Of 2)
G05194676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

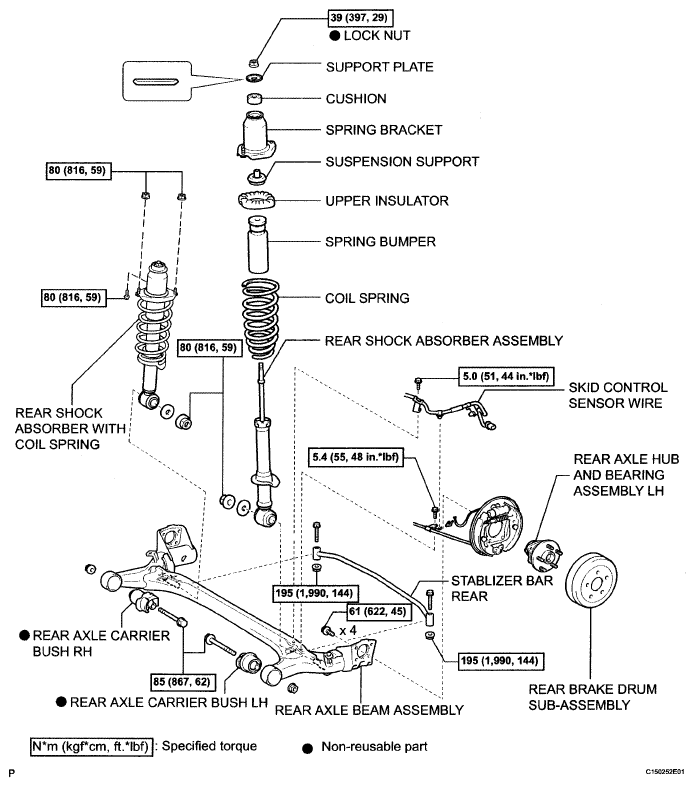

Fig 2: Rear Shock Absorber Replacement Components With Torque Specifications (2 Of 2)
G05194677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
