Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK COURTESY LAMP SWITCH

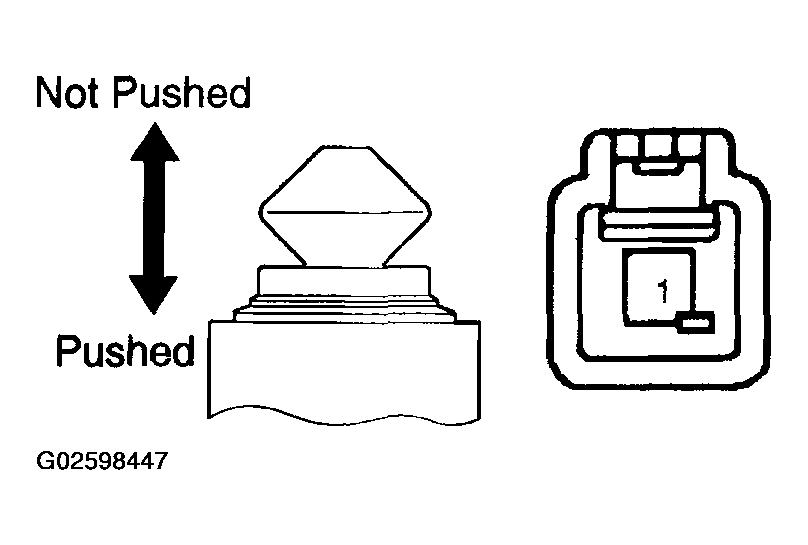

    Fig 1: Checking Courtesy Lamp Switch
    G02598447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the courtesy switch, as shown in the illustration and table.

    Standard:

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Switch Position Specified Condition
    1 - Body ground Pushed Below 1 Ω
    1 - Body ground Not pushed 10 kΩ or higher
    1. NG: REPLACE COURTESY LAMP SWITCH
    2. OK: GO TO NEXT STEP
  2. CHECK WIRE HARNESS (INTEGRATION RELAY - DOOR COURTESY SWITCH)

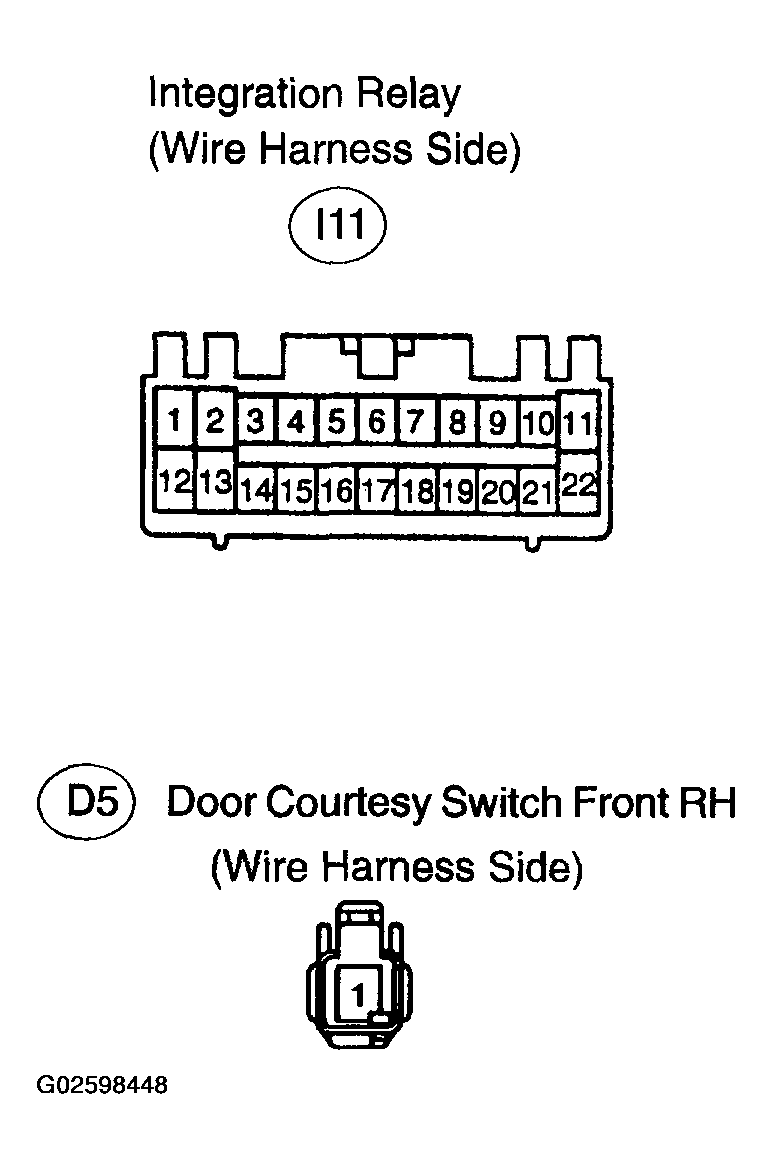

    Fig 2: Checking Wire Harness
    G02598448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the integration relay and door courtesy connectors.
    2. Check the resistance between the terminals of the integration relay and door courtesy switch connectors, as shown in the illustration and table.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      I11-13 - D5-1 Below 1 Ω

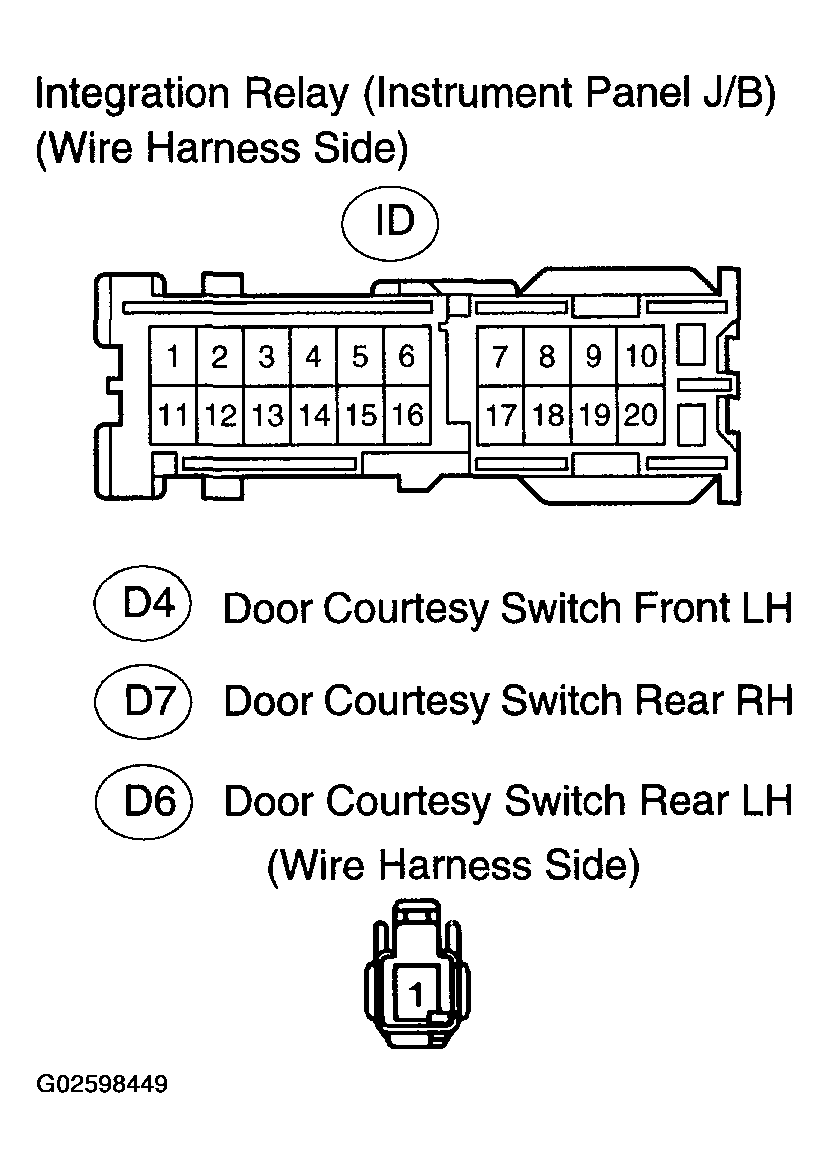

      Fig 3: Identifying Connector
      G02598449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the each door courtesy switch connectors.
    4. Check the resistance between the terminals of the integration relay and door courtesy switch connectors, as shown in the illustration and table.

    Standard:

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    ID-1 - D4-1 Below 1 Ω
    ID-15-D7-1 Below 1 Ω
    ID-14-D6-1 Below 1 Ω
    1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
    2. OK: GO TO NEXT STEP
  3. CHECK WIRE HARNESS (TVIP ECU - LUGGAGE COMPARTMENT LIGHT SWITCH)

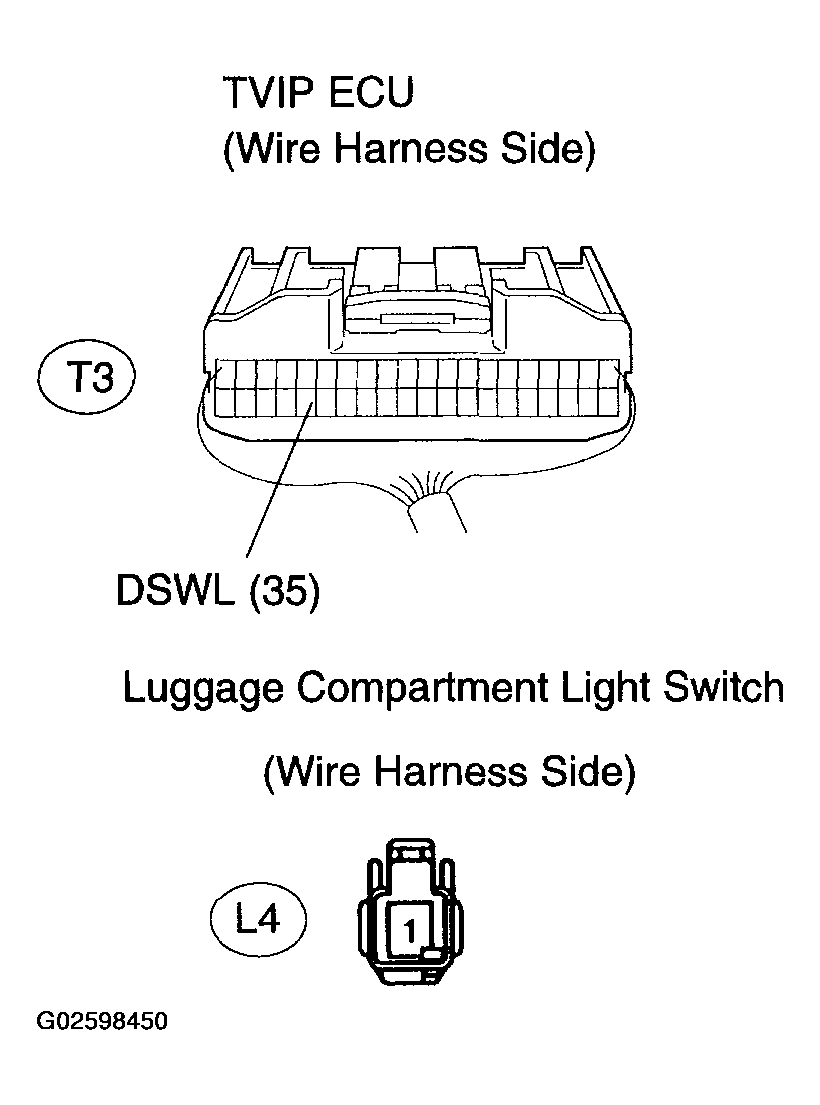

    Fig 4: Checking Wire Harness
    G02598450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the TVIP ECU and luggage comportment light switch connectors.
    2. Check the resistance between the terminals of the TVIP ECU and luggage compartment light switch connectors, as shown in the illustration and table.

    Standard:

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Specified Condition
    DSWL (T3-35)-L4-1 Below 1 Ω
    1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
    2. OK: GO TO NEXT STEP

    PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
