Rear Shock Absorber: Components

Fig 1: Identifying Rear Shock Absorber Components (1 Of 4)
G05130712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Rear Shock Absorber Replacement Components With Torque Specifications (2 Of 4)
G05130713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Rear Shock Absorber Components (3 Of 4)
G05130714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

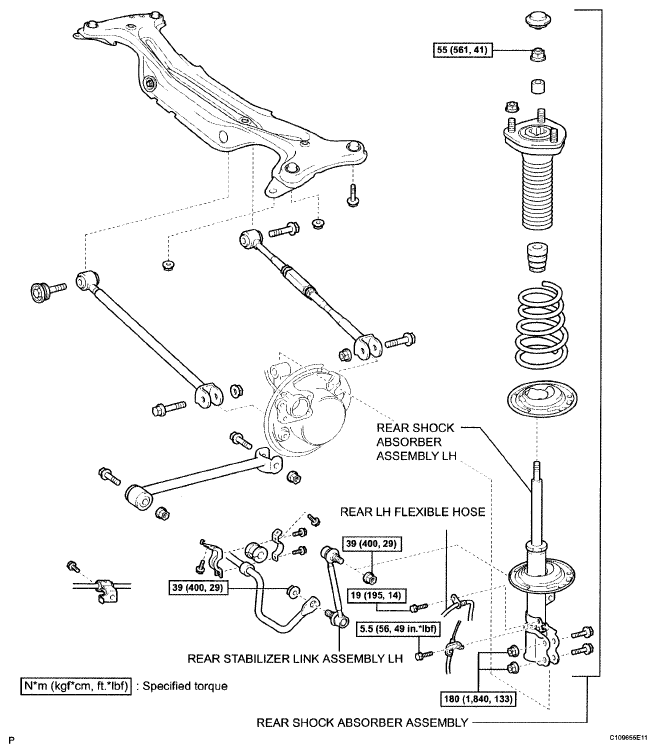

Fig 4: Rear Shock Absorber Replacement Components With Torque Specifications (4 Of 4)
G05130715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
