Parts Location

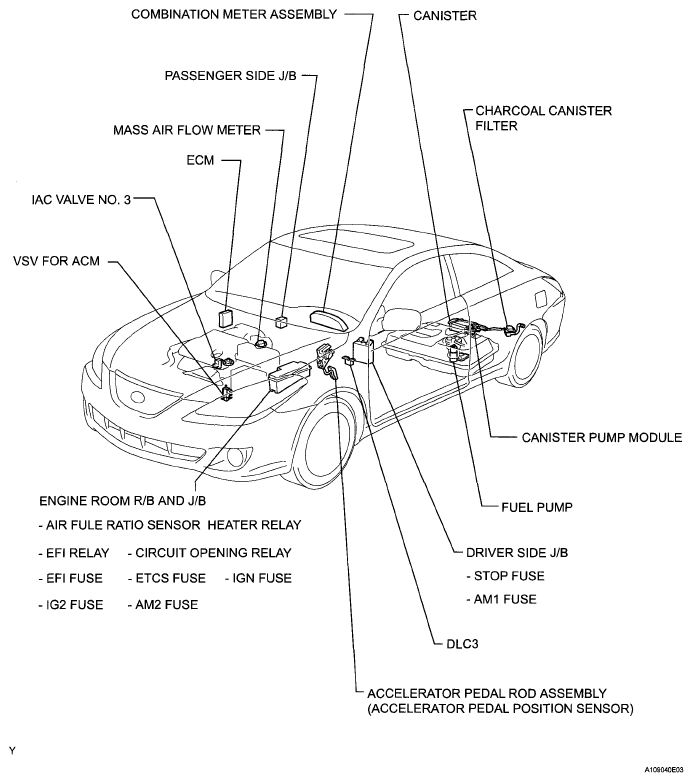

Fig 1: Identifying SFI System Components Location (1 Of 2)
G05128352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

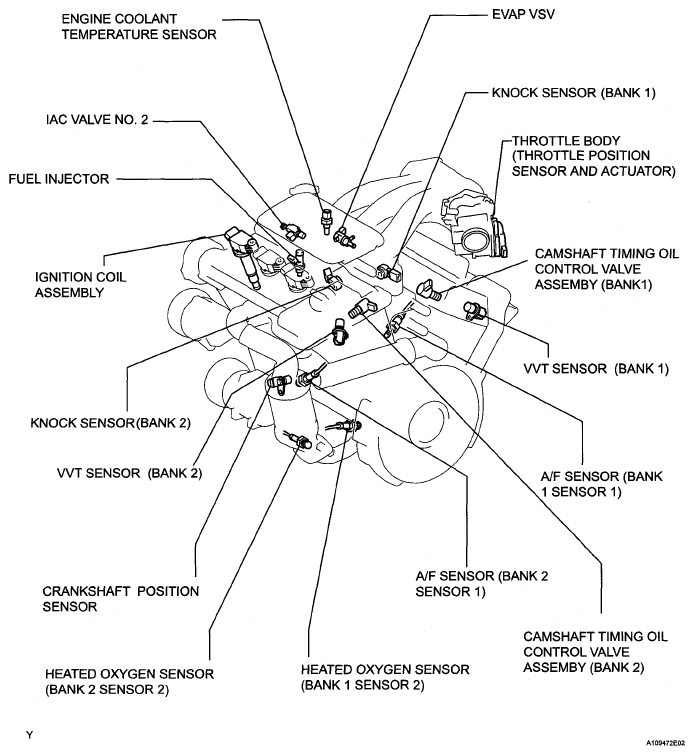

Fig 2: Identifying SFI System Components Location (2 Of 2)
G05128353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
