System Diagram

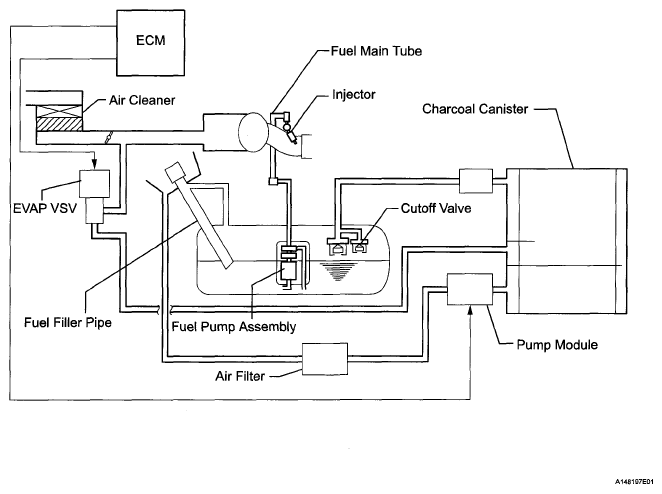

Fig 1: Fuel System Diagram
G05134392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The fuel system is controlled by the ECM based on intake air flow amount.

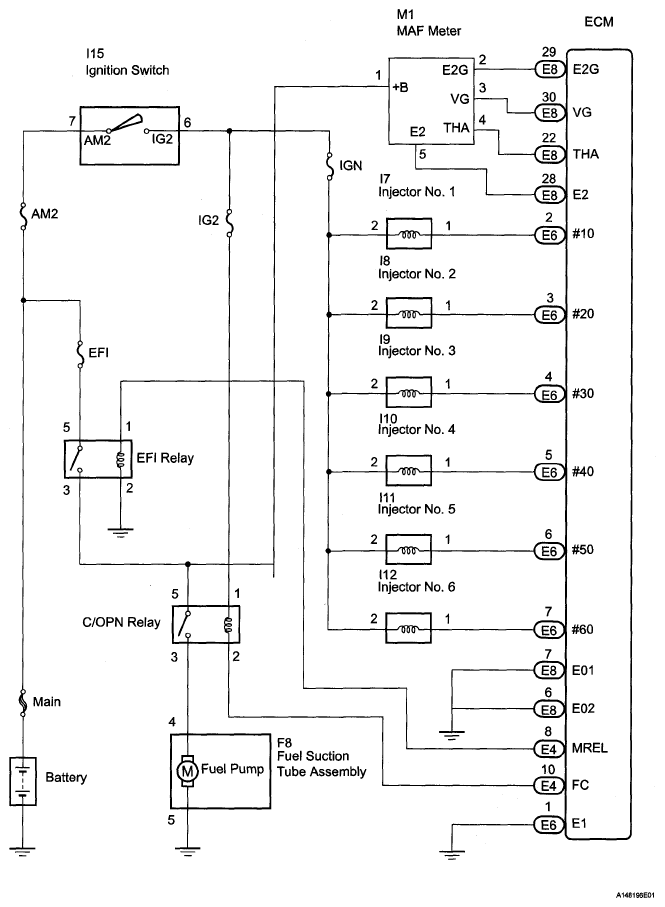

Fig 2: Fuel System Circuit Diagram
G05134485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
