Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

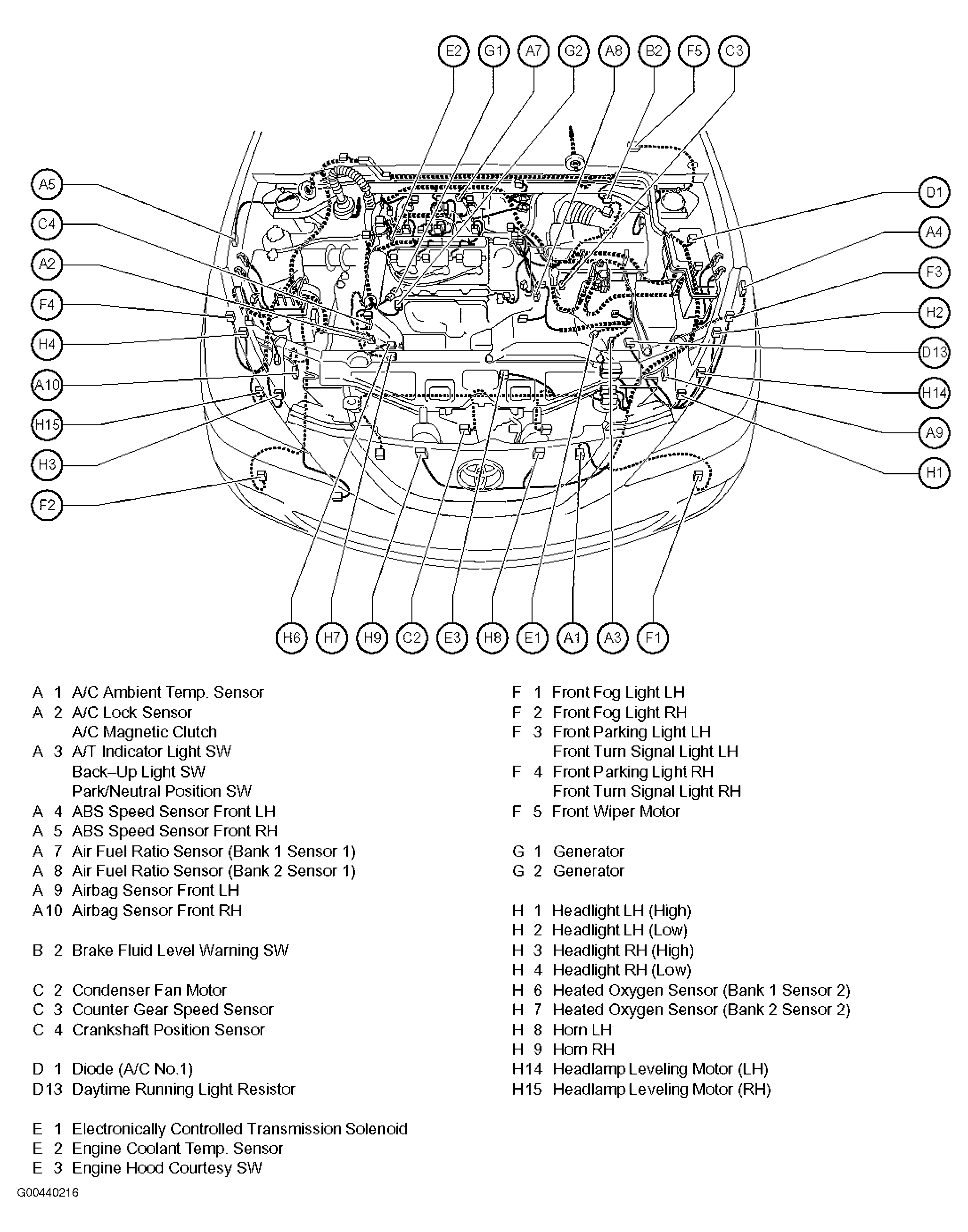

Fig 1: Engine Compartment (3.3L)

G00440216

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

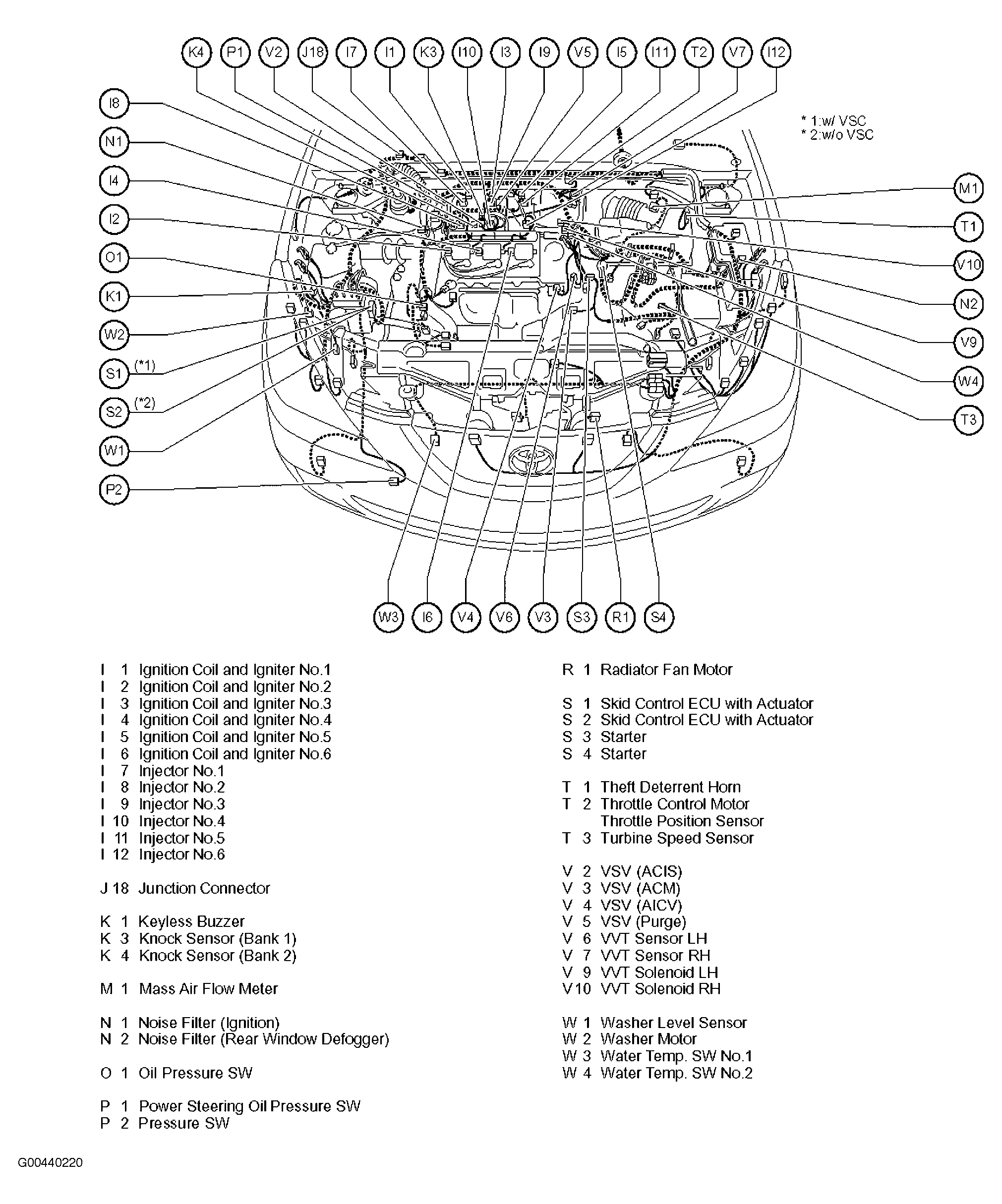

Fig 2: Engine Compartment (3.3L)

G00440220

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

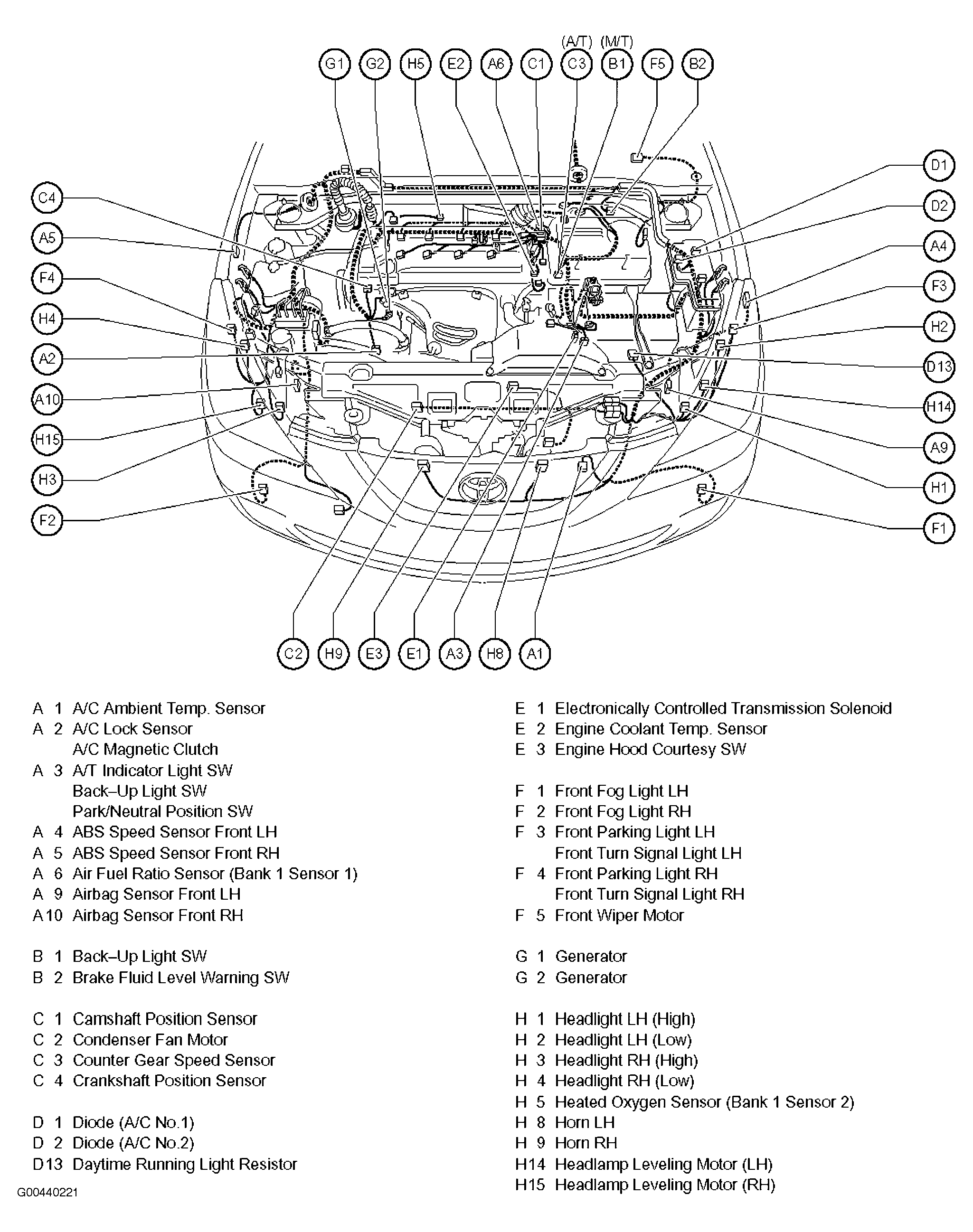

Fig 3: Engine Compartment (2.4L)

G00440221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

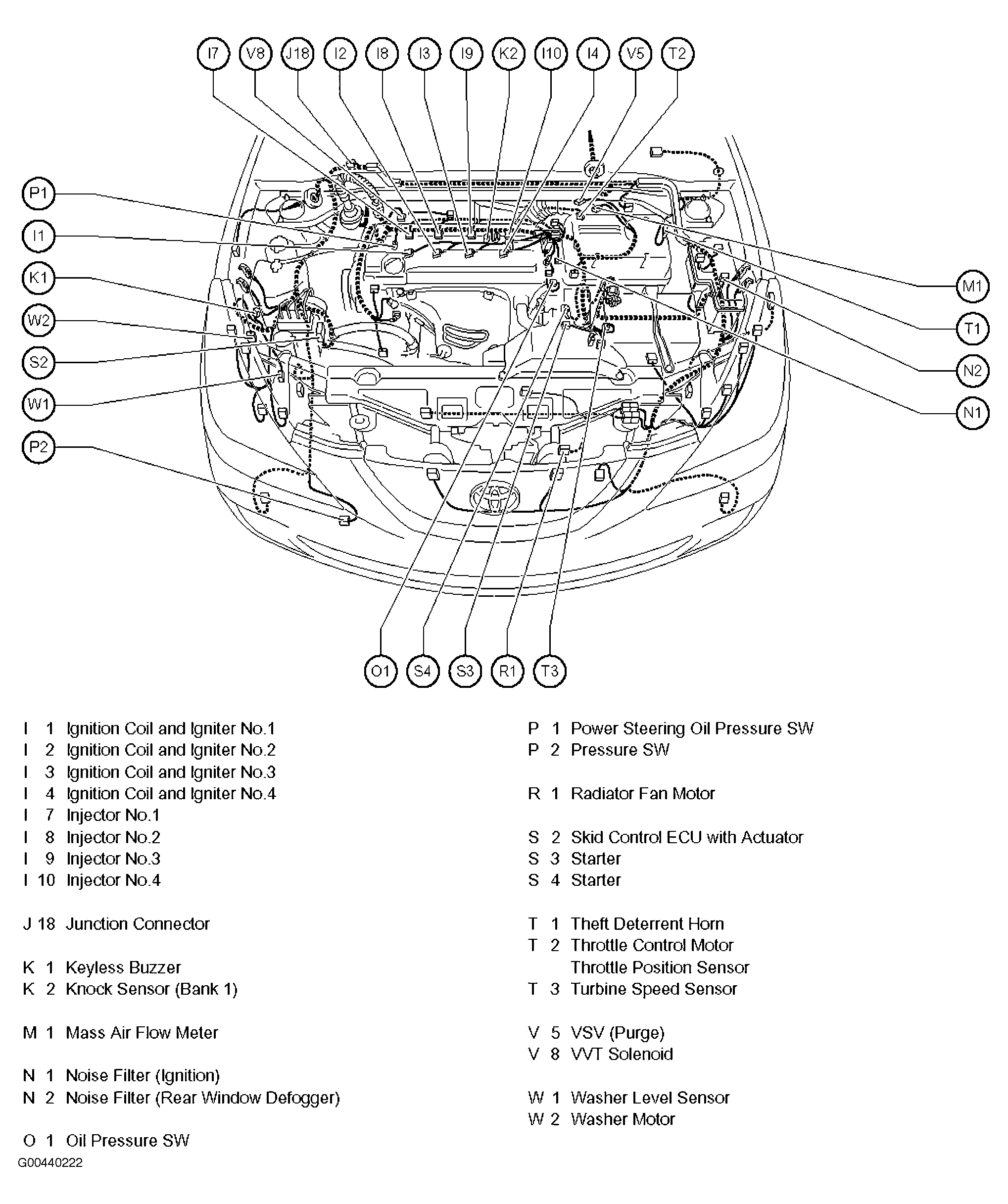

Fig 4: Engine Compartment (2.4L)

G00440222

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

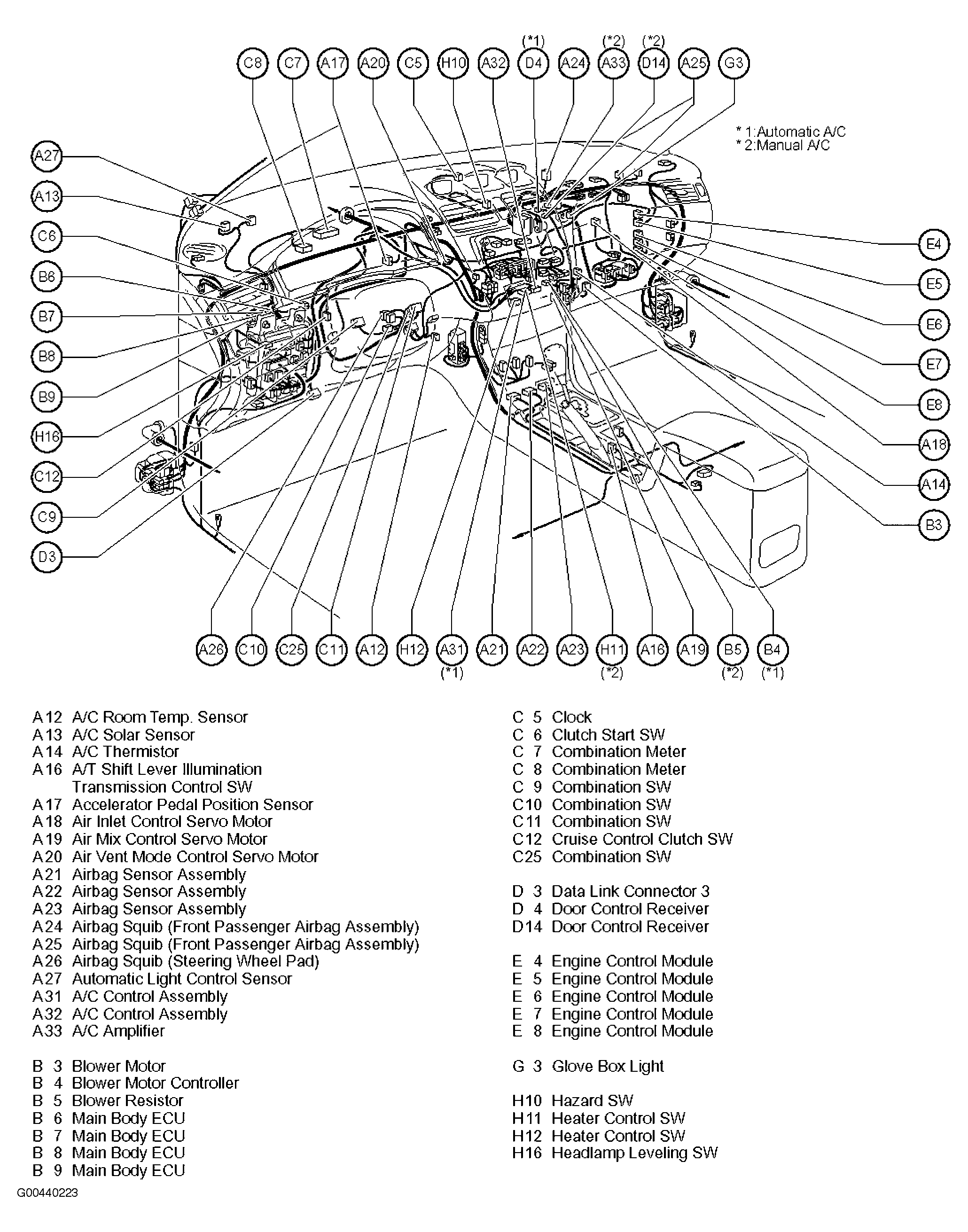

Fig 5: Dash & Center Console (Coupe)

G00440223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

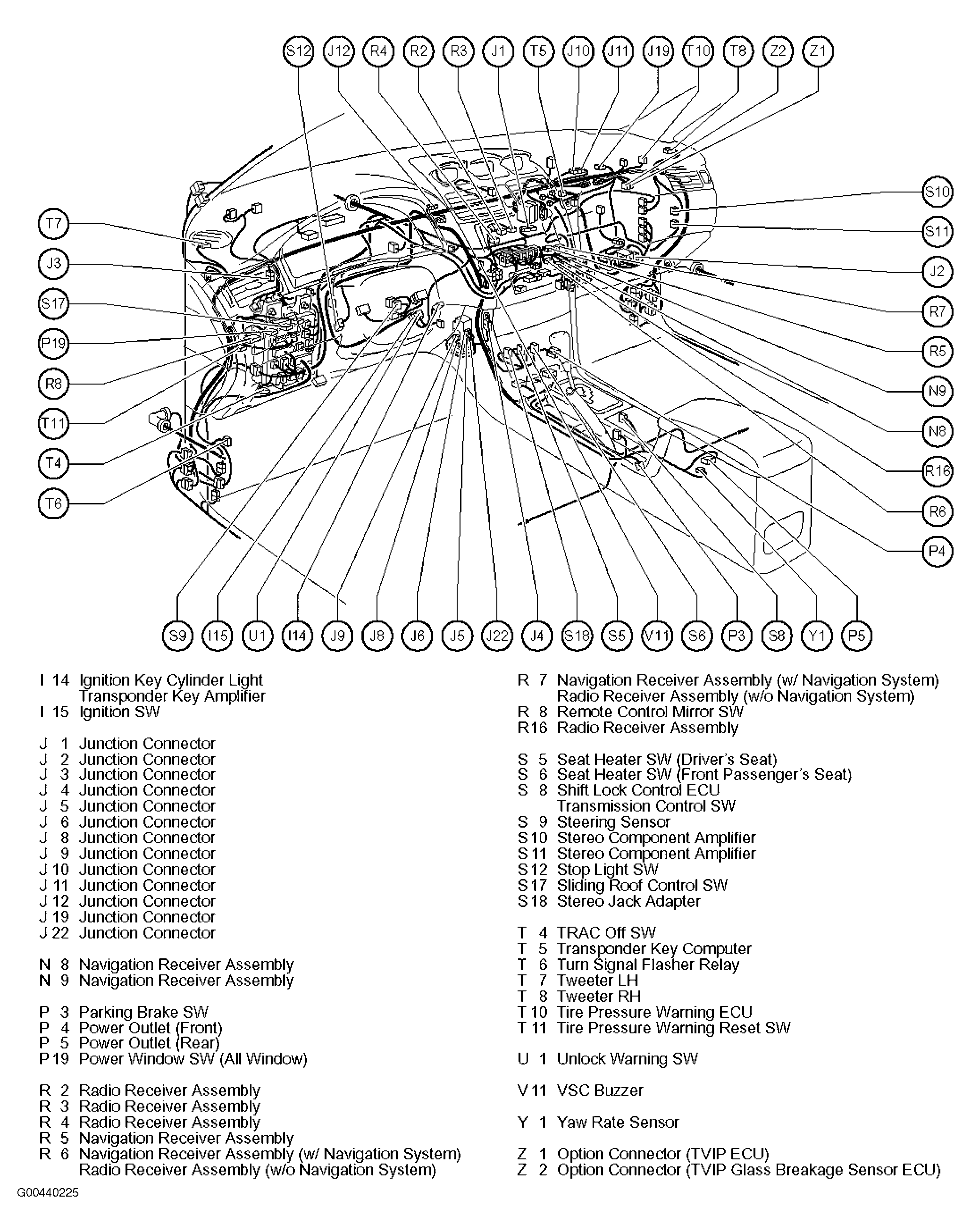

Fig 6: Dash & Center Console (Convertible)

G00440225

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

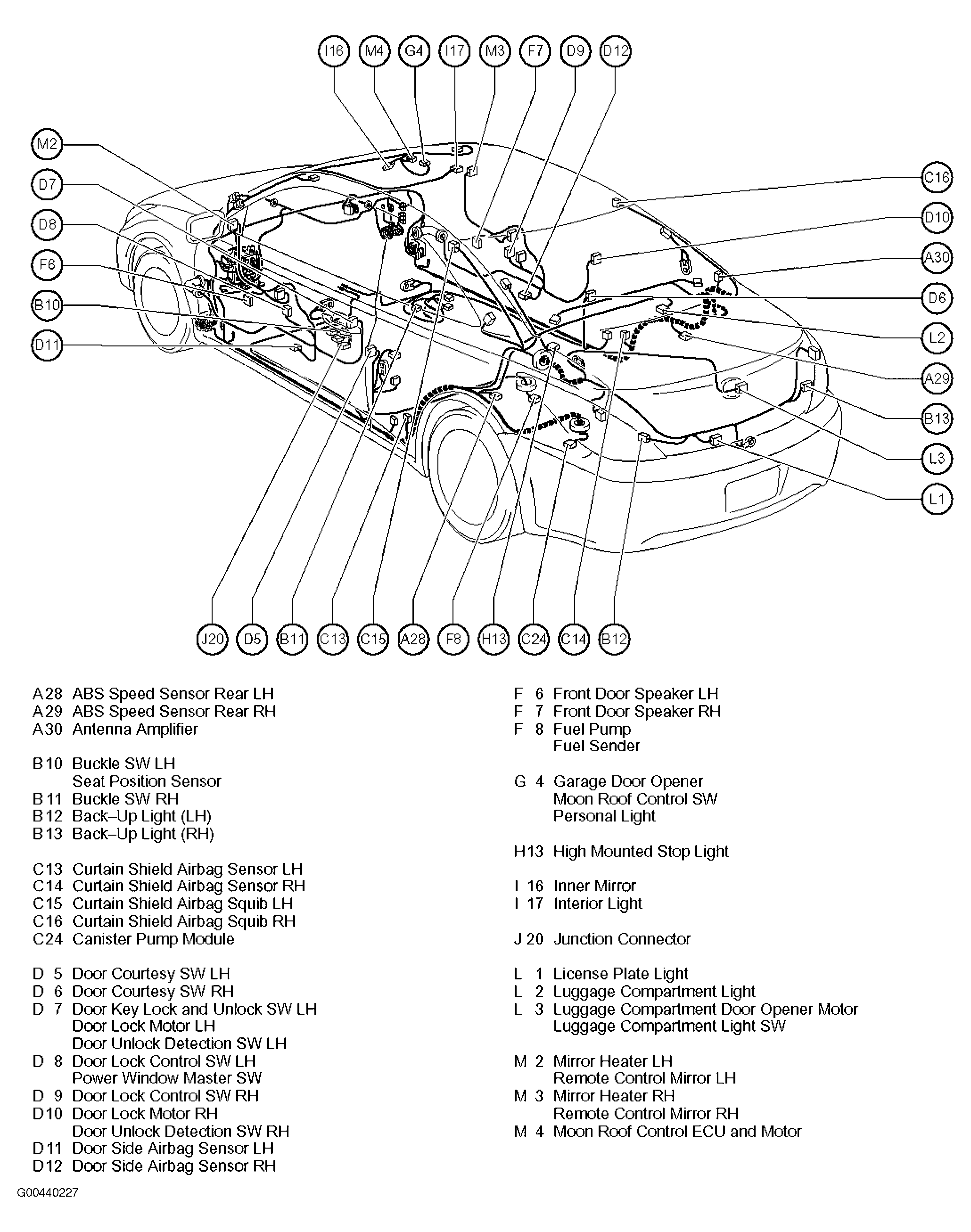

Fig 7: Vehicle Overview (Coupe)

G00440227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

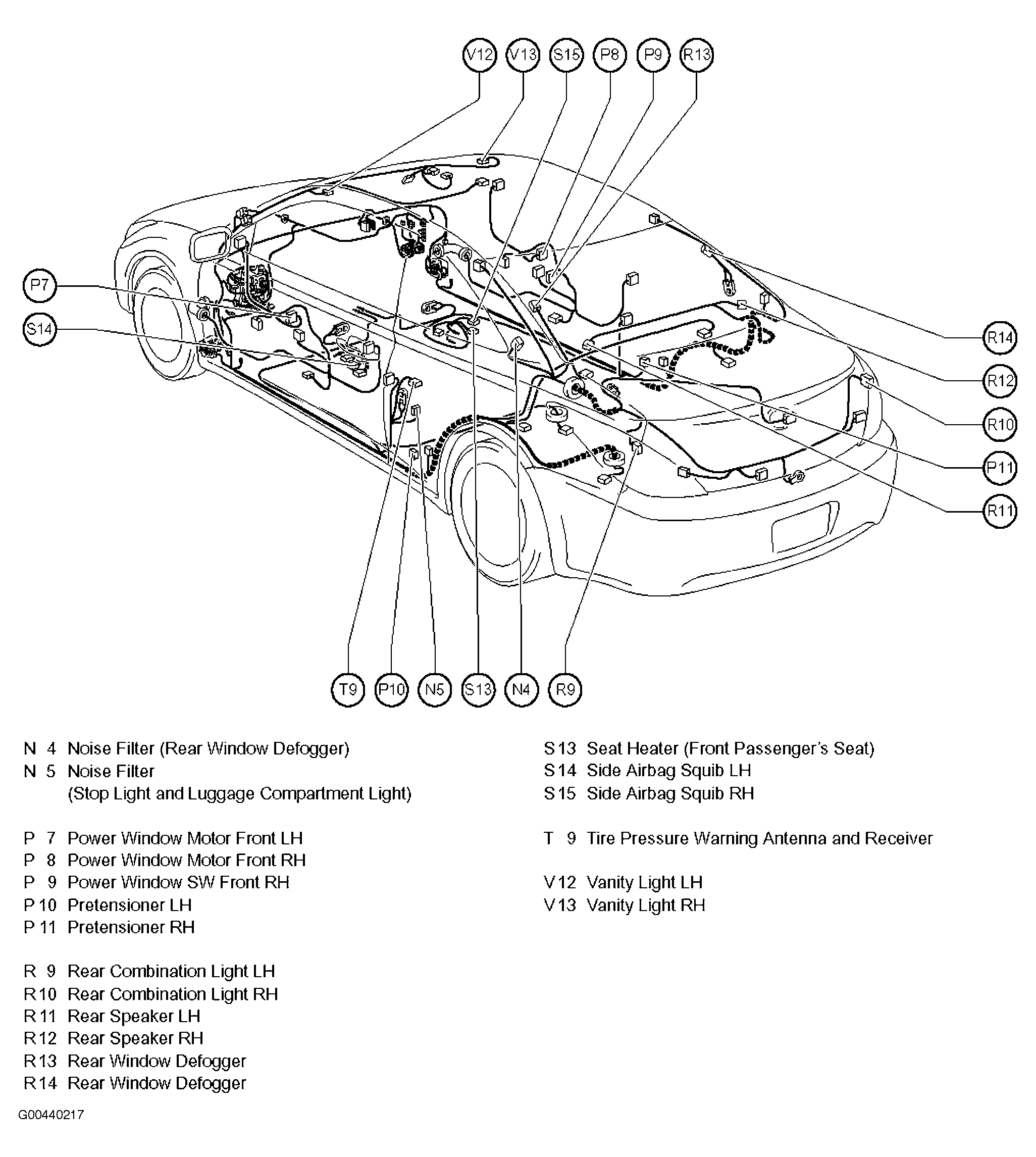

Fig 8: Vehicle Overview (Coupe)

G00440217

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

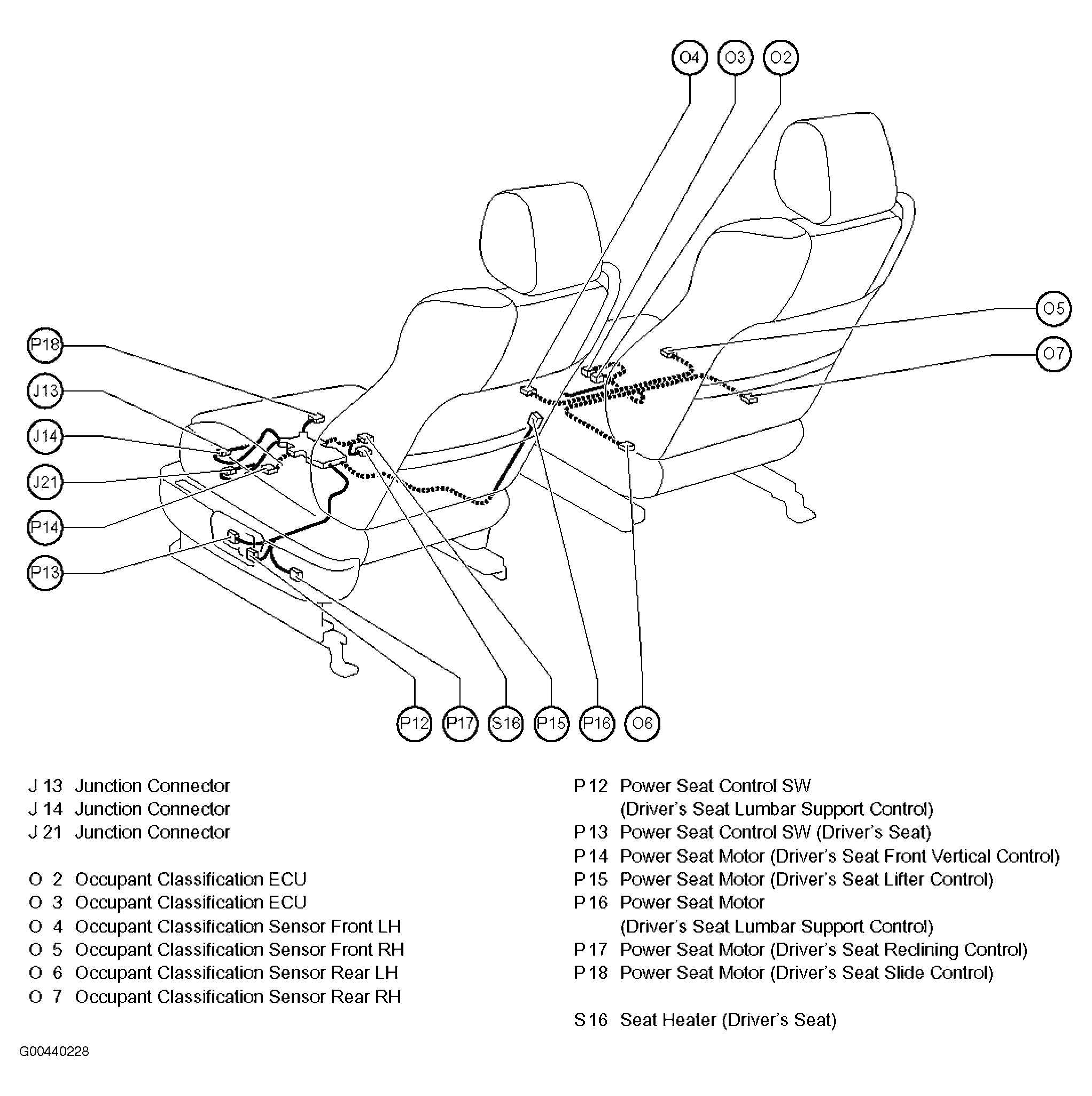

Fig 9: Front Seats

G00440228

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Compartment Grounds (3.3L)

G00257799

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Compartment Grounds (2.4L)

G00257800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

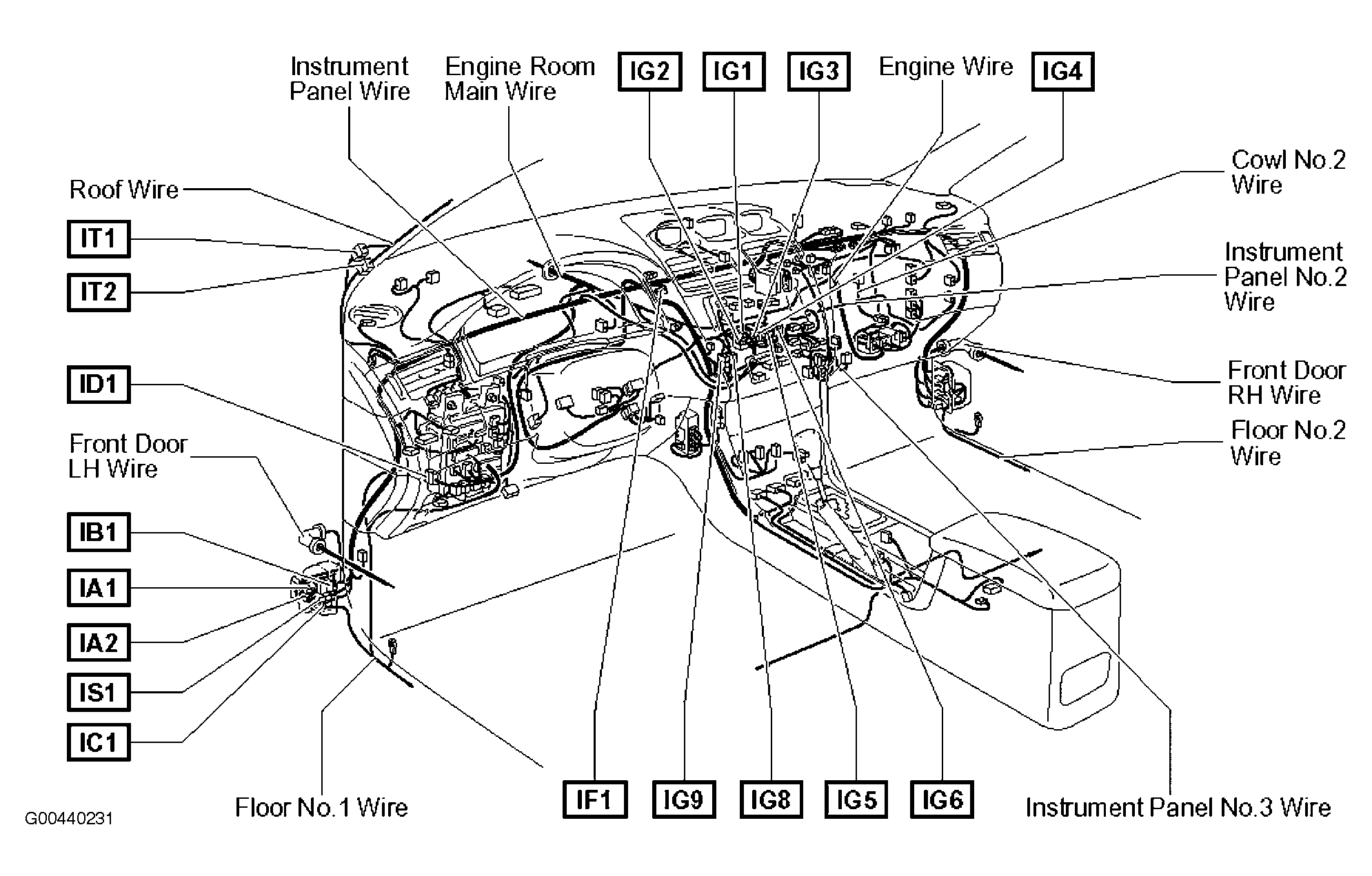

Fig 12: Dash & Center Console (Coupe)

G00440231

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

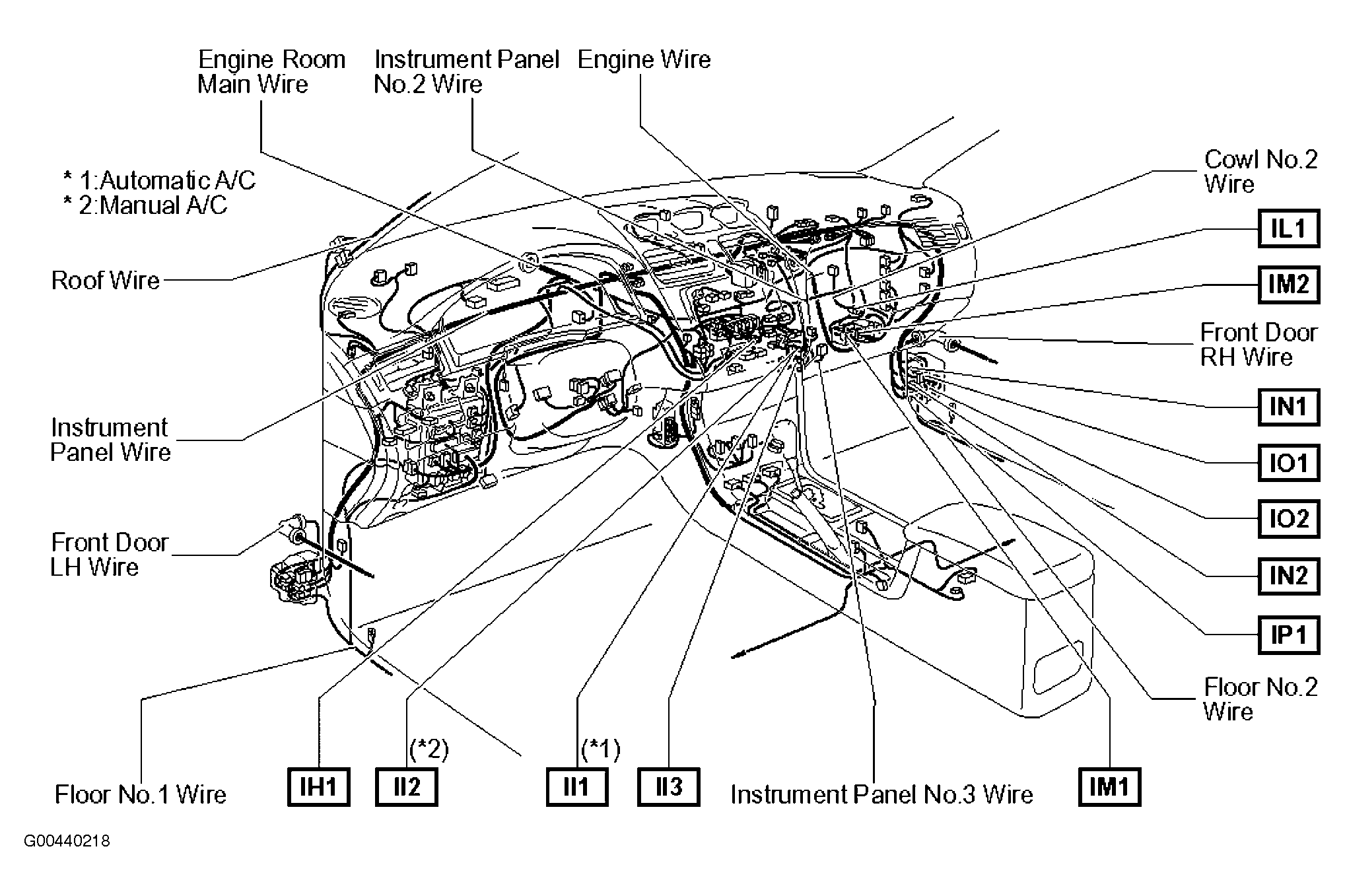

Fig 13: Dash & Center Console (Coupe)

G00440218

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Vehicle Overview (Coupe)

G00257803

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Engine Compartment

G00262668

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

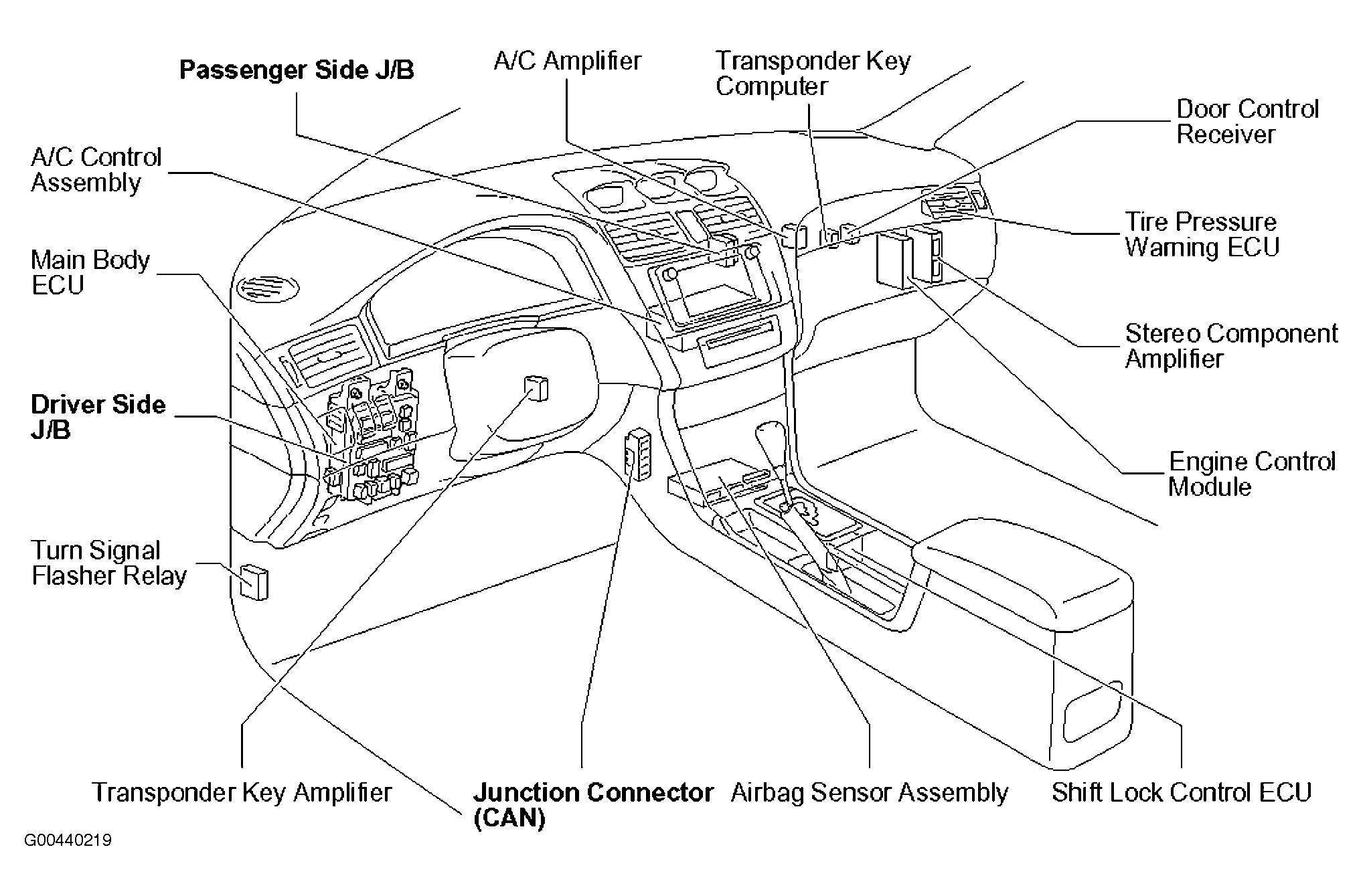

Fig 16: Dash & Center Console

G00440219

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
Turn Signal Flasher Relay

Fig 17: Engine Room R/B

G00262670

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
DRL No.4 Relay
DRL No.2 Relay
Fan No.3 Relay
DRL No.3 Relay
MG CLT Relay
A/F HTR Relay
Fan No.2 Relay
ST Relay
HTR Relay
DEF Relay

Fig 18: VSC R/B

G00262671

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

VSC RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
ABS MTR Relay
ABS CUT Relay

Fig 19: Engine Room J/B

G00262672

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Head Relay
Fan No.1 Relay
C/OPN Relay
Horn Relay
EFI Relay

Fig 20: Driver Side J/B

G00262673

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
IG1 Relay
PWR Relay
ACC Relay
Tail Relay
Fog Relay

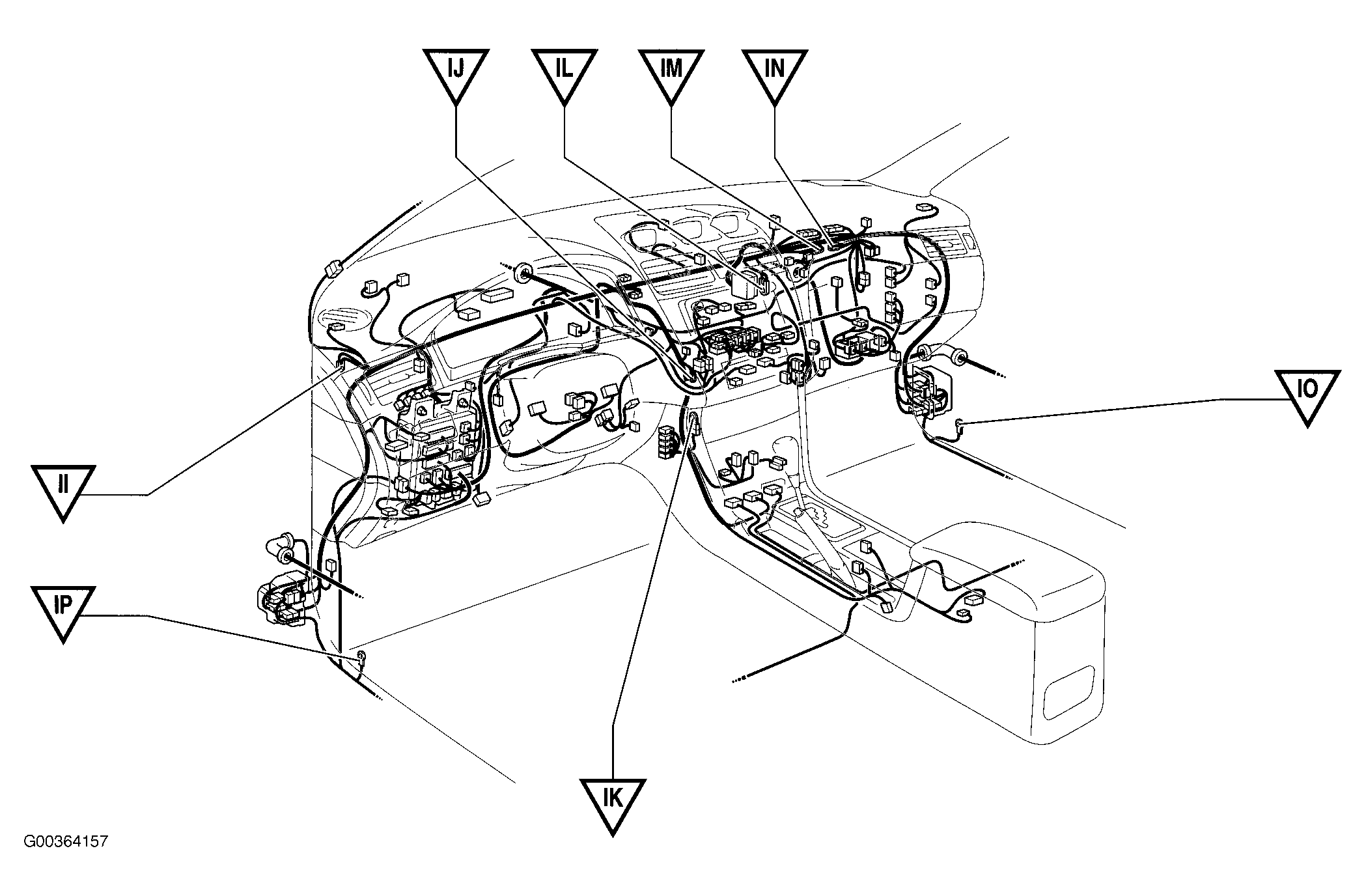

Fig 21: Dash & Center Console (Coupe)

G00364157

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

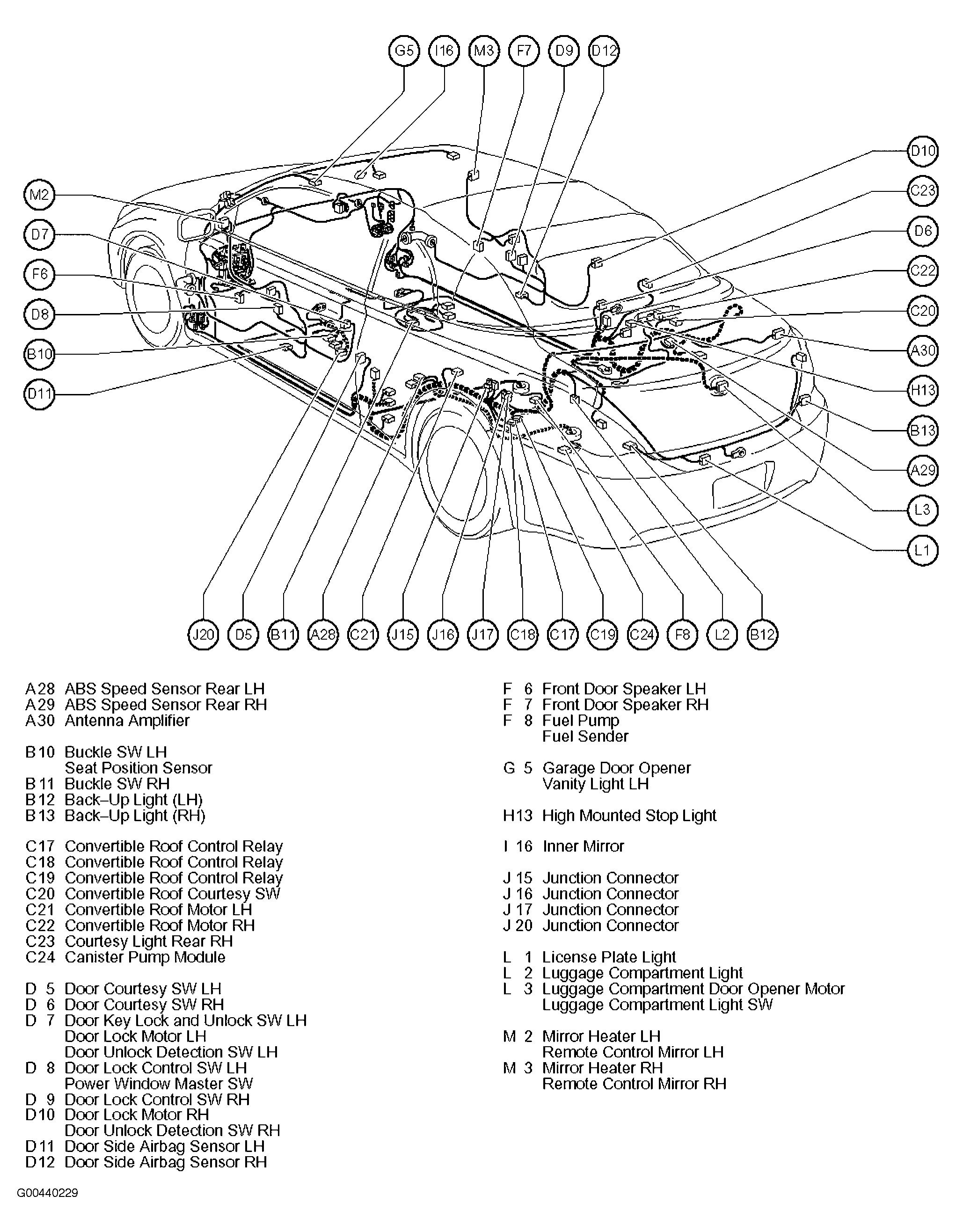

Fig 22: Vehicle Overview (Convertible)

G00440229

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

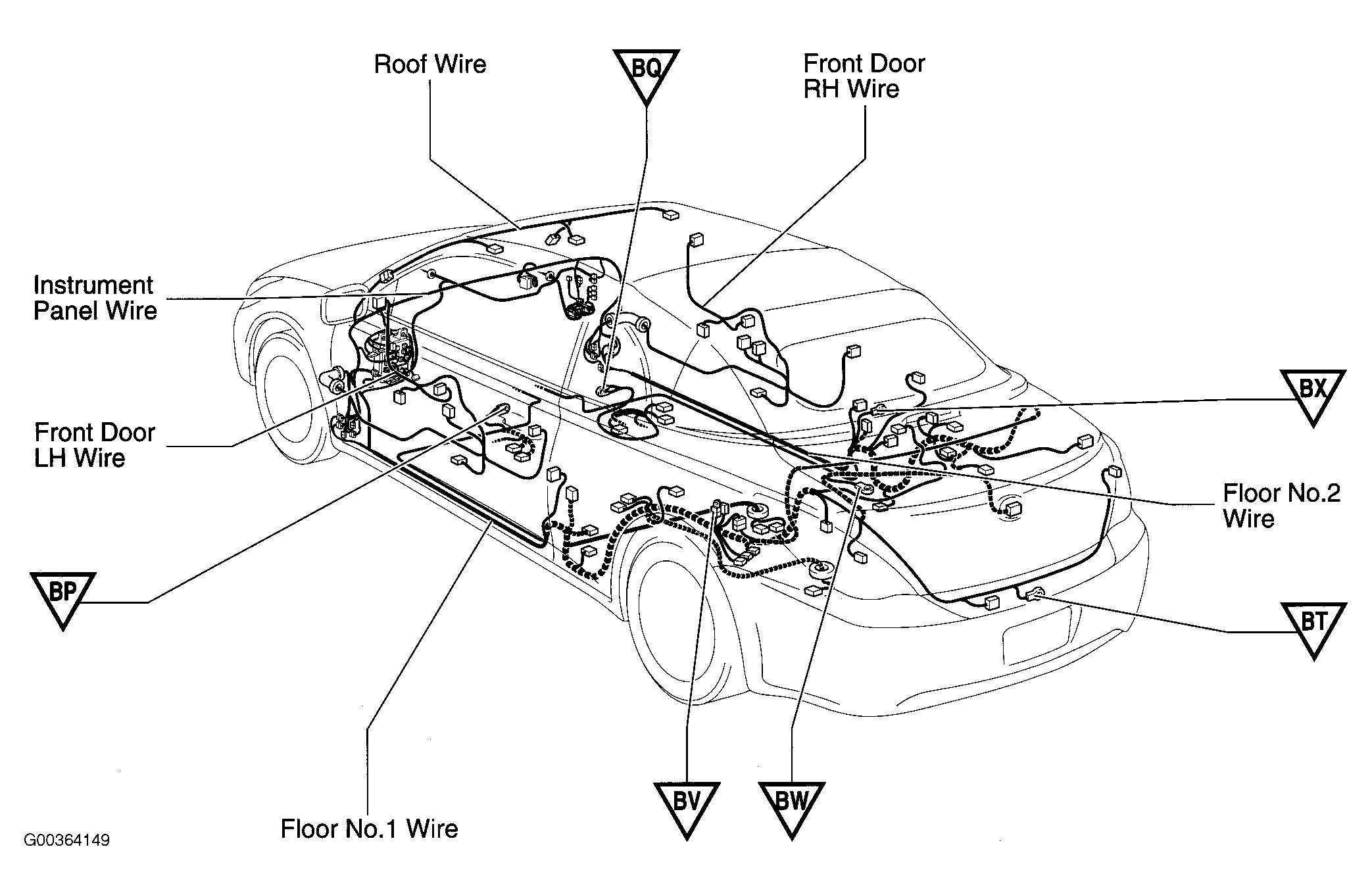

Fig 23: Vehicle Overview (Convertible)

G00364149

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

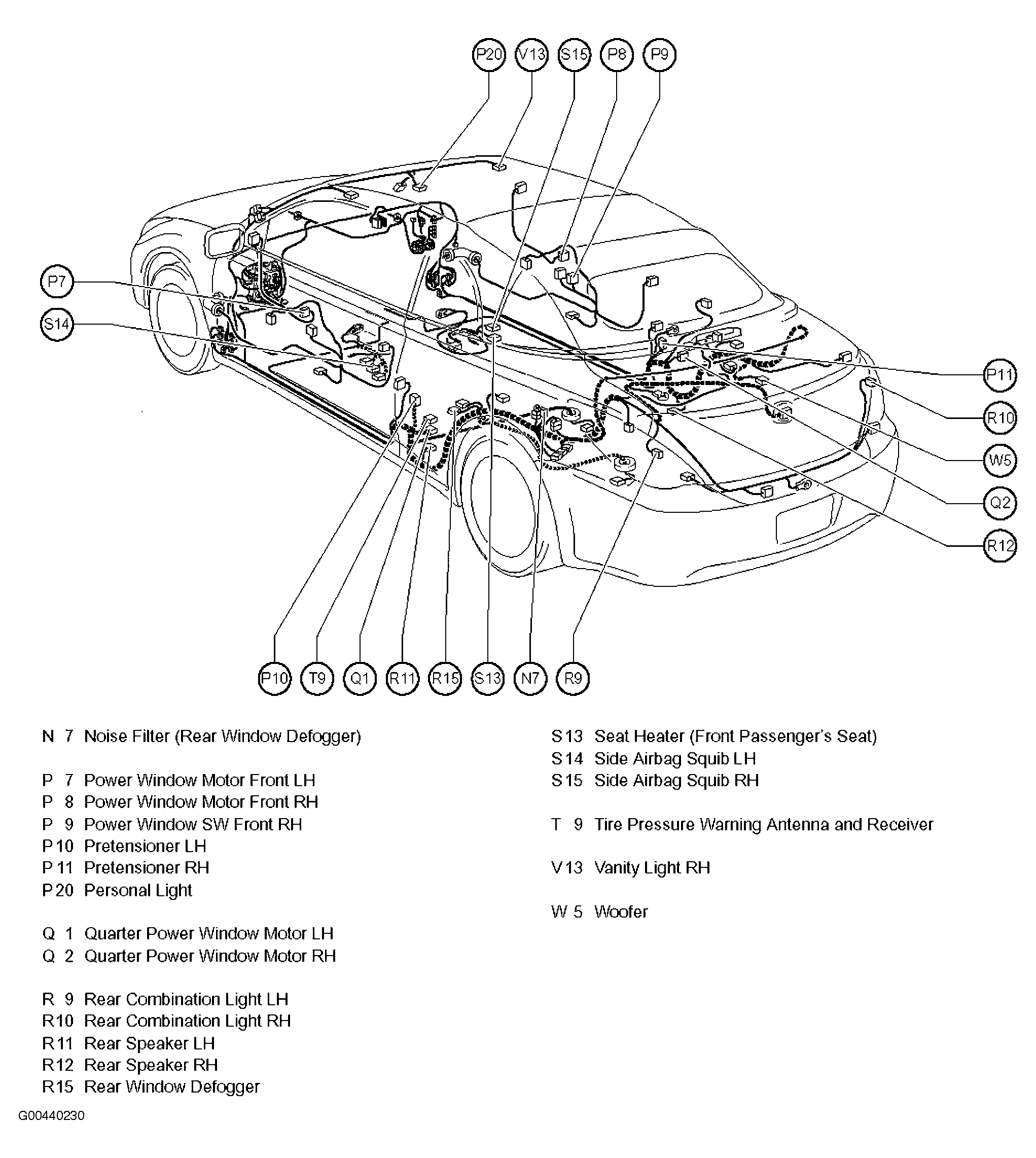

Fig 24: Vehicle Overview (Convertible)

G00440230

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

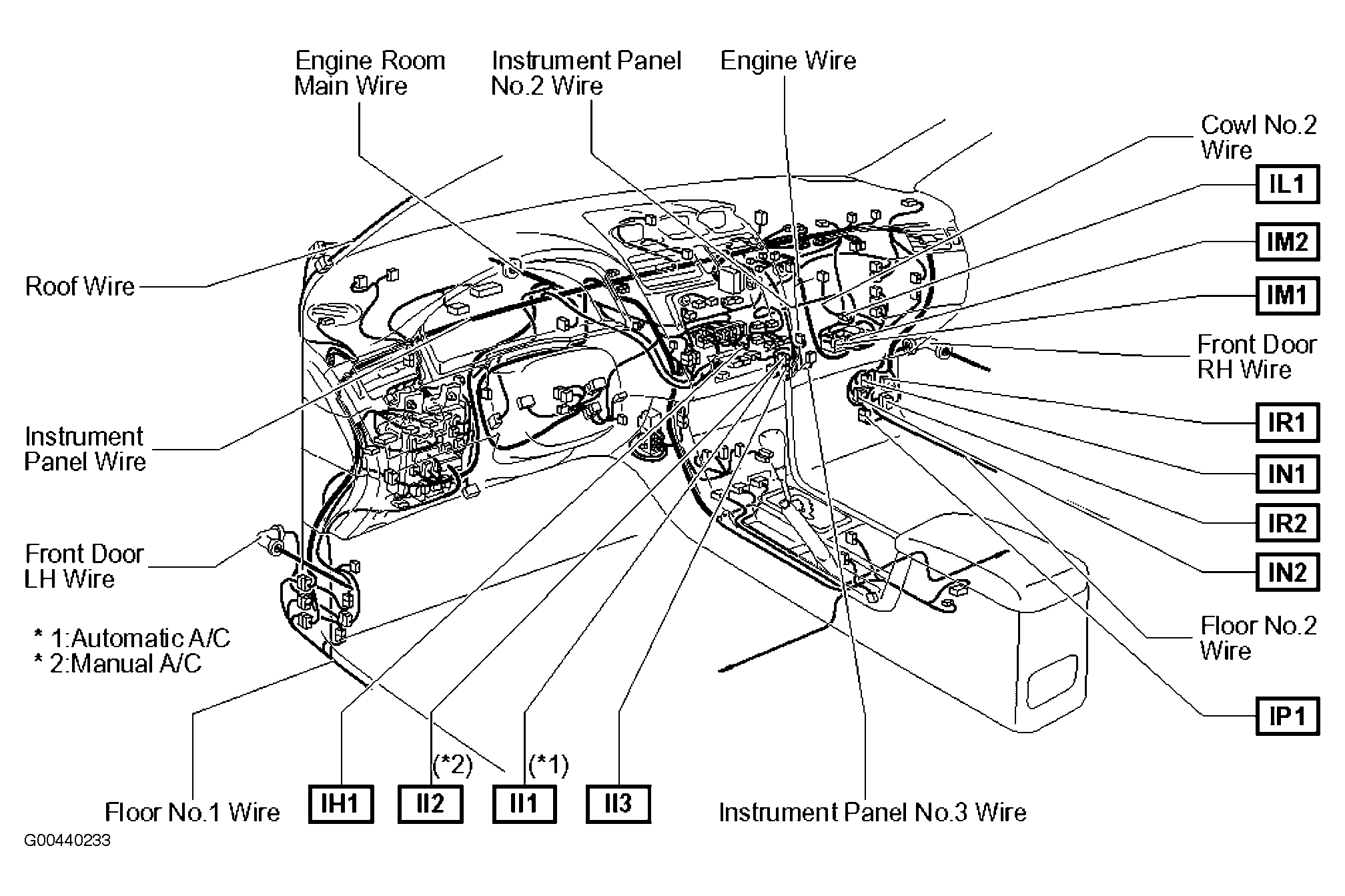

Fig 25: Dash & Center Console (Convertible)

G00440233

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

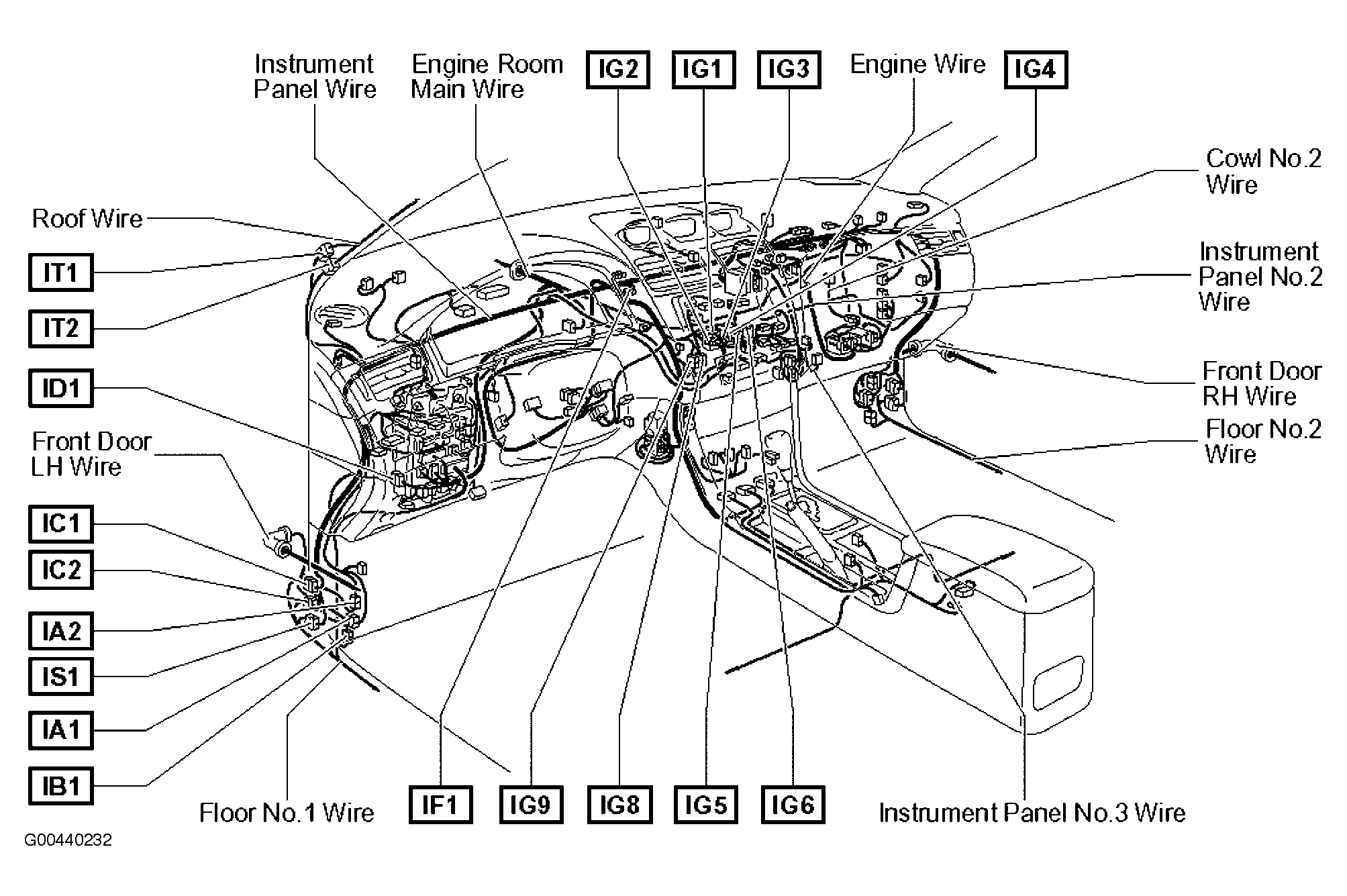

Fig 26: Dash & Center Console (Convertible)

G00440232

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

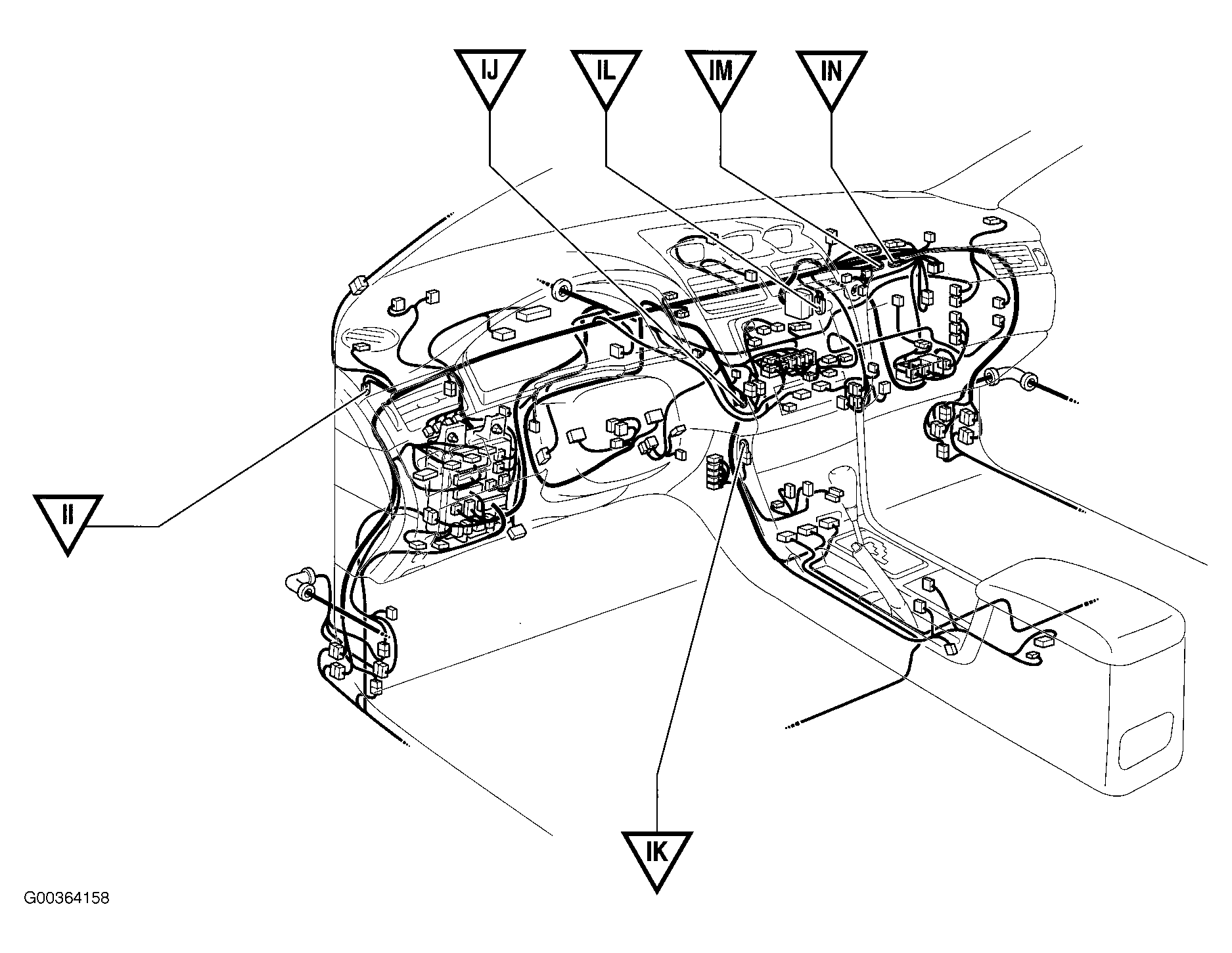

Fig 27: Dash & Center Console (Convertible)

G00364158

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

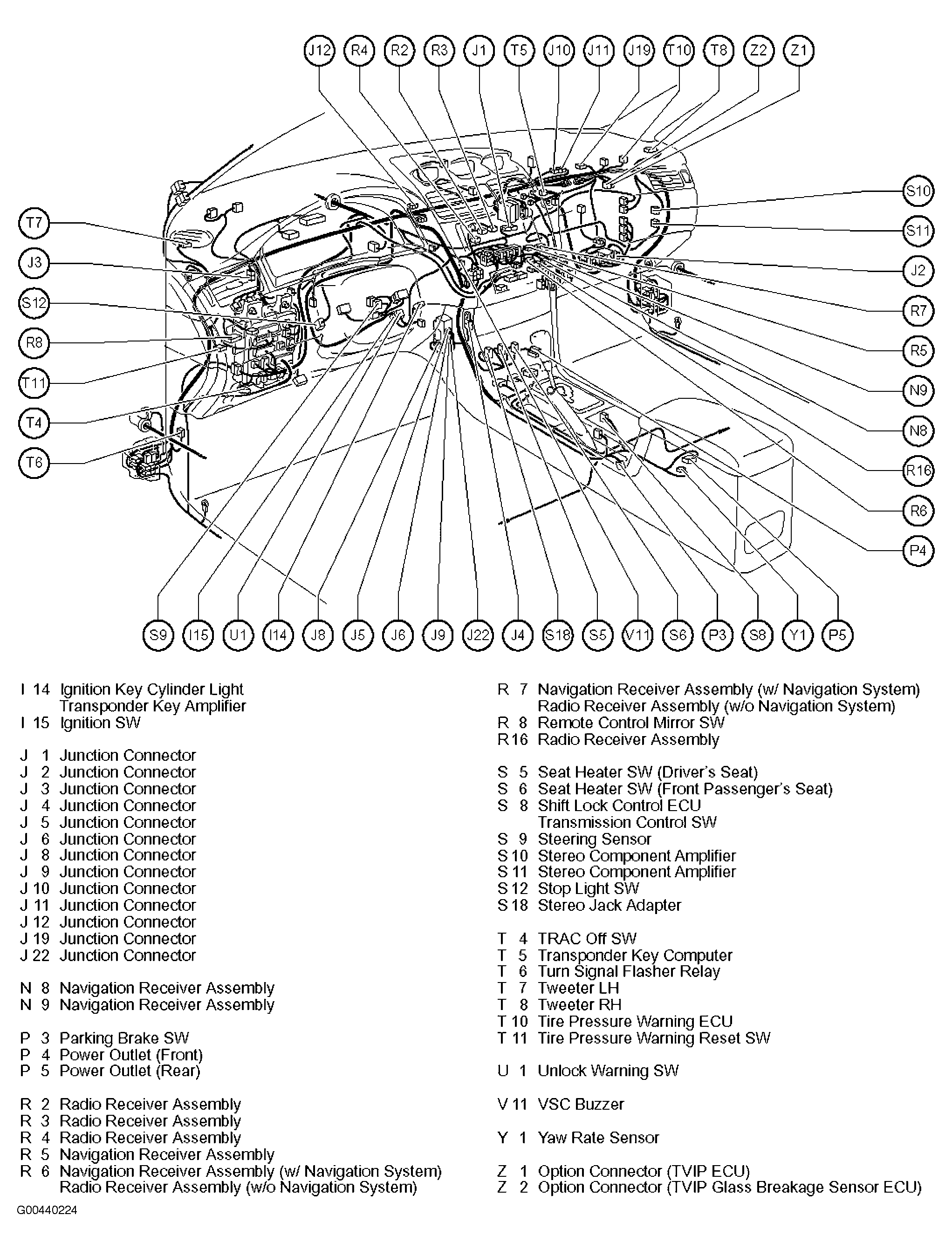

Fig 28: Dash & Center Console (Coupe)

G00440224

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

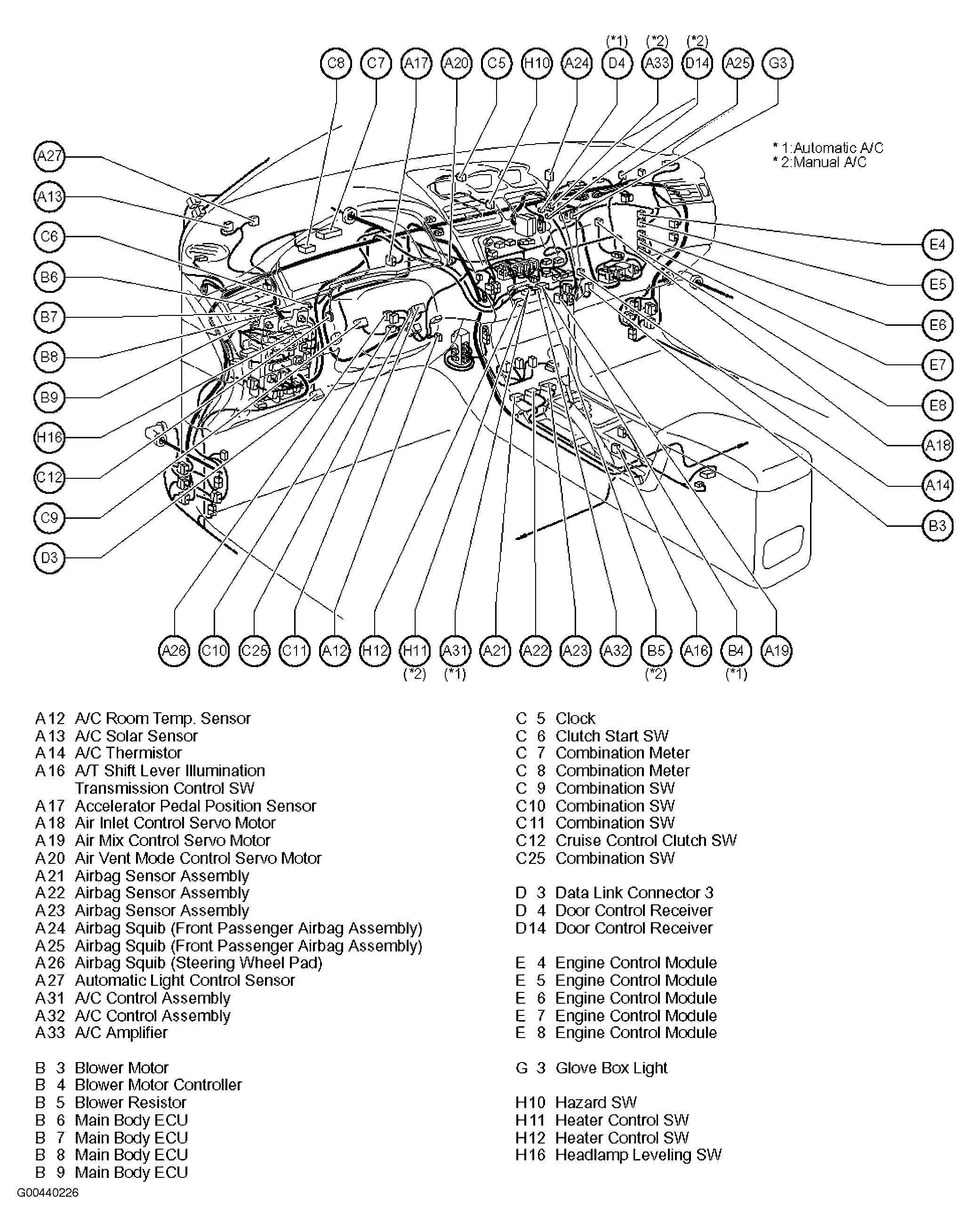

Fig 29: Dash & Center Console (Convertible)

G00440226

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
