Home >> Toyota >> 2007 >> Camry Solara SLE, 2D Convertible >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/Window Glass >> Window Defogger System >> Parts Location

Parts Location

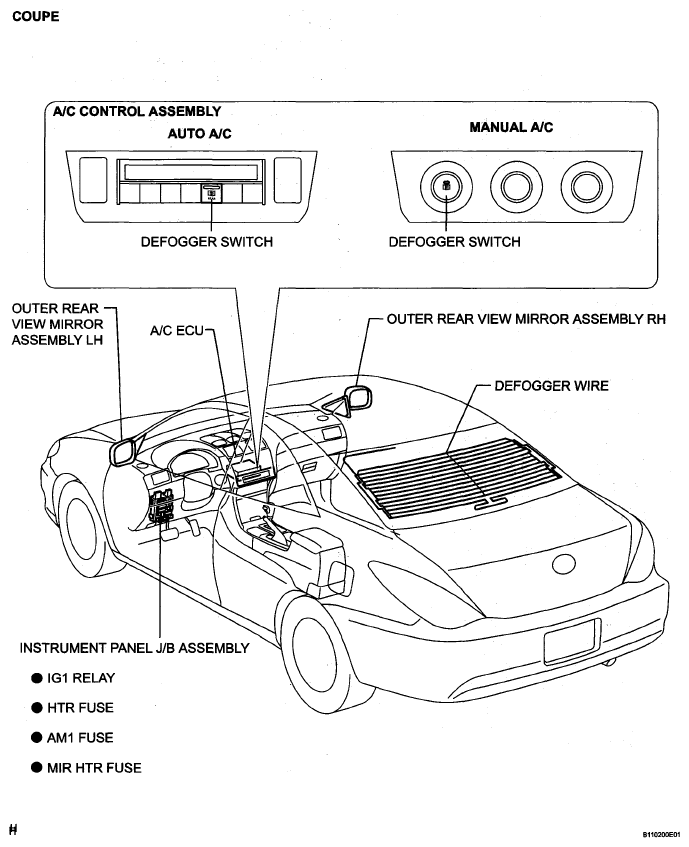

Fig 1: Identifying Window Defogger Components Location (1 Of 3)
G05132605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

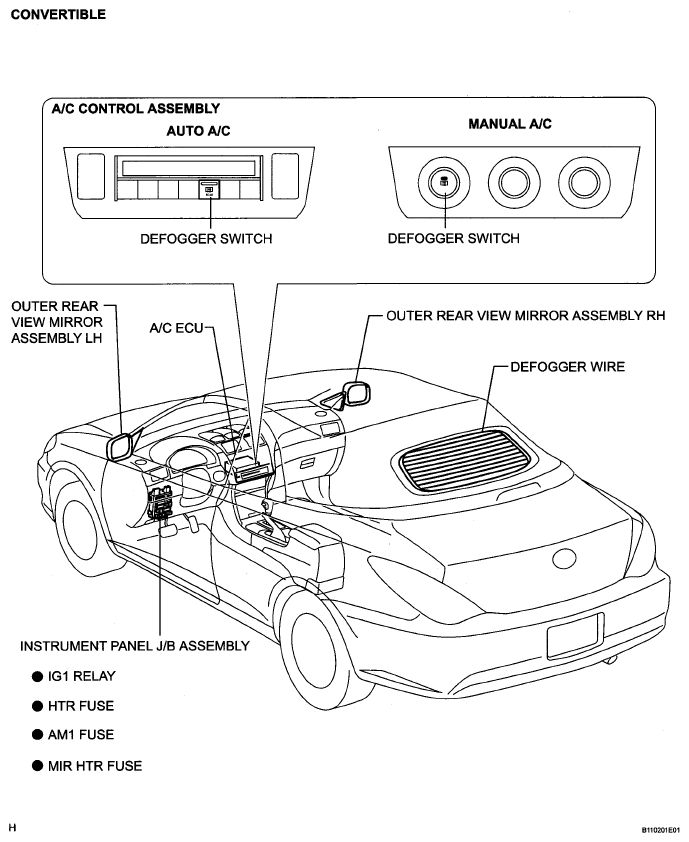

Fig 2: Identifying Window Defogger Components Location (2 Of 3)
G05132606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

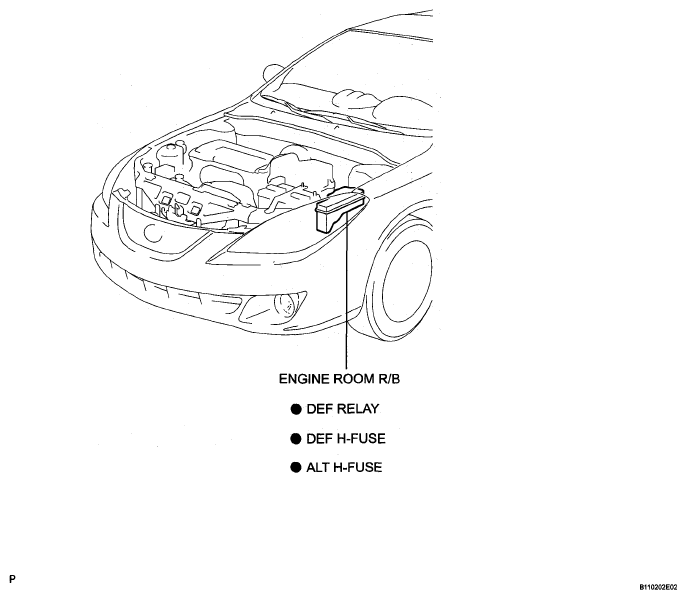

Fig 3: Identifying Window Defogger Components Location (3 Of 3)
G05132607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
