Fuel Tank: Components

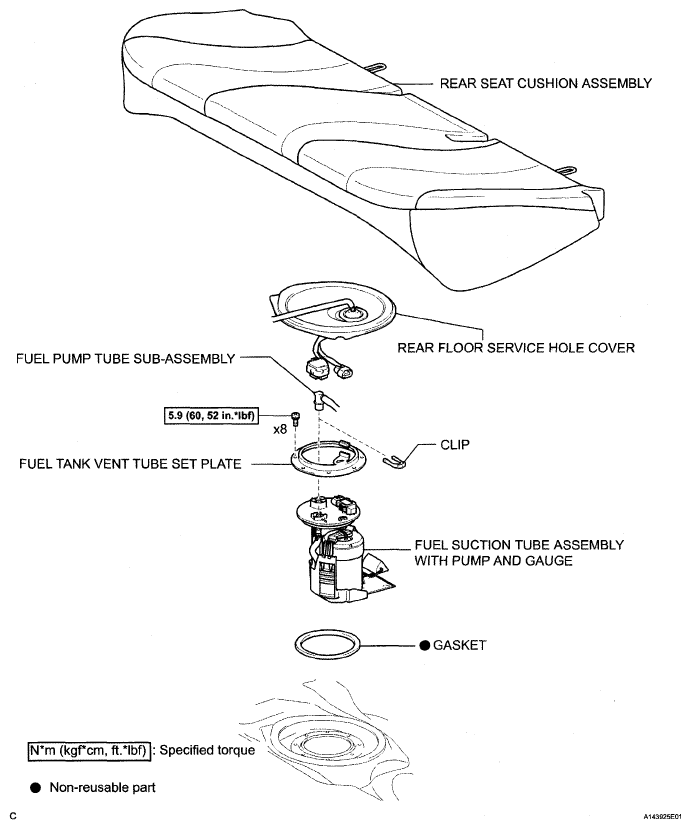

Fig 1: Fuel Pump Replacement Components With Torque Specifications (1 Of 2)
G05008901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 3)
G05008937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

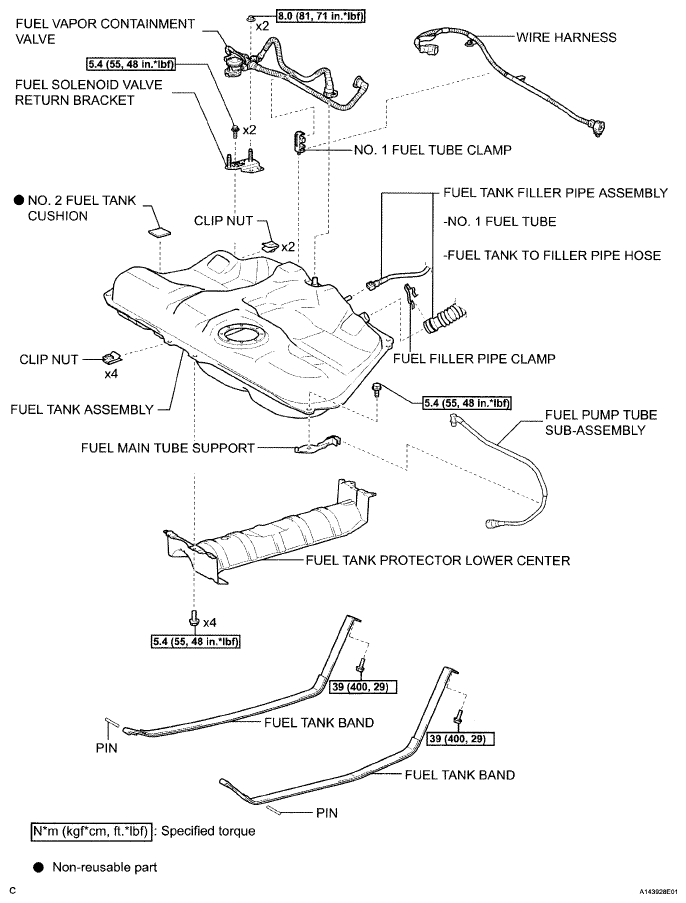

Fig 3: Fuel Tank Replacement Components With Torque Specifications (3 Of 3)
G05008938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
