Home >> Toyota >> 2007 >> Camry Hybrid >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Engine Fuel System (Hybrid) >> Fuel Injector >> Components

Fuel Injector: Components

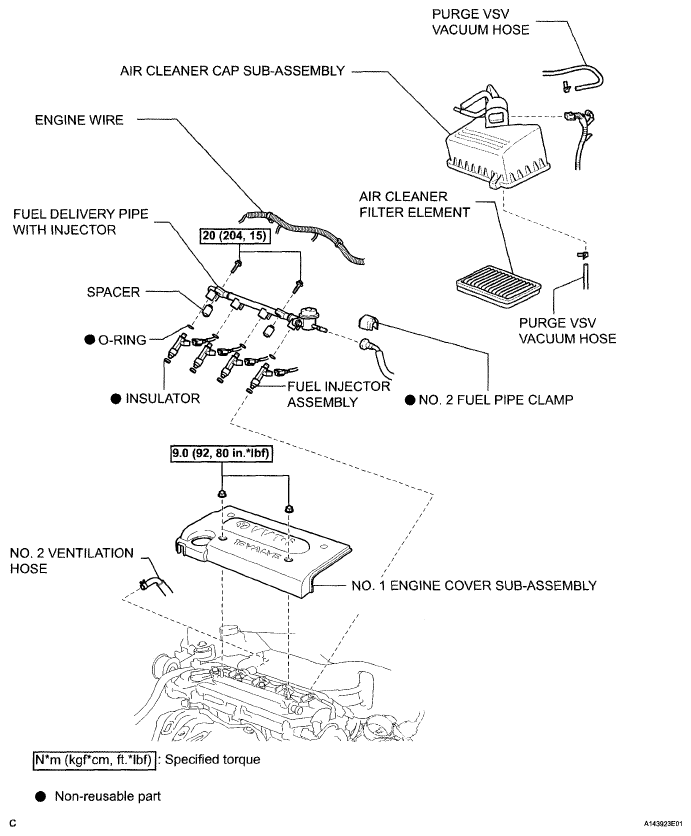

Fig 1: Fuel Injector Replacement Components With Torque Specifications
G05008854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
