Parts Location

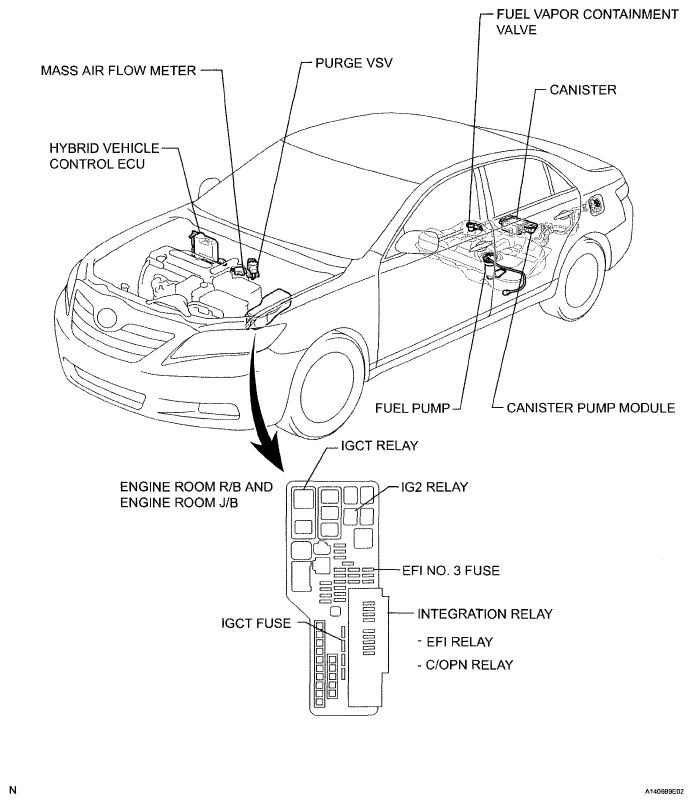

Fig 1: Identifying SFI System Components (1 Of 2)
G05007641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

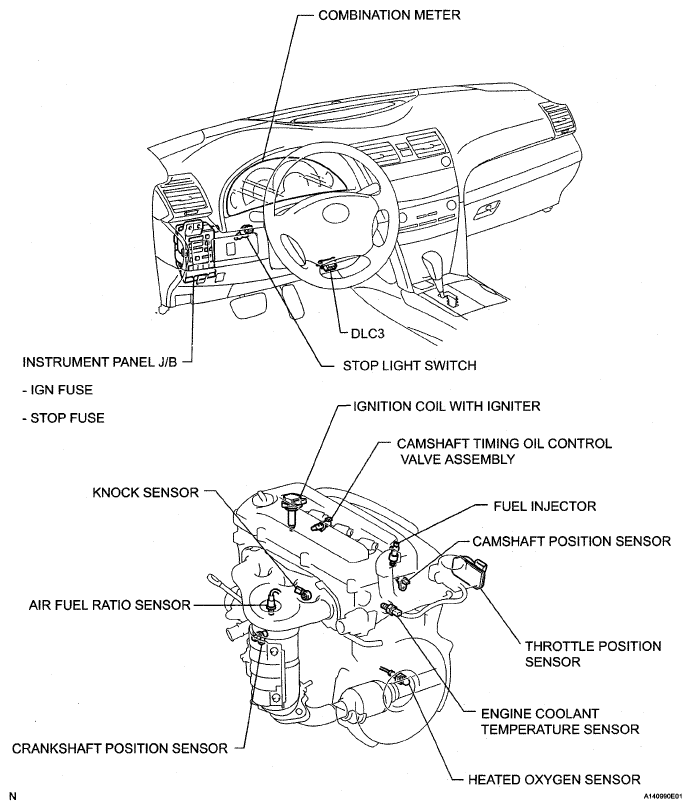

Fig 2: Identifying SFI System Components (2 Of 2)
G05007642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
