ECM Power Source Circuit: Wiring Diagram

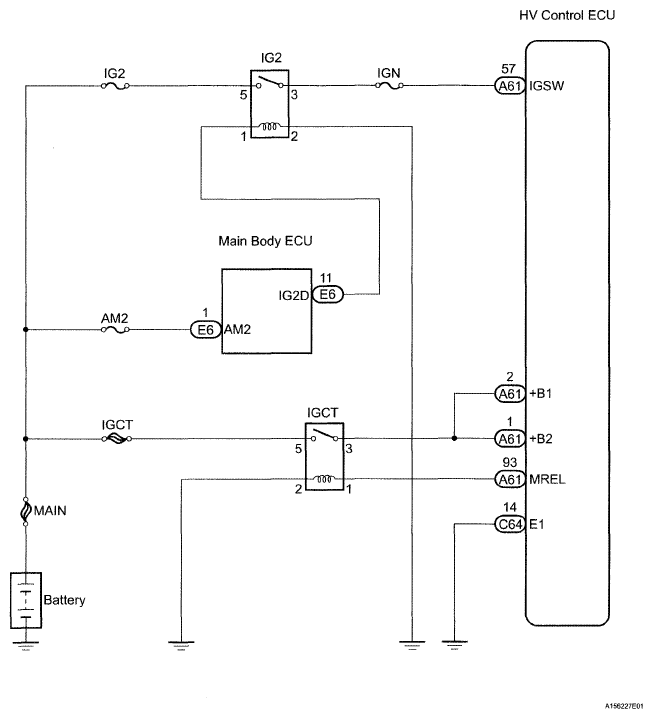

Fig 1: Identifying ECM Power Source Wiring Diagram

G05007942

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
