Home >> Toyota >> 2007 >> Avalon XLS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - U151E >> Transmission Wire >> Components

Transmission Wire: Components

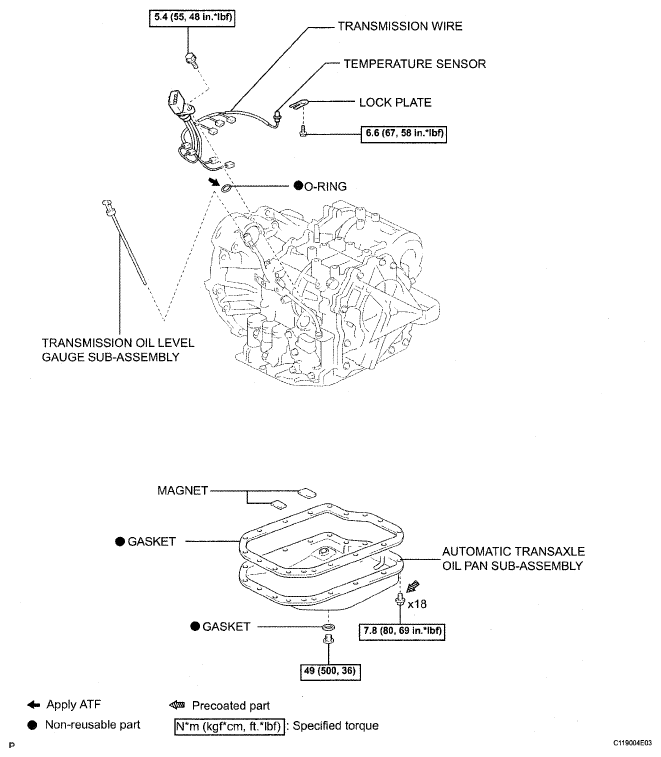

Fig 1: Transmission Wire Replacement Components With Torque Specifications

G05000581

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
