Shift Lever: Components

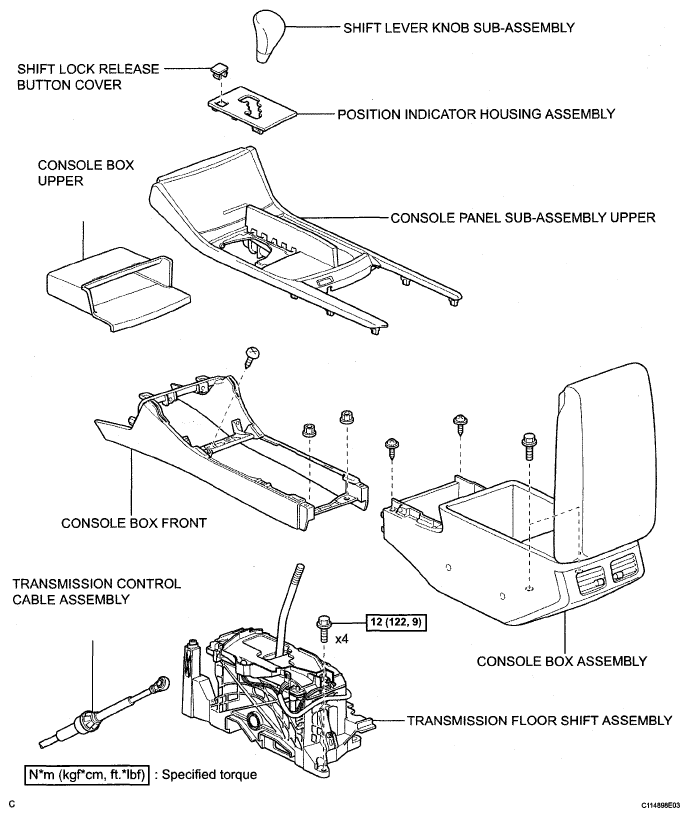

Fig 1: Shift Lever Replacement Components With Torque Specifications (1 Of 2)
G05000676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

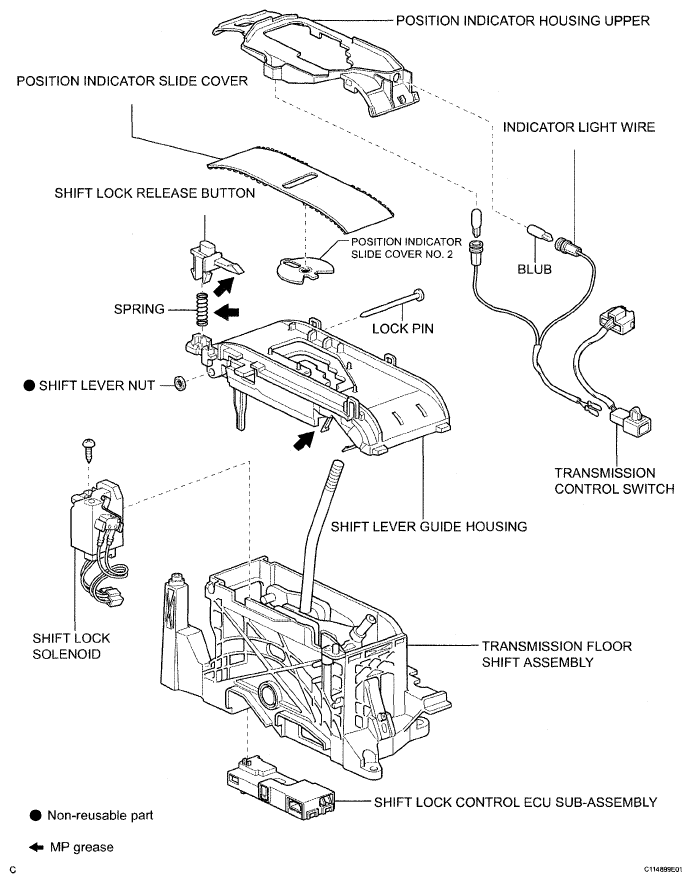

Fig 2: Identifying Shift Lever Components (2 Of 2)
G05000677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
