Oil Pump: Components

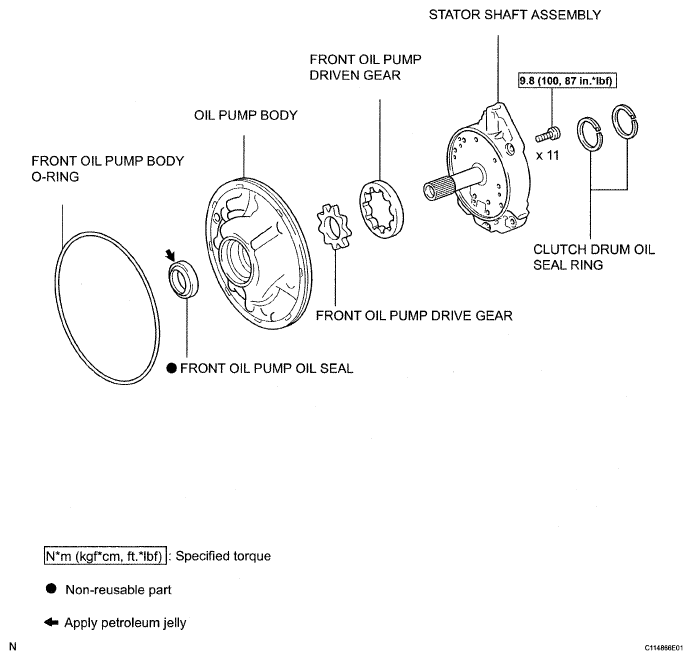

Fig 1: Oil Pump Replacement Components With Torque Specifications
G05000960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
