Automatic Transaxle Assembly: Components

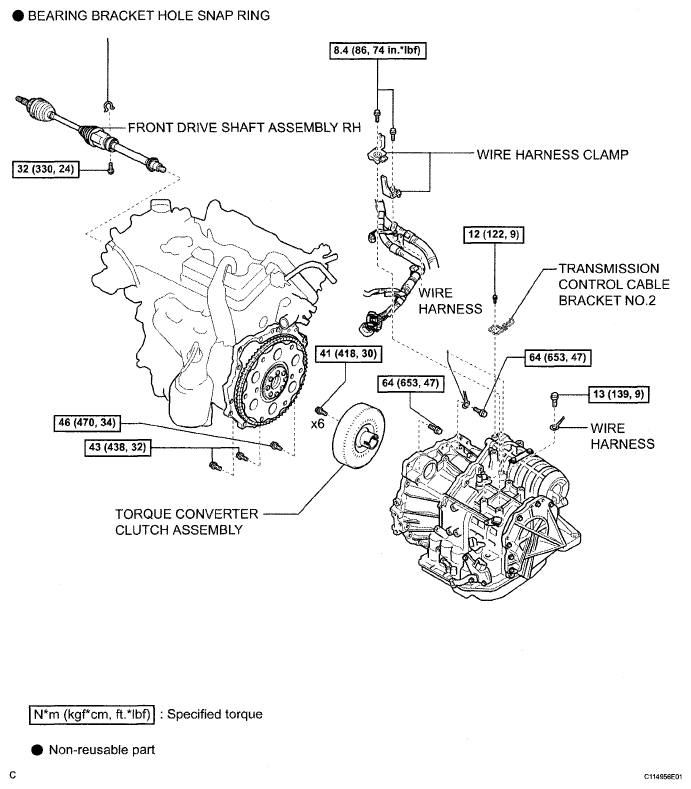

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications (1 Of 2)
G05000644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

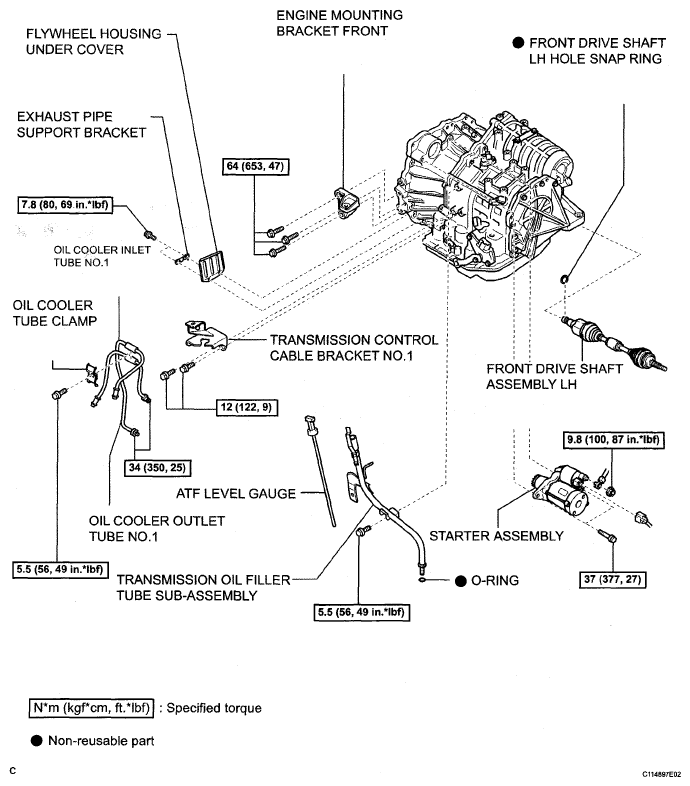

Fig 2: Automatic Transaxle Assembly Replacement Components With Torque Specifications (2 Of 2)
G05000645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
