Rear Seat Outer Belt Assembly: Components

Fig 1: Identifying Rear Seat Outer Belt Assembly Components (1 Of 3)
G05005387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

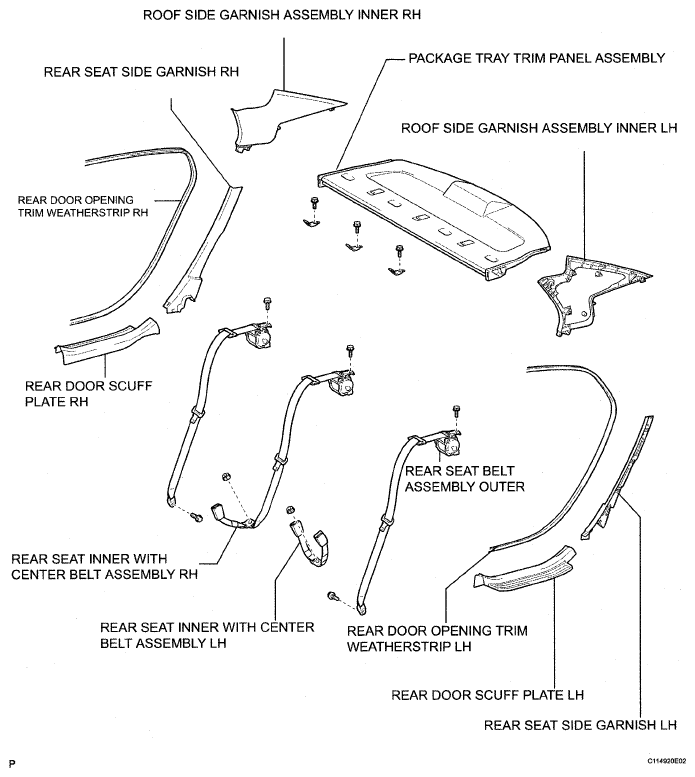

Fig 2: Identifying Rear Seat Outer Belt Assembly Components (2 Of 3)
G05005388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

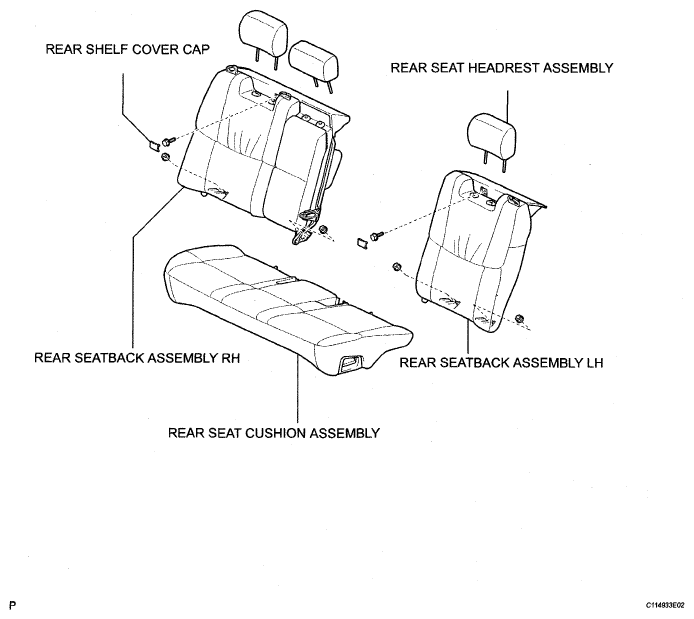

Fig 3: Identifying Rear Seat Outer Belt Assembly Components (3 Of 3)
G05005389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
