ECM Power Source Circuit: Wiring Diagram

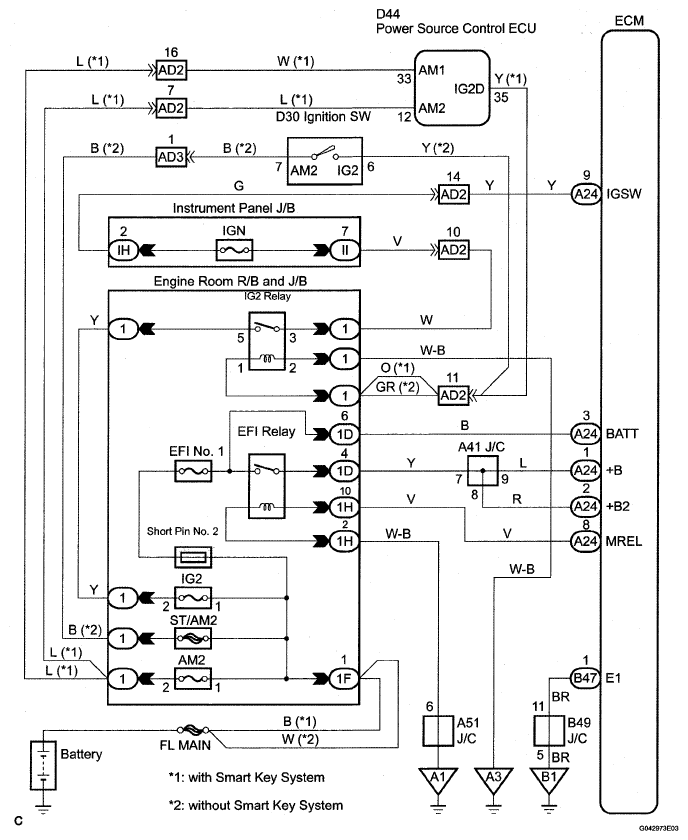

Fig 1: Power Source Control ECU - Wiring Diagram

G04996495

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
