Instrument Panel Safety Pad: Components

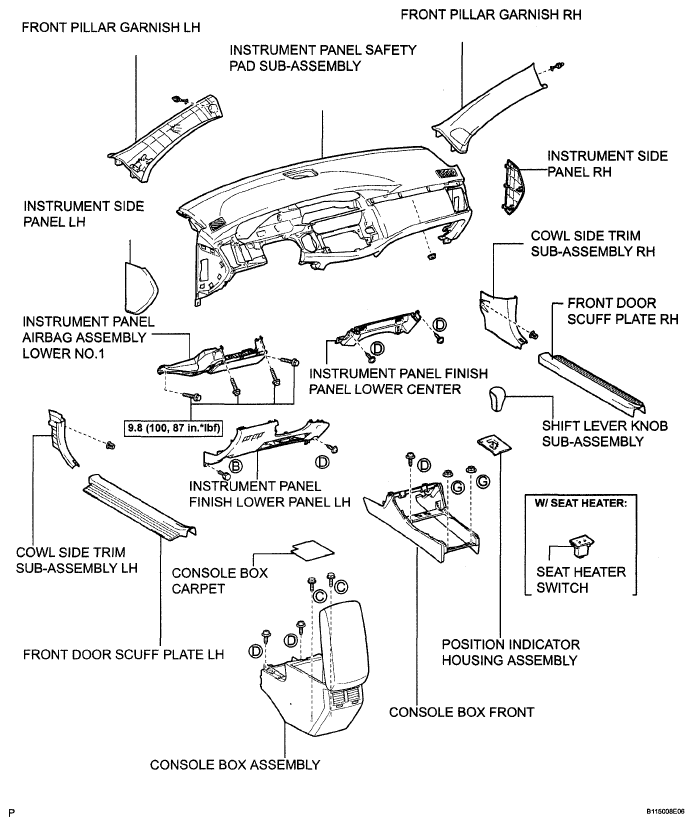

Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

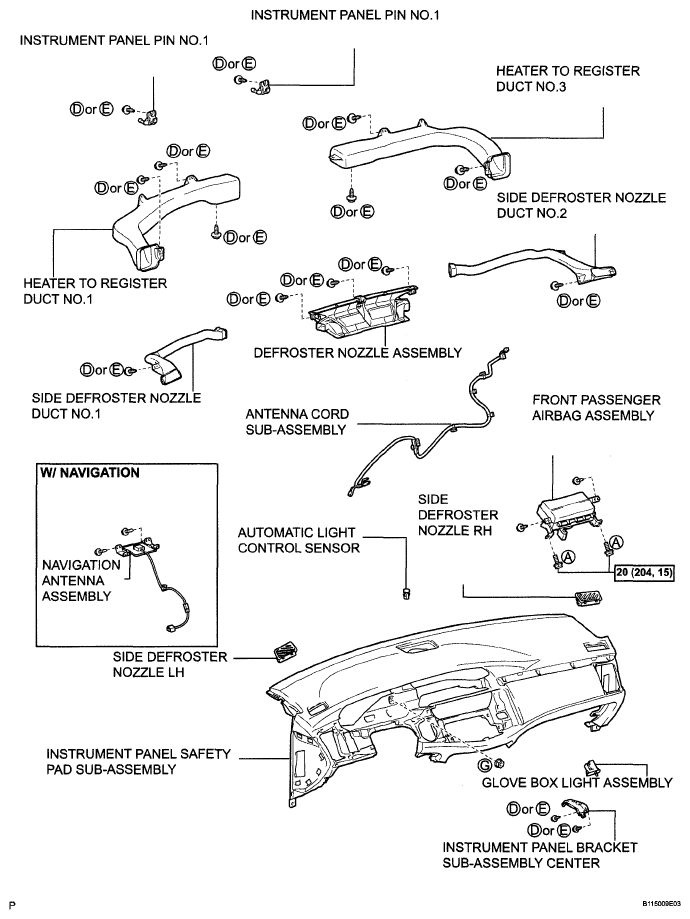

Fig 2: Instrument Panel Safety Pad Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

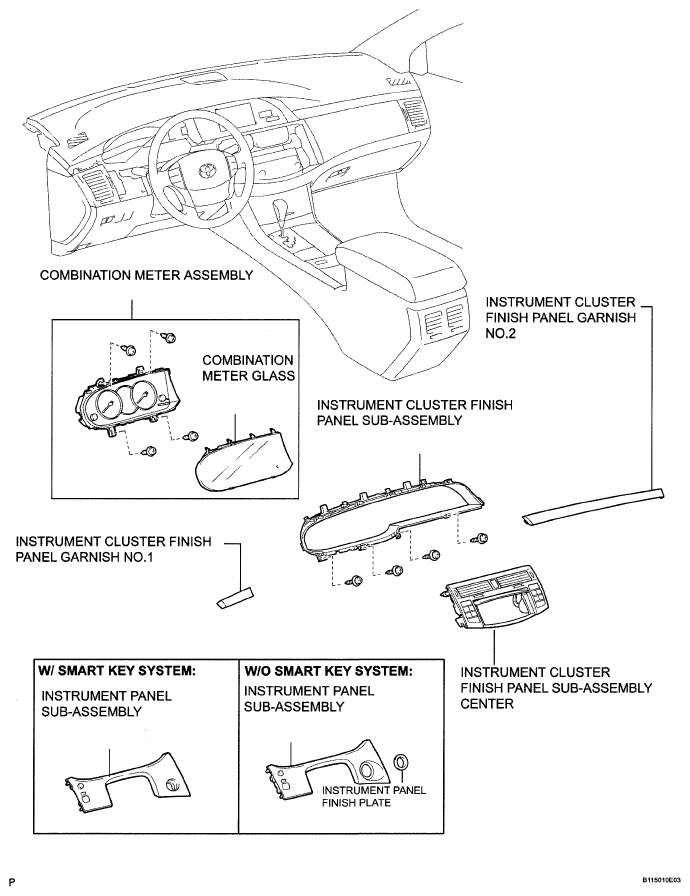

Fig 3: Identifying Instrument Panel Safety Pad Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

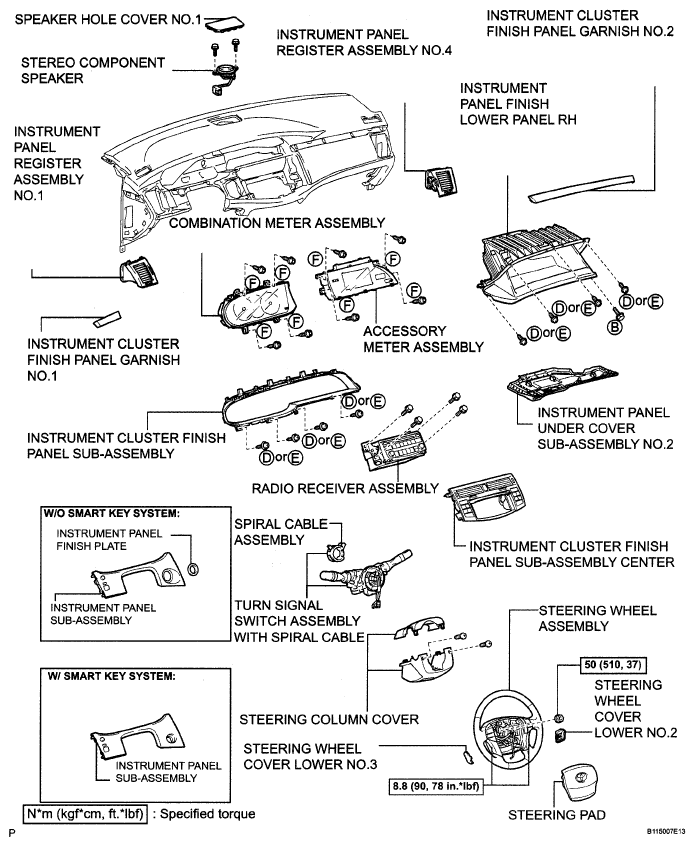

Fig 4: Instrument Panel Safety Pad Replacement Components With Torque Specifications (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

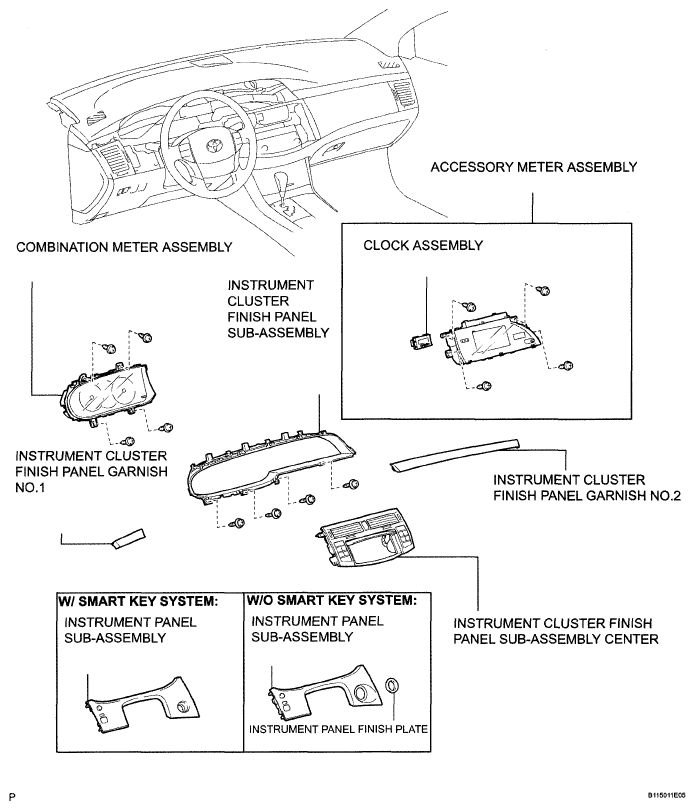

Fig 5: Identifying Instrument Panel Safety Pad Components (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Instrument Panel Safety Pad Components (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
