Seat Heater without Climate Control Seat: Notes

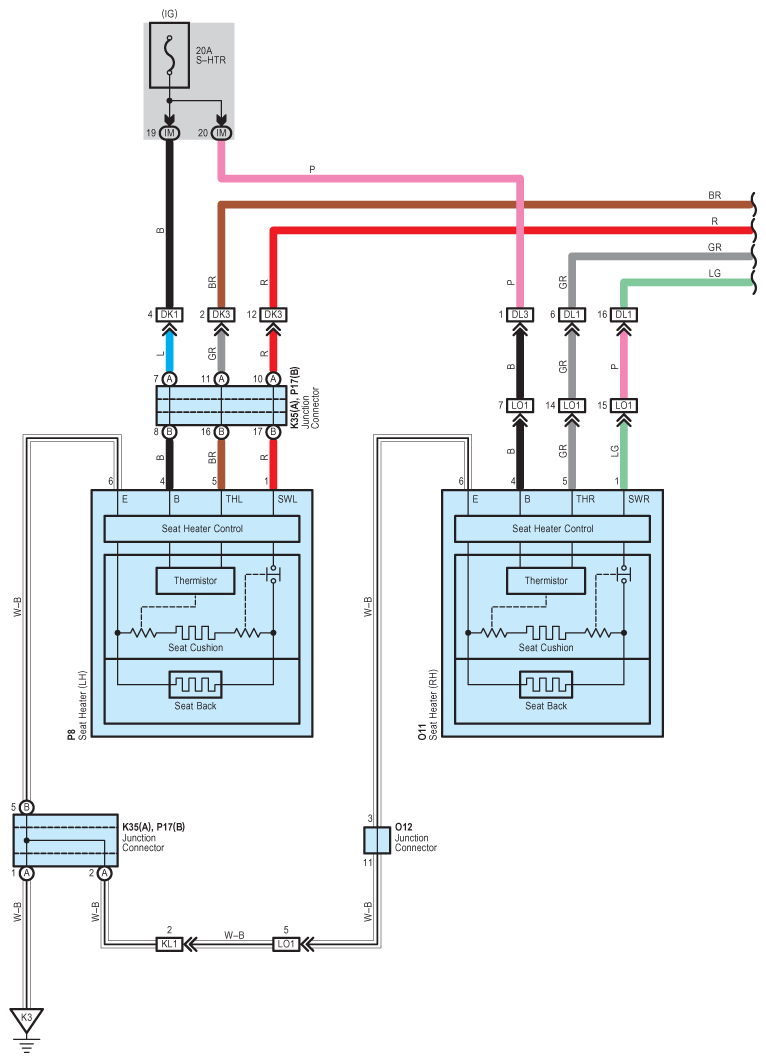

Fig 1: Seat Heater System (Without Climate Control Seat) Wiring Diagram (1 Of 2)
G08780874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

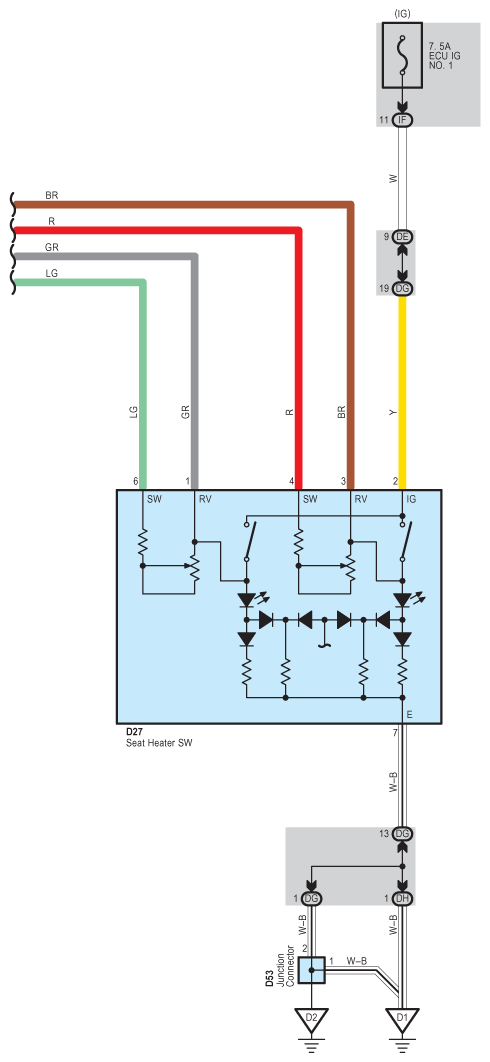

Fig 2: Seat Heater System (Without Climate Control Seat) Wiring Diagram (2 Of 2)
G08780875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
