Power Seat for Driver'S Seat without Memory: Notes

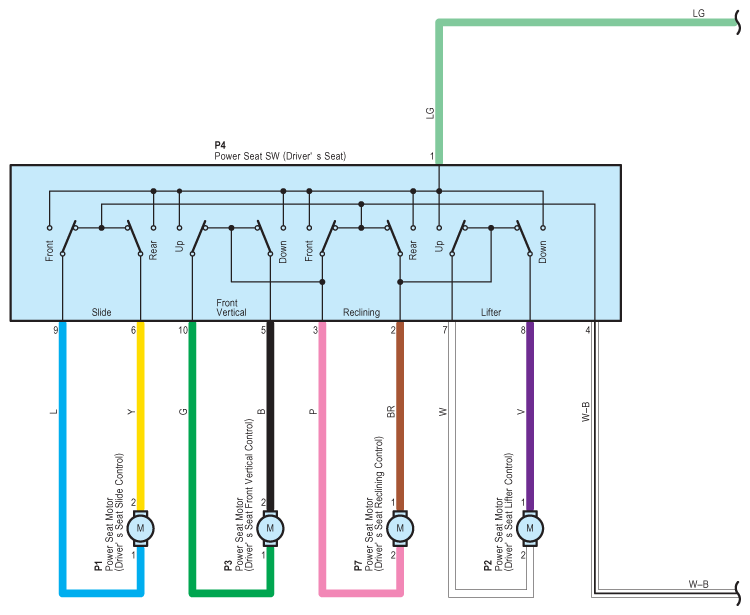

Fig 1: Power Seat System For Driver's Seat (Without Memory) Wiring Diagram (1 Of 2)
G08780868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

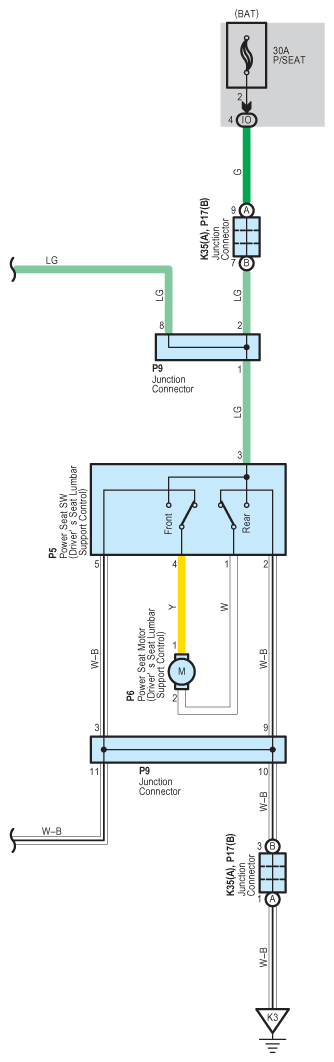

Fig 2: Power Seat System For Driver's Seat (Without Memory) Wiring Diagram (2 Of 2)
G08780869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
