Interior Light: Illumination

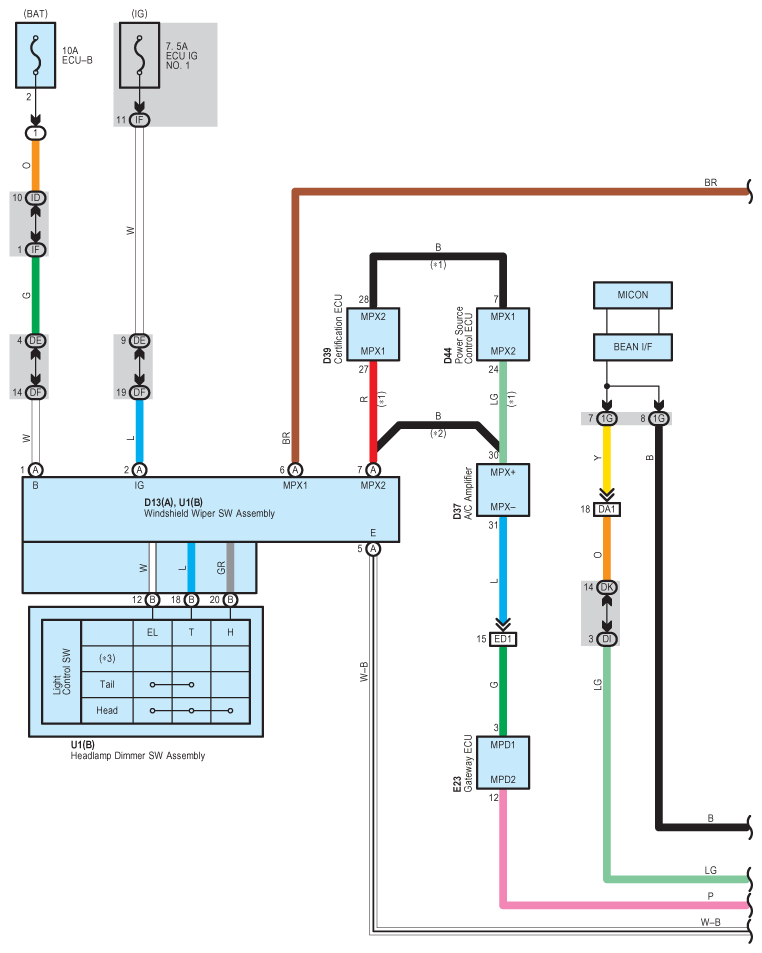

Fig 1: Illumination System Wiring Diagram (1 Of 6)
G08780749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

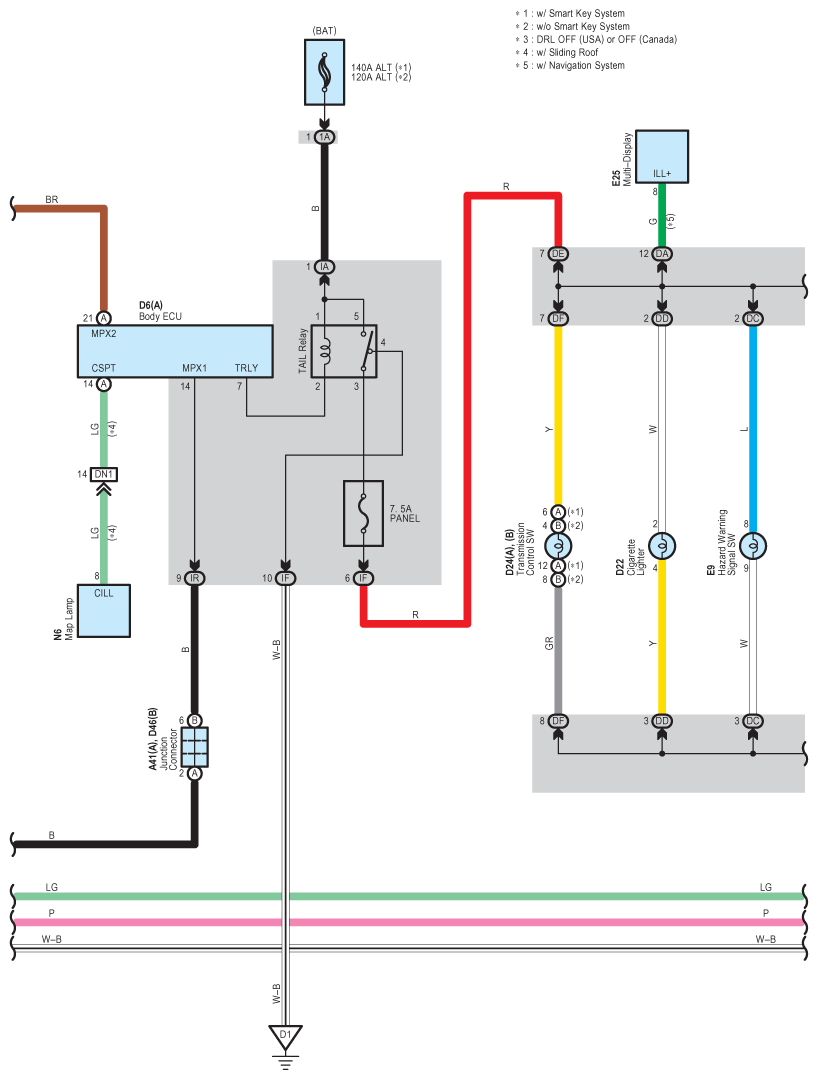

Fig 2: Illumination System Wiring Diagram (2 Of 6)
G08780750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

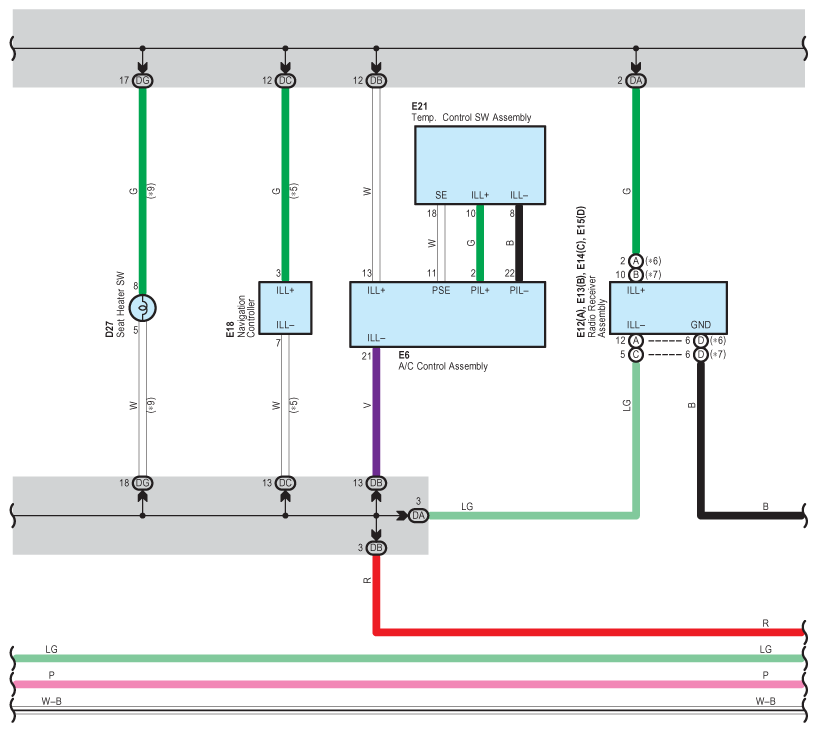

Fig 3: Illumination System Wiring Diagram (3 Of 6)
G08780751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

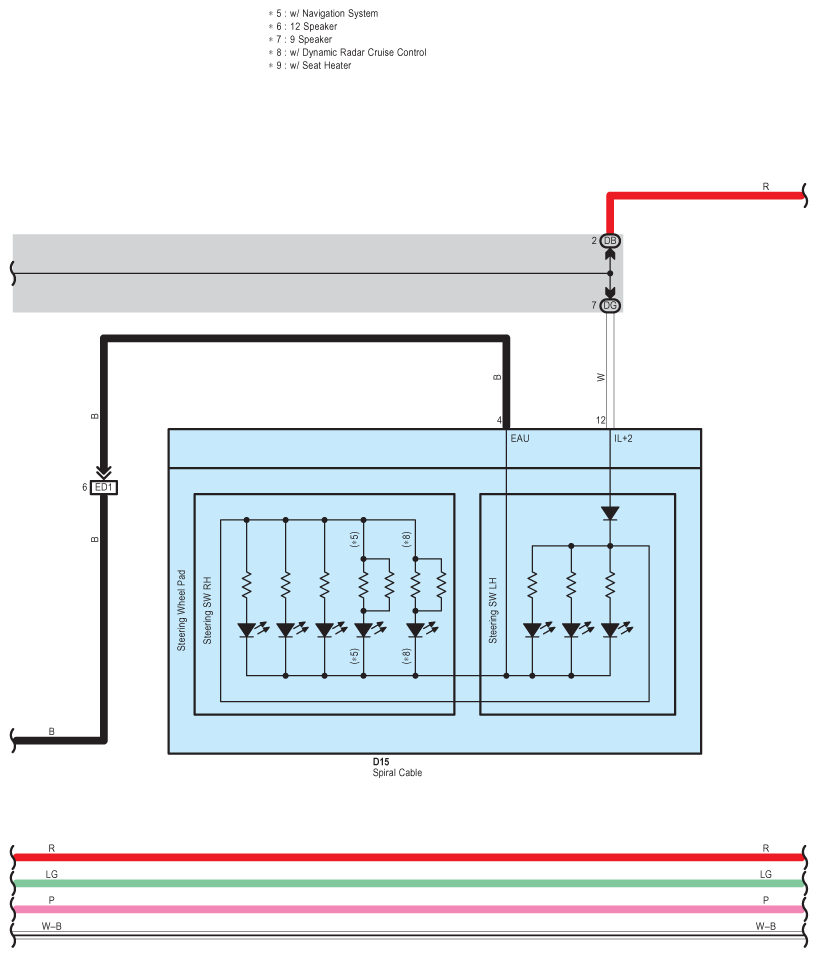

Fig 4: Illumination System Wiring Diagram (4 Of 6)
G08780752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

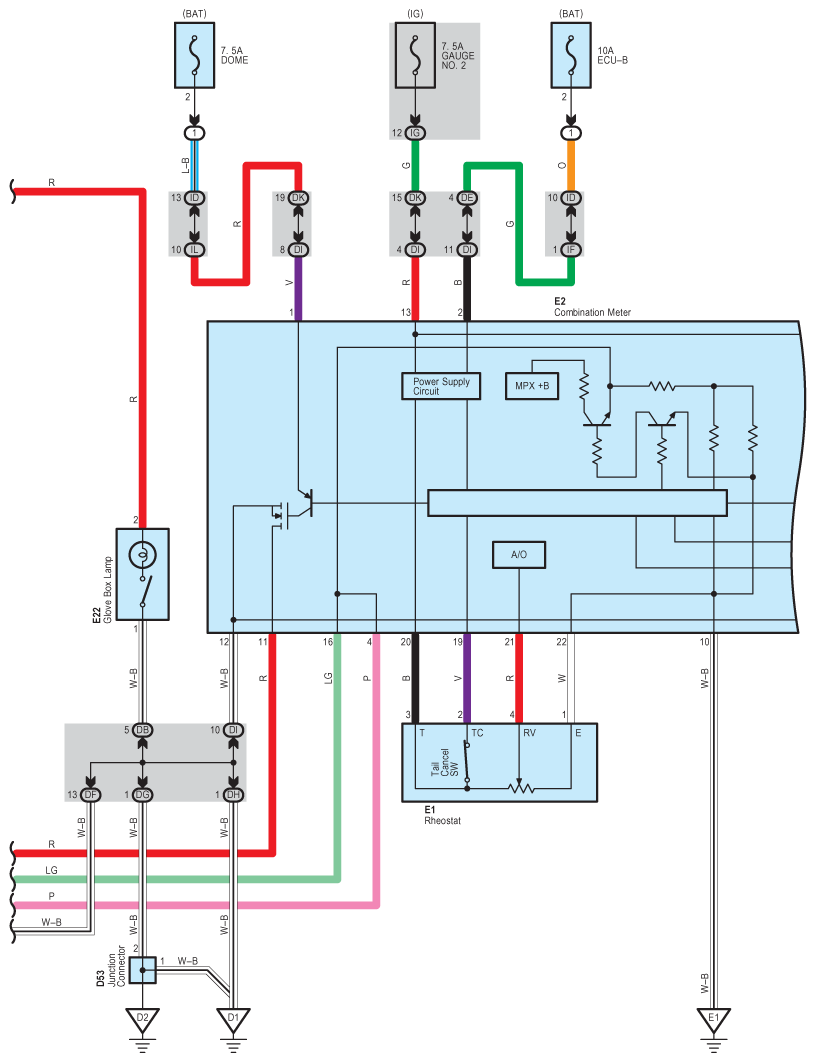

Fig 5: Illumination System Wiring Diagram (5 Of 6)
G08780753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

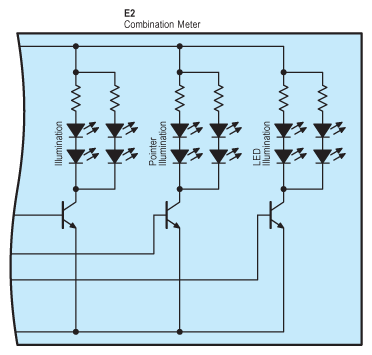

Fig 6: Illumination System Wiring Diagram (6 Of 6)
G08780754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
