Power Window

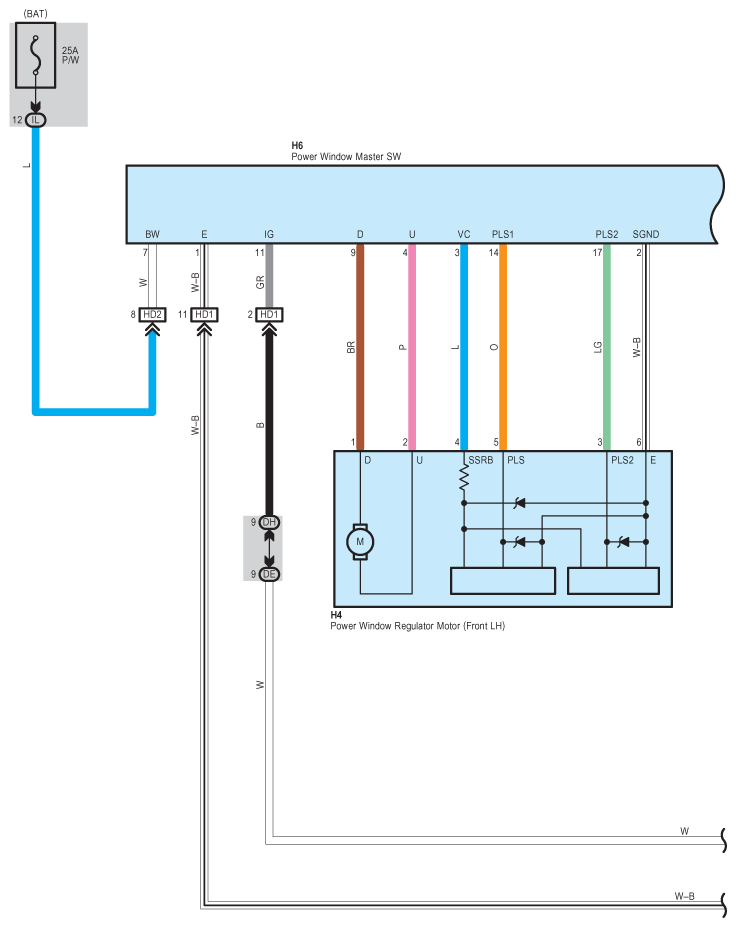

Fig 1: Power Window System Wiring Diagram (1 Of 4)
G08780780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

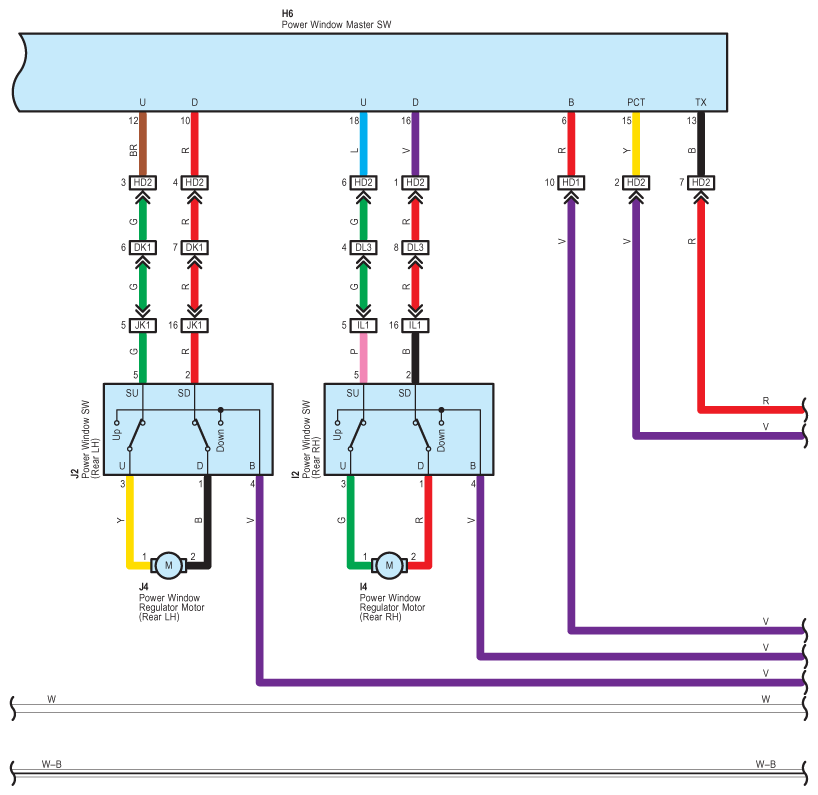

Fig 2: Power Window System Wiring Diagram (2 Of 4)
G08780781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

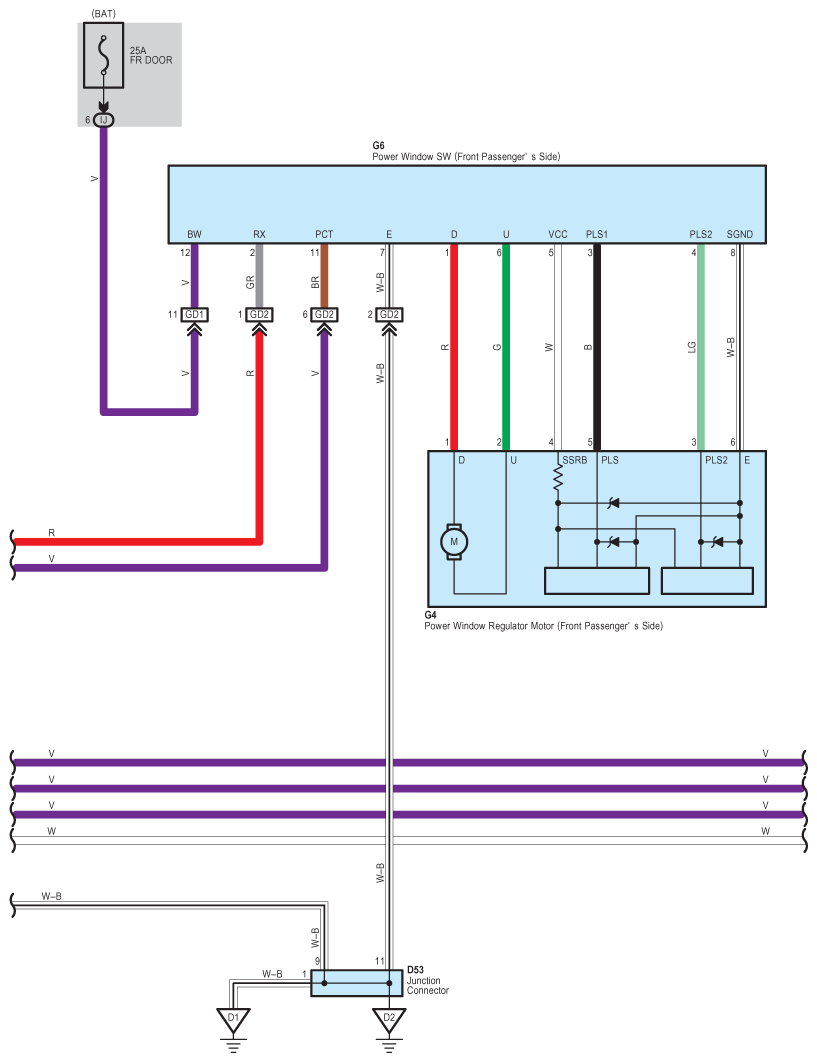

Fig 3: Power Window System Wiring Diagram (3 Of 4)
G08780782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

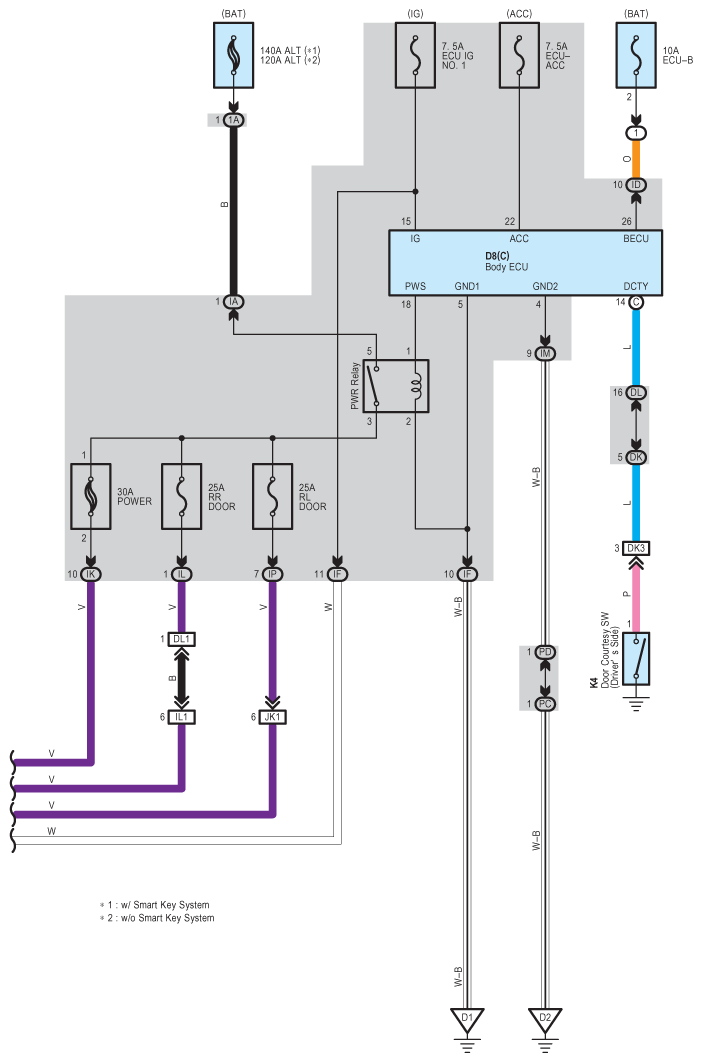

Fig 4: Power Window System Wiring Diagram (4 Of 4)
G08780783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
