Fuel Lid Opener: Notes

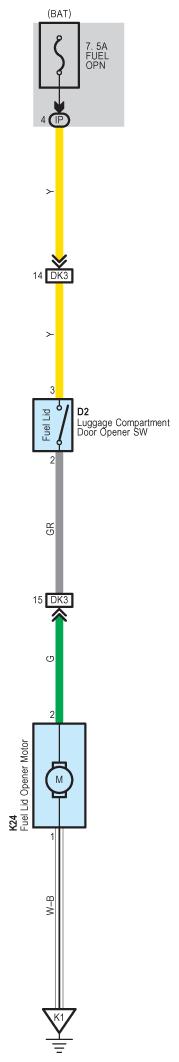

Fig 1: Fuel Lid Opener System Wiring Diagram

G08780887

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
