Audio System with 9 Speaker: Notes

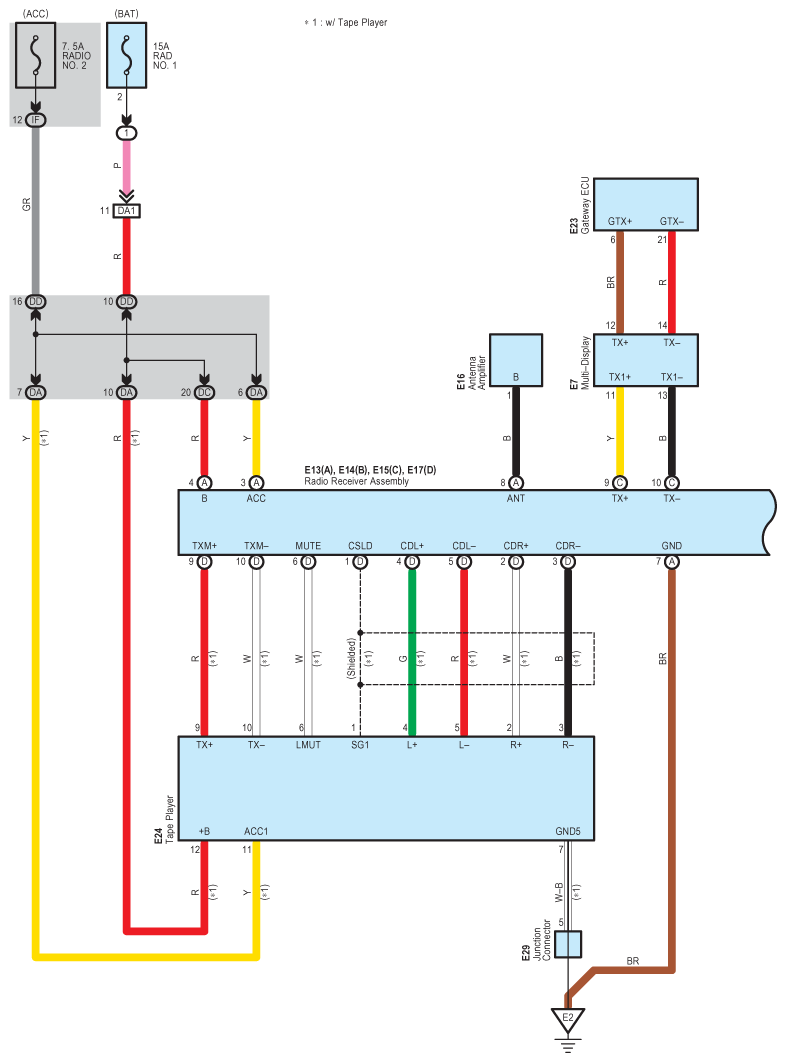

Fig 1: Audio System (With 9 Speaker) Wiring Diagram (1 Of 2)
G08780901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

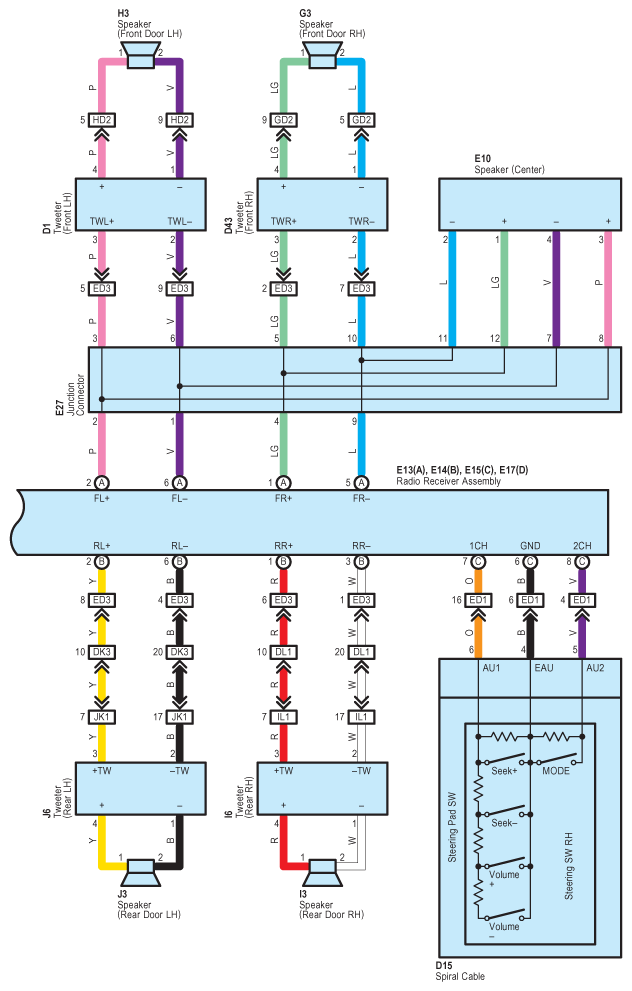

Fig 2: Audio System (With 9 Speaker) Wiring Diagram (2 Of 2)
G08780902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
