Inspection Procedure

NOTE: When replacing the ABS & TRACTION actuator assembly, perform zero point calibration (See CALIBRATION ).

PERFORM ACTIVE TEST BY INTELLIGENT TESTER (SKID CONTROL BUZZER)

Connect the intelligent tester to the DLC3.
Turn the ignition switch on (IG) and turn the intelligent tester main switch on.

Select "ACTIVE TEST" on the intelligent tester.

ACTIVE TEST: ABS/VSC

Item	Vehicle Condition / Test Details	Diagnostic Note
VSC/BR WARN BUZ	Turns skid control buzzer ON/OFF	Buzzer is heard

Check that the buzzer sounds/stops when turning the skid control buzzer on/off by using the intelligent tester.

Result

DTC OUTPUT RESULT

Result	Proceed to
Buzzer sounds / stops	A
Buzzer does not sound or sounds constantly	B

HINT:

If troubleshooting has been carried out according to the PROBLEM SYMPTOMS TABLE, refer back to the table and proceed to the next step (See PROBLEM SYMPTOMS TABLE ).

B: Go to step 2

A: END

INSPECT SKID CONTROL BUZZER (POWER SOURCE TERMINAL VOLTAGE)

Disconnect the skid control buzzer connector.
Turn the ignition switch on (IG).

Measure the voltage according to the value(s) in the table below.

Voltage

SKID CONTROL BUZZER (POWER SOURCE TERMINAL VOLTAGE)

Tester Connection	Condition	Specified Condition
D18-2 - Body ground	Ignition switch on (IG)	10 to 14 V

Fig 1: Identifying Skid Control Buzzer Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

OK: Go to Next Step

INSPECT SKID CONTROL BUZZER
1. Disconnect the skid control buzzer connector.
2. Apply battery negative voltage to terminal 1, and battery positive voltage to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.
  OK:

  Skid control buzzer sounds.
Fig 2: Inspecting Skid Control Buzzer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE SKID CONTROL BUZZER

OK: Go to Next Step

CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU TO SKID CONTROL BUZZER)

Disconnect the skid control ECU connector.

Measure the resistance according to the value(s) in the table below.

Resistance

SKID CONTROL ECU TO SKID CONTROL BUZZER

Tester Connection	Specified Condition
A34-30 (BZ) - D18-1	Below 1 Ω
A34-30 (BZ) - Body ground	10 kΩ or higher

HINT:

If troubleshooting has been carried out according to the PROBLEM SYMPTOMS TABLE, refer back to the table and proceed to the next step before replacing the part (See PROBLEM SYMPTOMS TABLE ).

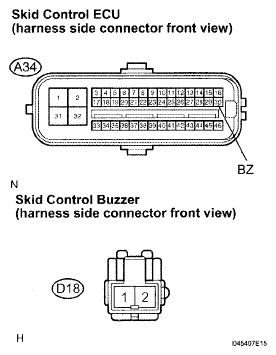

Fig 3: Identifying Skid Control ECU Connector

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (BZ CIRCUIT)

OK: REPLACE ABS & TRACTION ACTUATOR ASSEMBLY
