Anti-Lock Brake System: Wiring Diagram: Notes

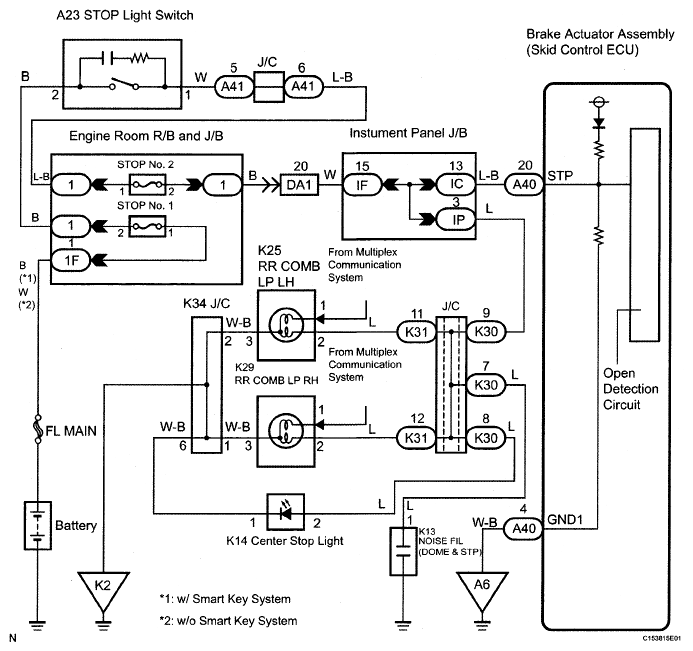

Fig 1: Stop Light Switch Circuit - Wiring Diagram

G05001464

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
