System Diagram

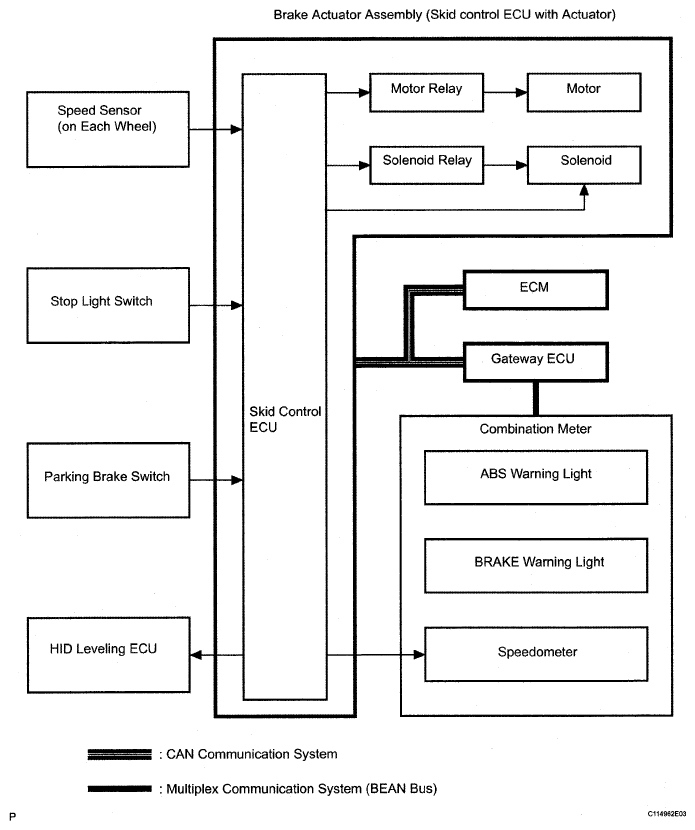

Fig 1: Anti-Lock Brake System - System Diagram
G05001416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION CHART

Transmitting ECU Receiving ECU Signals Communication method
Skid control ECU Combination meter
  • ABS warning light signal
  • BRAKE warning light signal
  • CAN communication system
  • Multiplex communication system
ECM Skid control ECU Shift position signal CAN communication system
