Multi-display Power Source Circuit: Wiring Diagram

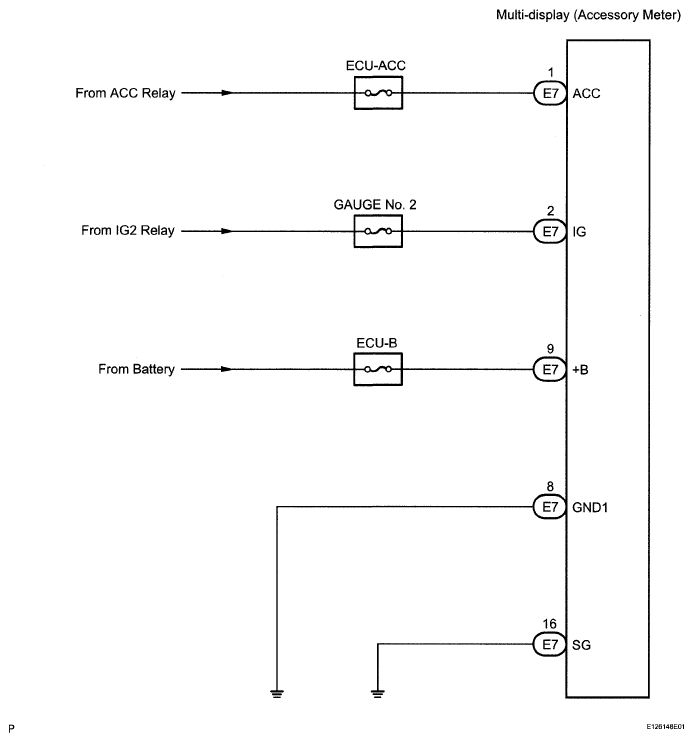

Fig 1: Multi-Display Power Source Circuit Diagram

G05006266

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
