Laser Sensor Power Source Circuit: Wiring Diagram

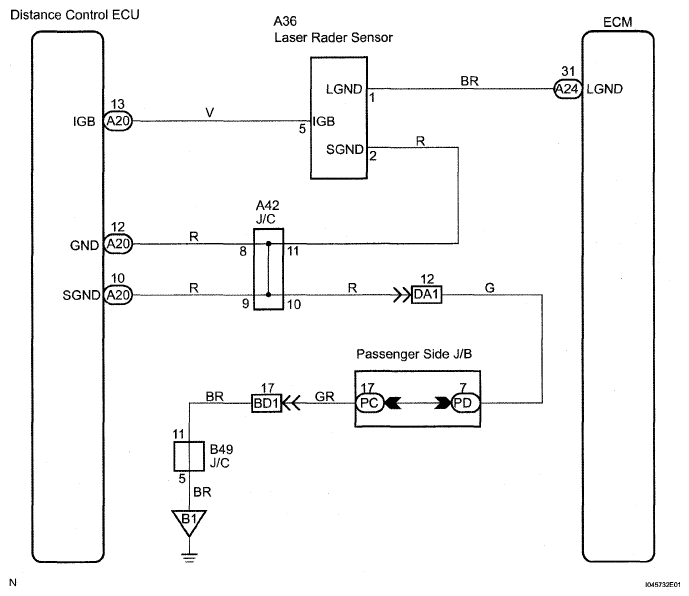

Fig 1: Laser Radar Sensor - Wiring Diagram

G05005623

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
