Distance Control Switch Circuit: Wiring Diagram

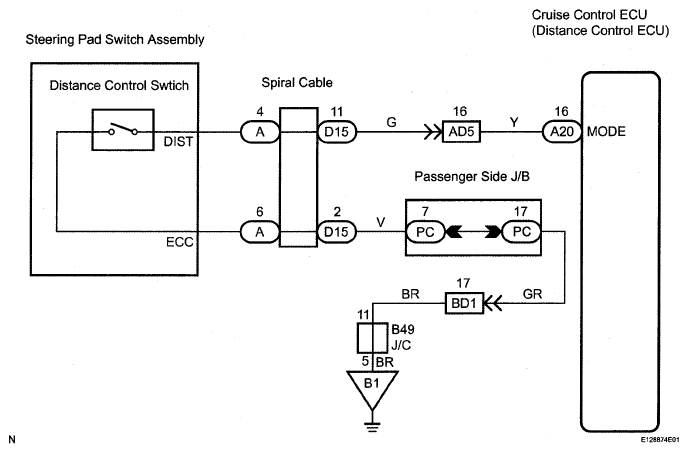

Fig 1: Distance Control Switch - Wiring Diagram

G05005617

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
