Terminals Of Ecu

  1. CHECK ECM

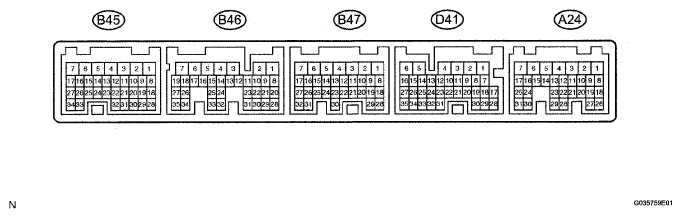

    Fig 1: Identifying ECM Terminals
    G05005542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ECM TERMINALS VOLTAGE SPECIFICATION

    Symbols (Terminals No.) Wiring Color Terminal Description Condition Specified Condition
    TC - E1 (A24-23 - B47-1) P - BR Ground Ignition switch on (IG) → Connect terminals TC and CG of DLC3 10 to 14 V → Below 1 V
    STP - E1 (A24-15 - B47-1) W - BR Stop light signal Ignition switch on (IG) Depress brake pedal → Release brake pedal 10 to 14 V → Below 1 V
    CCS - E1 (D41-2 - B47-1) B - BR Cruise control main switch circuit Ignition switch on (IG) 10 to 14 V
    CCS - E1 (D41-2 - B47-1) B - BR Cruise control main switch circuit CANCEL switch hold ON 6.6 to 10.1 V
    CCS - E1(D41-2 - B47-1) B - BR Cruise control main switch circuit SET/- switch hold ON 4.5 to 7.1 V
    CCS - E1(D41-2 - B47-1) B - BR Cruise control main switch circuit RES/+ switch hold ON 2.3 to 4.0 V
    CCS - E1 (D41-2 - B47-1) B - BR Cruise control main switch circuit MAIN switch hold ON Below 1 V
