Home >> Toyota >> 2007 >> Avalon XLS >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Entertainment Systems >> Audio System & Visual System >> Multi-Display >> Components

Audio System & Visual System: Multi-Display: Components

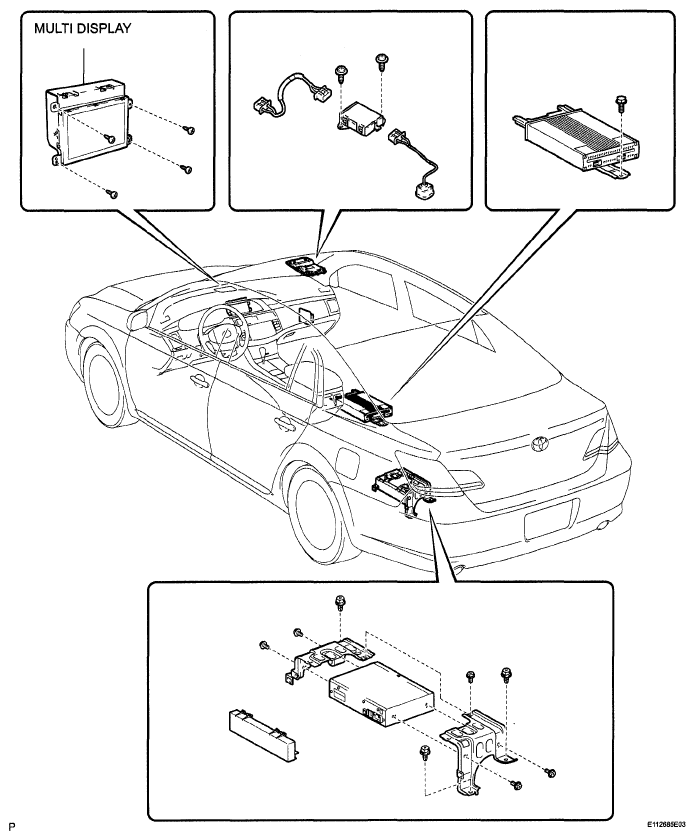

Fig 1: Identifying Multi-Display Components (1 Of 2)
G05006277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Multi-Display Components (2 Of 2)
G05006278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
