Oil Pump: Removal

  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE  (See REMOVAL )
  2. REMOVE ENGINE WIRE
  3. REMOVE FRONT FRAME ASSEMBLY  (See REMOVAL )
  4. REMOVE STARTER ASSEMBLY  (See REMOVAL )
  5. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
  6. REMOVE OIL LEVEL GAUGE GUIDE SUB-ASSEMBLY  (See REMOVAL )
  7. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH  (See REMOVAL )
  8. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH  (See REMOVAL )
  9. REMOVE DRIVE PLATE & RING GEAR SUB-ASSEMBLY  (See REMOVAL )
  10. FIX ENGINE ASSEMBLY
  11. REMOVE IDLER PULLEY SUB-ASSEMBLY NO. 2  (See REMOVAL )
  12. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY  (See REMOVAL )
  13. REMOVE WATER PUMP PULLEY  (See REMOVAL )
  14. REMOVE WATER INLET HOUSING  (See REMOVAL )
  15. REMOVE CRANKSHAFT PULLEY  (See DISASSEMBLY )
  16. REMOVE OIL PAN SUB-ASSEMBLY NO. 2  (See DISASSEMBLY )
  17. REMOVE OIL STRAINER SUB-ASSEMBLY  (See DISASSEMBLY )
  18. REMOVE OIL PAN SUB-ASSEMBLY  (See DISASSEMBLY )
  19. REMOVE INTAKE AIR SURGE TANK ASSEMBLY  (See REMOVAL )
  20. REMOVE IGNITION COIL ASSEMBLY  (See REMOVAL )
  21. REMOVE OIL PIPE NO. 1  (See DISASSEMBLY )
  22. REMOVE OIL PIPE NO. 2  (See DISASSEMBLY )
  23. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY RH  (See DISASSEMBLY )
  24. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY LH  (See DISASSEMBLY )
  25. REMOVE TIMING CHAIN OR BELT COVER SUB-ASSEMBLY
    1. Remove the 23 bolts and 2 nuts as shown in the illustration.
      Fig 1: Locating Belt Cover Sub-Assembly Bolts And Nuts
      G04975451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the timing chain cover by prying between the timing chain cover and cylinder head or cylinder block with a screwdriver.
      NOTE: Be careful not to damage the contact surfaces of the cylinder head, cylinder block and chain cover.

      HINT:

      Tape the screwdriver tip before use.

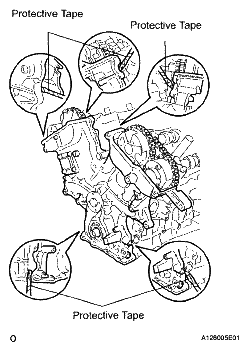

      Fig 2: Removing Timing Chain Cover
      G05000282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the gasket.
    Fig 3: Removing Gasket
    G05000283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL
    1. Using a screwdriver, pry out the oil seal.

      HINT:

      Tape the screwdriver tip before use.

    Fig 4: Prying Out Oil Seal
    G05000284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
