: Ground Points

Code See Ground Points Location
A1 : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS; : LOCATION OF GROUND POINTS Front Left Fender
A6 : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Right Side of the Instrument Panel
B1 : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS; : LOCATION OF GROUND POINTS Cylinder Head
B2 : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS; : LOCATION OF GROUND POINTS Left Side of the Cylinder Block
D1 : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Left Kick Panel
D2 : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Instrument Panel Brace LH
E1 : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Under the Combination Meter
K2 : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS; : LOCATION OF GROUND POINTS Left Rear Quarter Panel

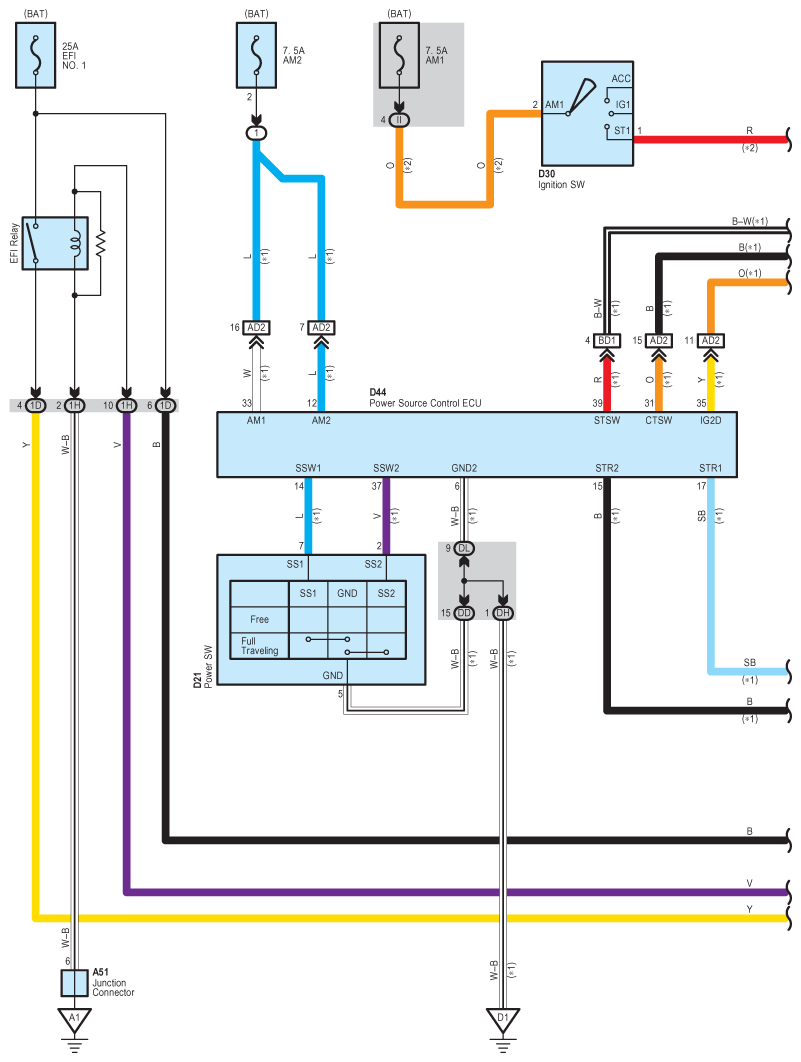

Fig 1: Cruise Control System Wiring Diagram (1 Of 8)
G08780846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

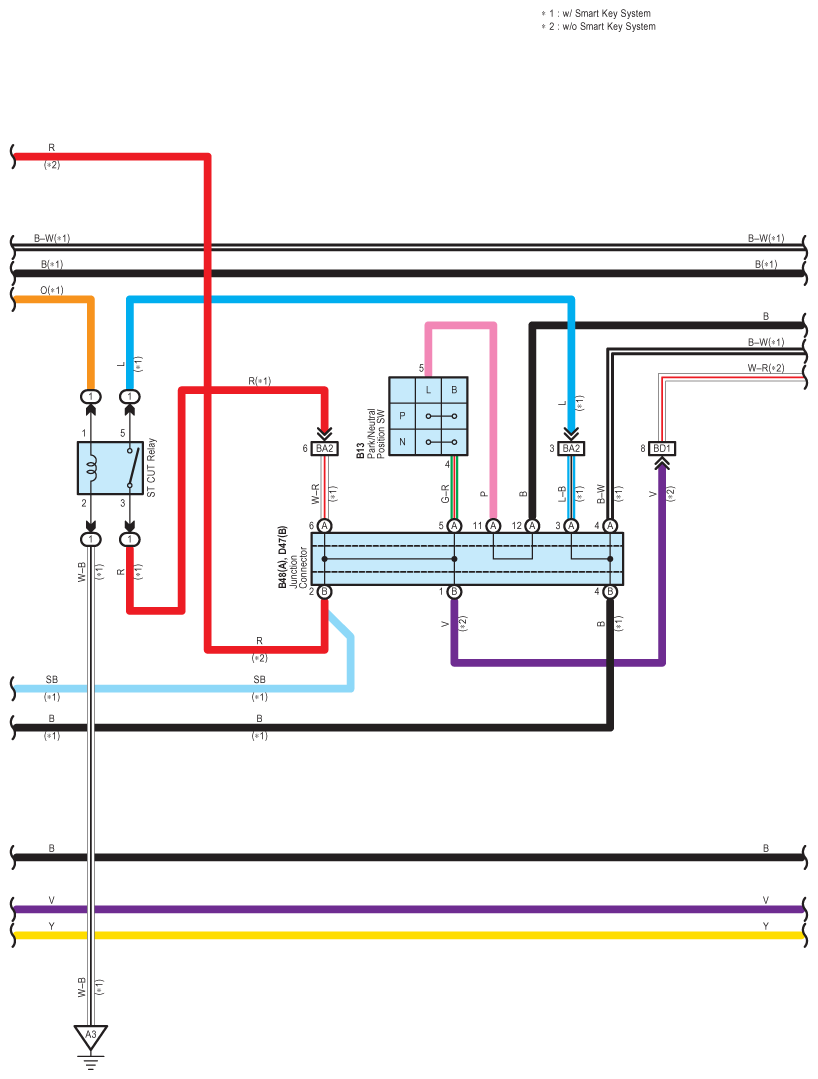

Fig 2: Cruise Control System Wiring Diagram (2 Of 8)
G08780847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

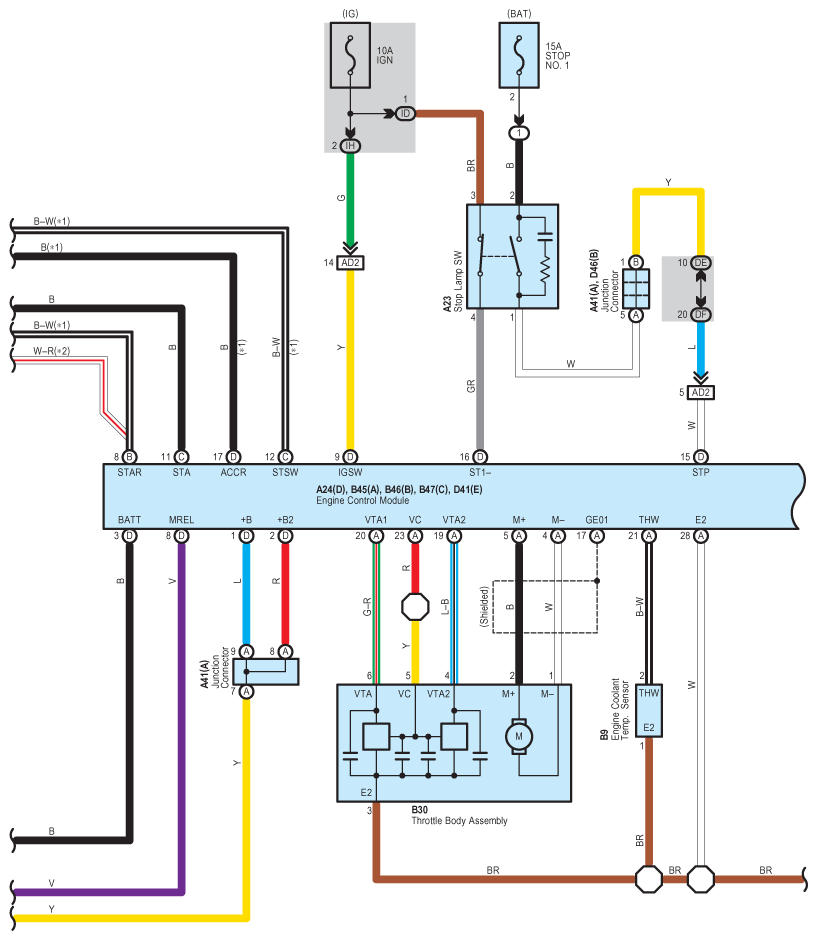

Fig 3: Cruise Control System Wiring Diagram (3 Of 8)
G08780848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

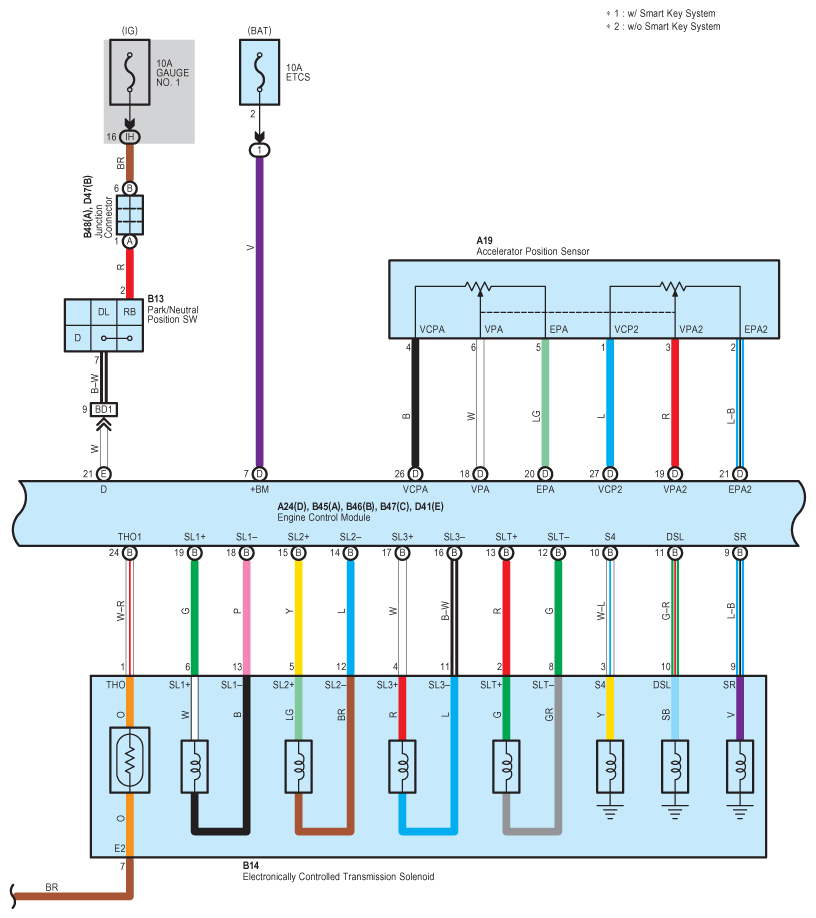

Fig 4: Cruise Control System Wiring Diagram (4 Of 8)
G08780849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

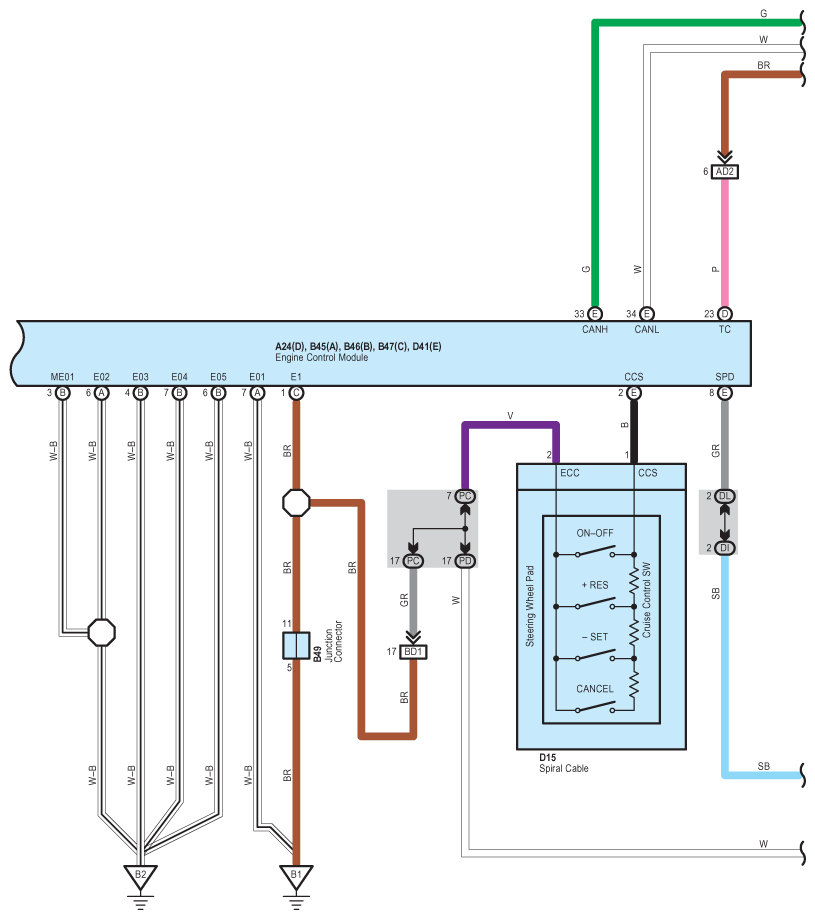

Fig 5: Cruise Control System Wiring Diagram (5 Of 8)
G08780850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

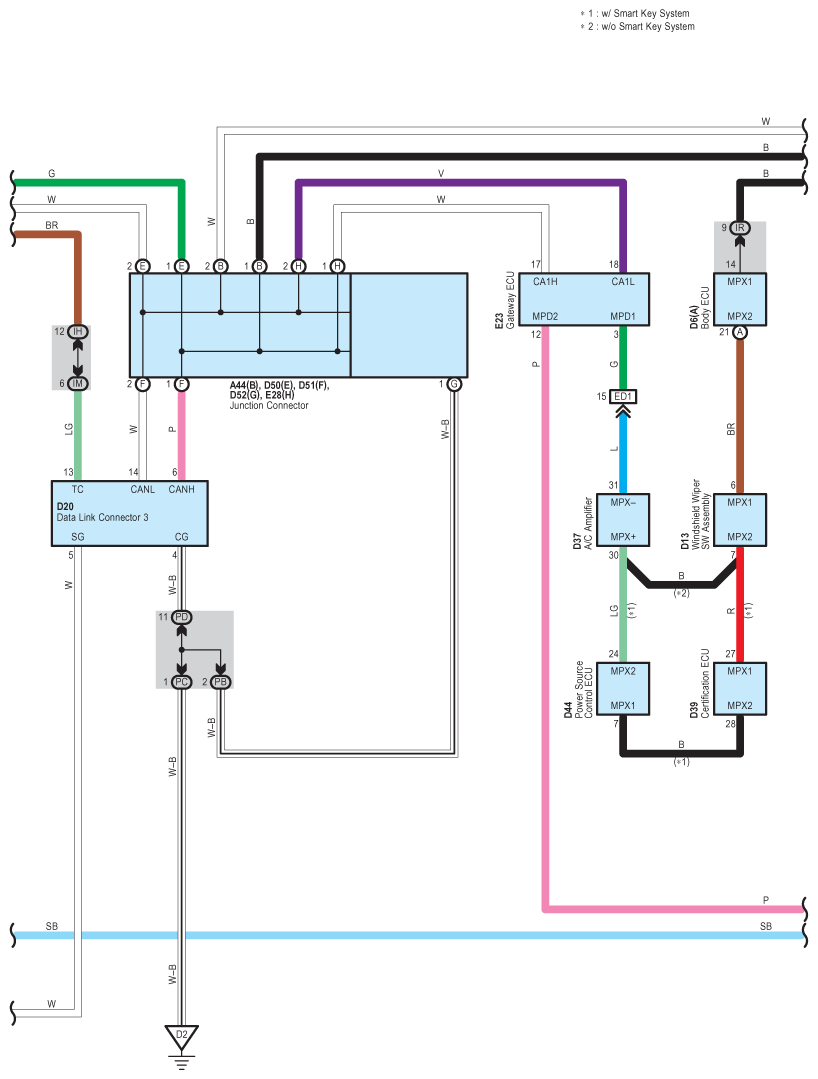

Fig 6: Cruise Control System Wiring Diagram (6 Of 8)
G08780851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

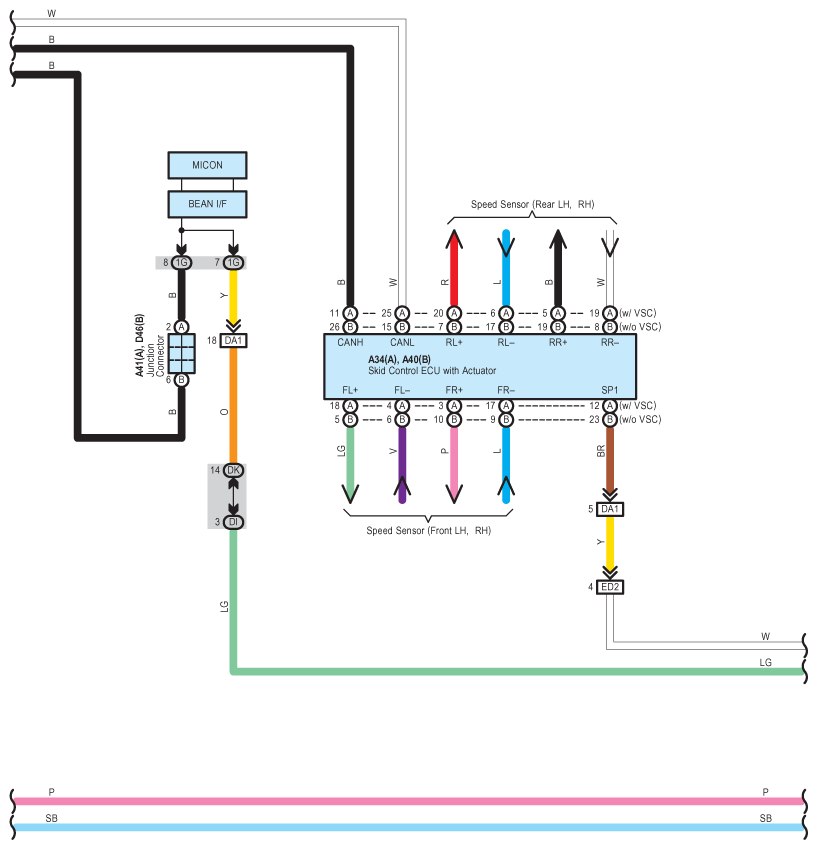

Fig 7: Cruise Control System Wiring Diagram (7 Of 8)
G08780852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

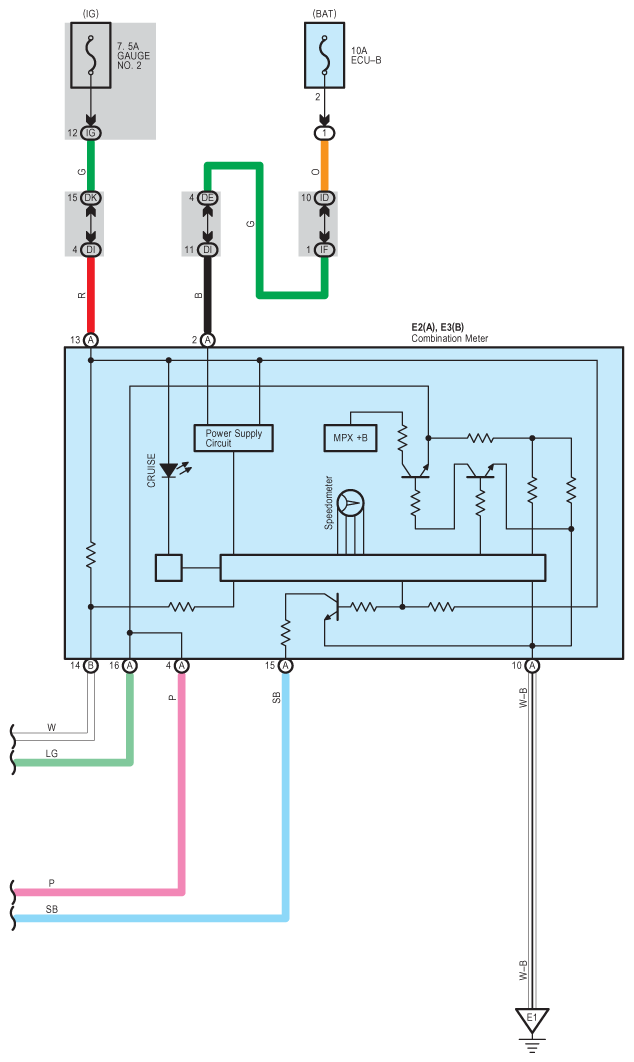

Fig 8: Cruise Control System Wiring Diagram (8 Of 8)
G08780853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Code See Ground Points Location
A1 : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS; : LOCATION OF GROUND POINTS Front Left Fender
A3 : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Left Side of the Instrument Panel
B1 : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS; : LOCATION OF GROUND POINTS Cylinder Head
B2 : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS; : LOCATION OF GROUND POINTS Left Side of the Cylinder Block
D1 : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Left Kick Panel
D2 : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Instrument Panel Brace LH
E1 : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Under the Combination Meter
