Radio Receiver Power Source Circuit: Wiring Diagram

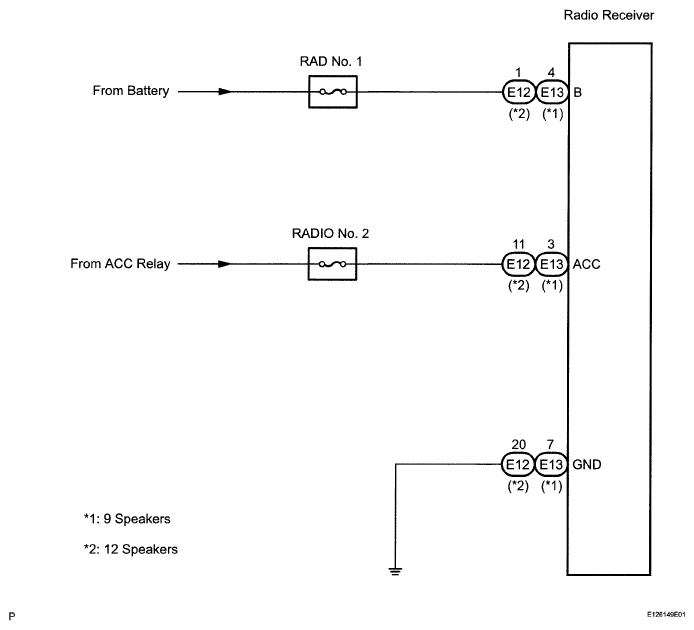

Fig 1: Radio Receiver Power Source Circuit Diagram

G05006262

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
