Child Restraint Seat Anchor Bracket: Components

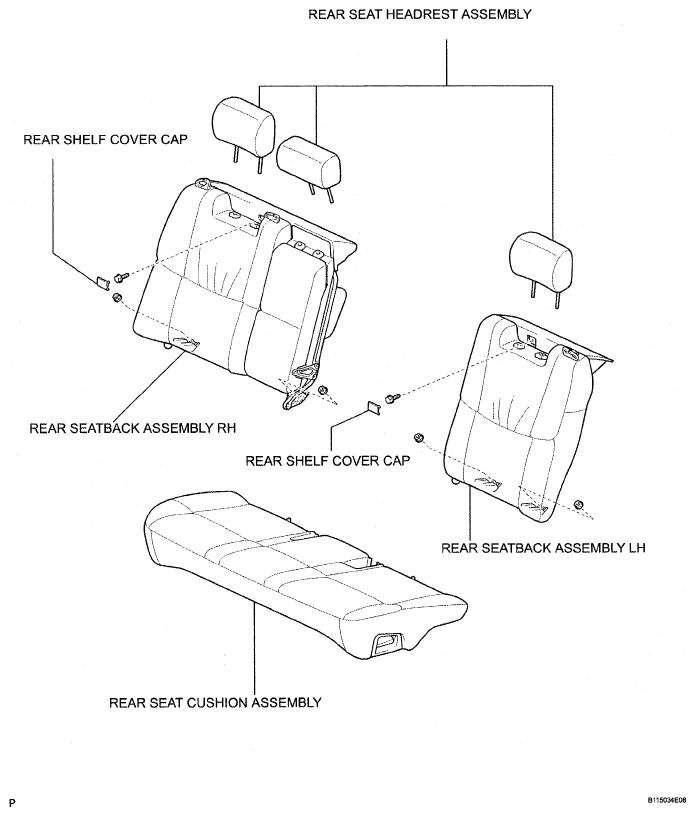

Fig 1: Identifying Child Restraint Seat Anchor Bracket Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

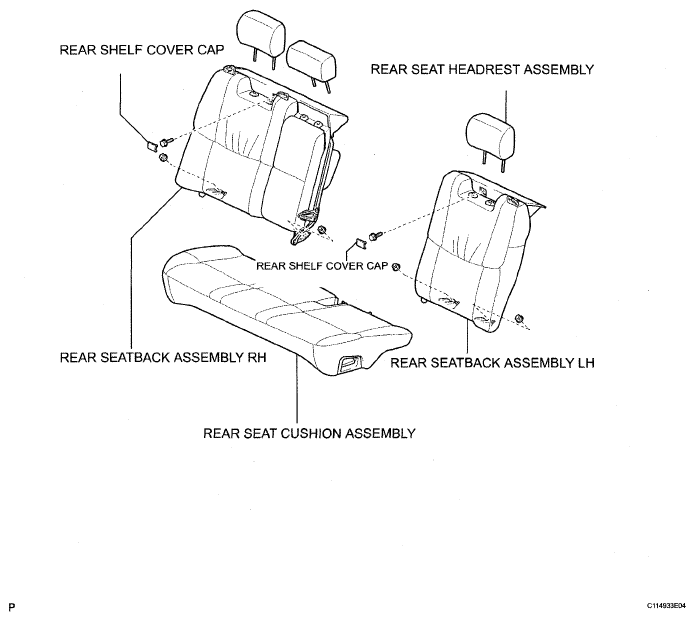

Fig 2: Identifying Child Restraint Seat Anchor Bracket Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

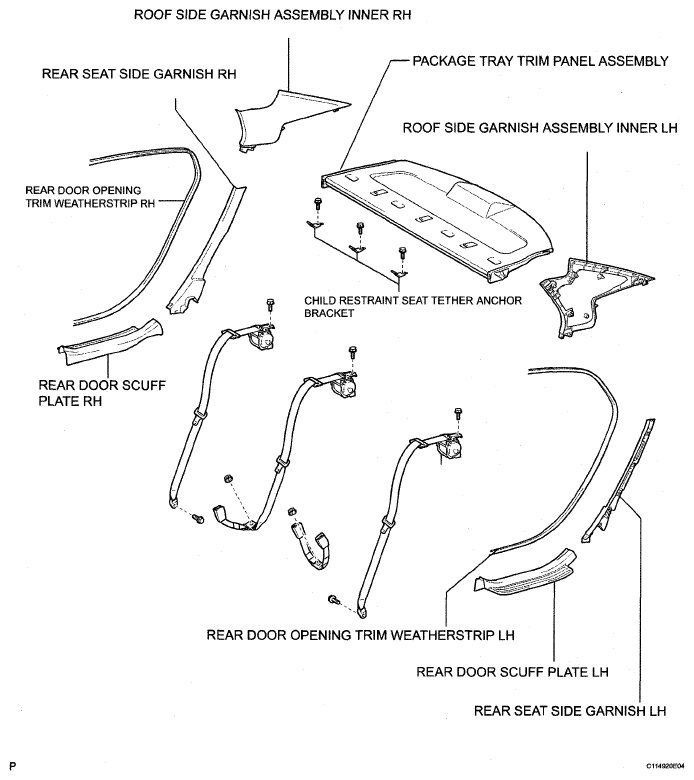

Fig 3: Identifying Child Restraint Seat Anchor Bracket Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
