Engine Control System - DTC P0604 - P2A03
>>
DTC P2118 Throttle Actuator Control Motor Current Range / Performance
>>
Wiring Diagram
DTC P2118 Throttle Actuator Control Motor Current Range / Performance: Wiring Diagram

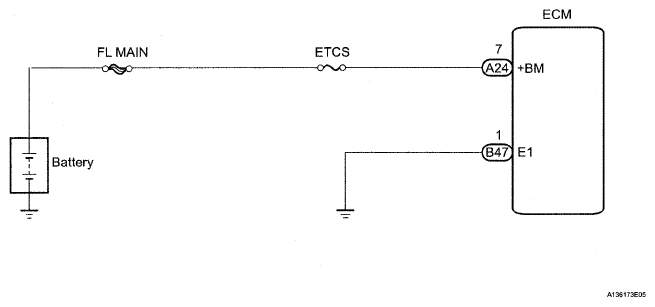

Fig 1: Electronic Throttle Control System - Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
