DTC P0617 Starter Relay Circuit High: Wiring Diagram

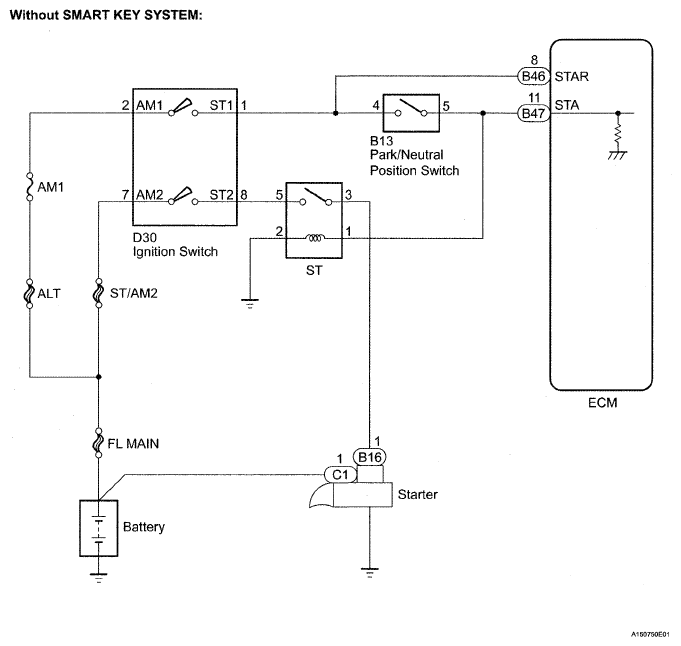

Fig 1: Starter Relay - Wiring Diagram (Without Smart Key System)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

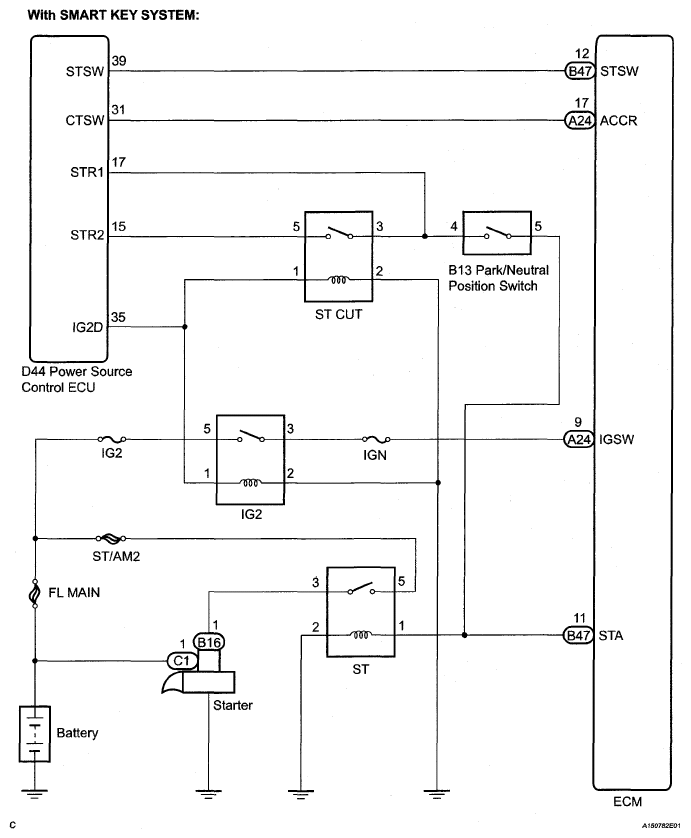

Fig 2: Starter Relay - Wiring Diagram (With Smart Key System)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
