DTC B2273 Ignition 2 Monitor Malfunction: Wiring Diagram

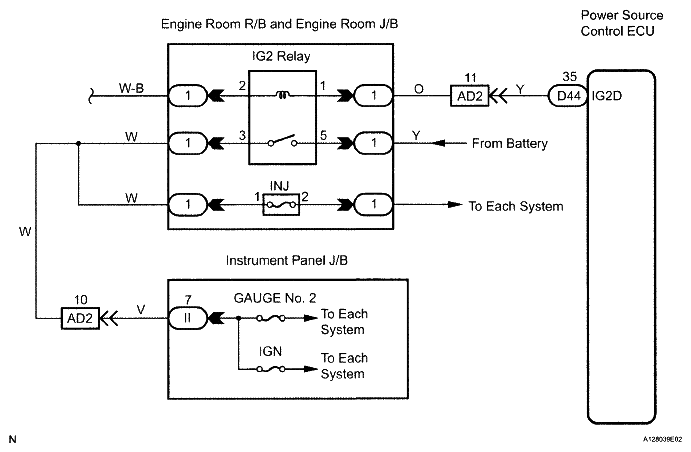

Fig 1: Ignition 2 Monitor Malfunction - Wiring Diagram

G05000339

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
