Climate Control Seat and Seat Heater: Notes

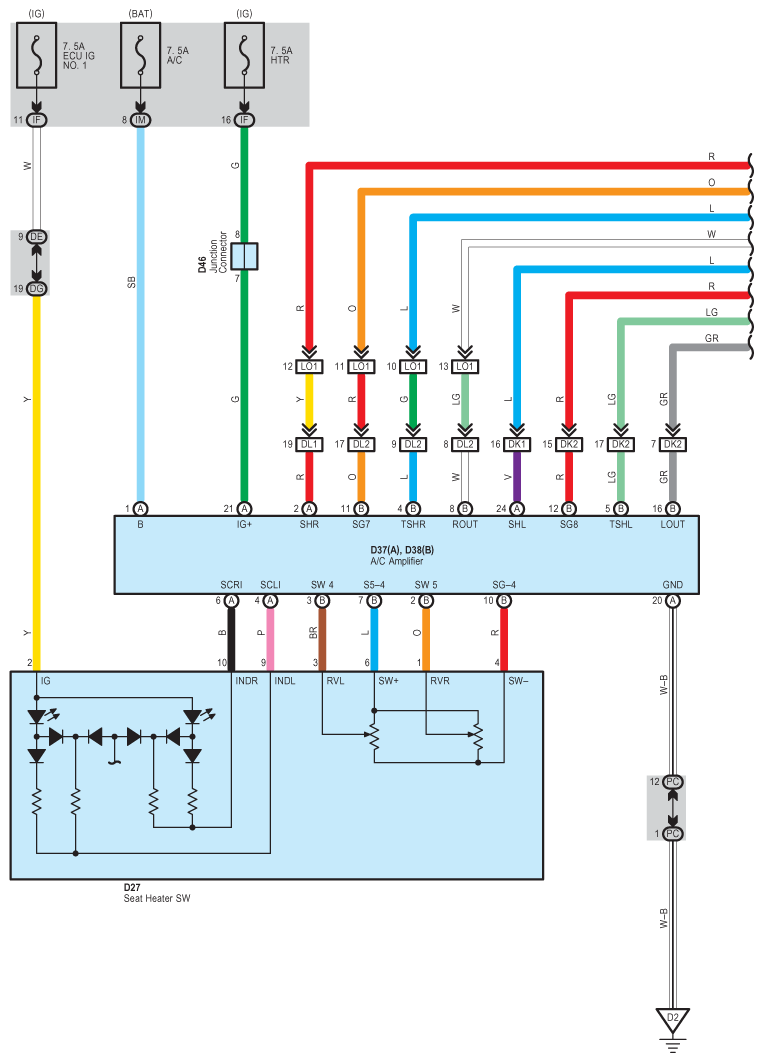

Fig 1: Climate Control Seat And Seat Heater System Wiring Diagram (1 Of 3)
G08780871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

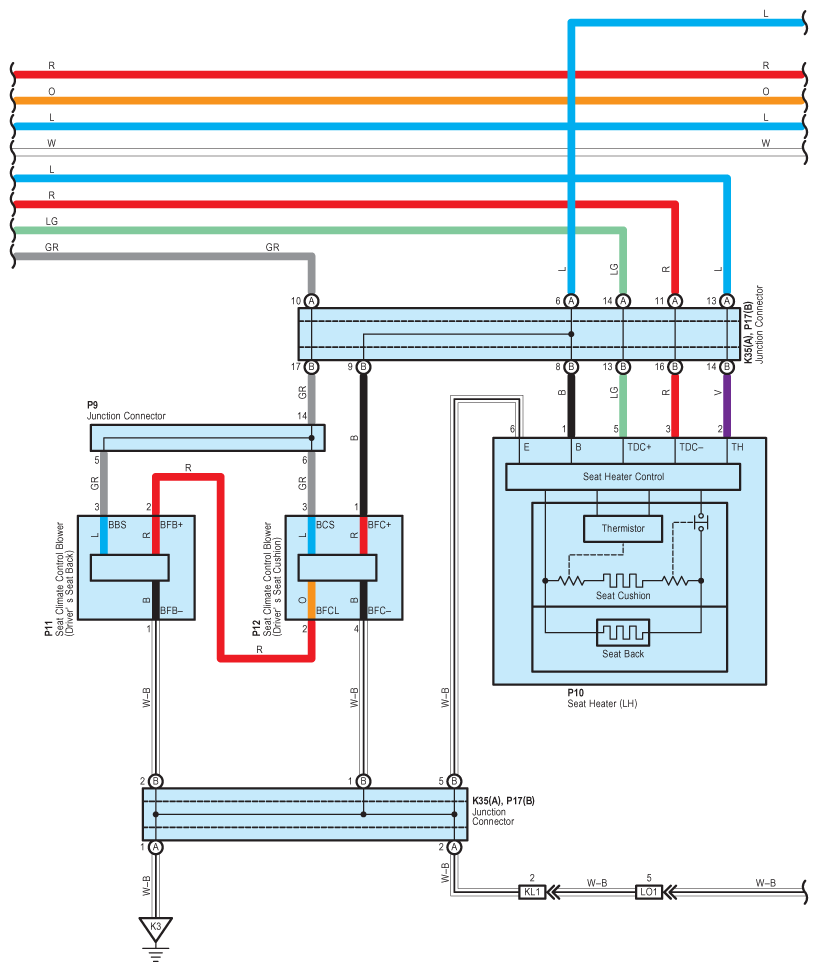

Fig 2: Climate Control Seat And Seat Heater System Wiring Diagram (2 Of 3)
G08780872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

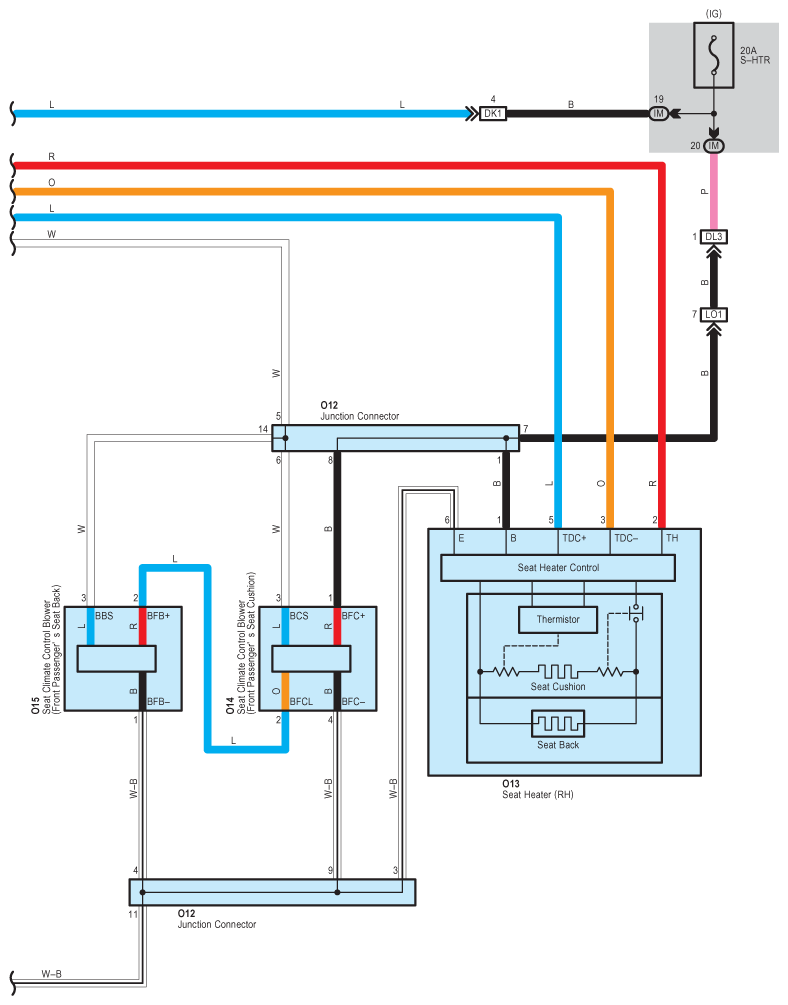

Fig 3: Climate Control Seat And Seat Heater System Wiring Diagram (3 Of 3)
G08780873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
