Light Control Switch Circuit: Wiring Diagram

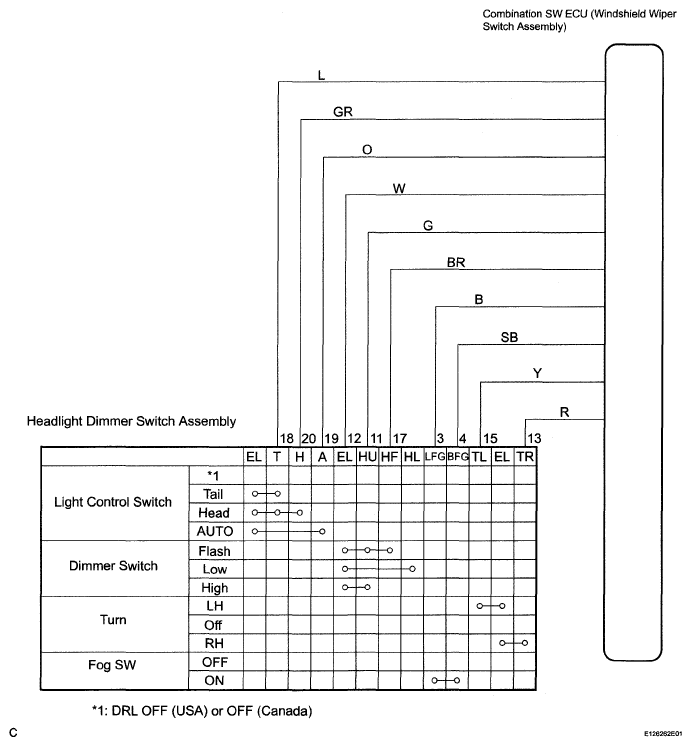

Fig 1: Light Control Switch - Wiring Diagram

G05005704

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
