Inspection Procedure

1. Connect the intelligent tester to the DLC3.
2. Turn the ignition switch on (IG) and turn the intelligent tester main switch on.
3. Select the items below in the DATA LIST, and read the displays on the intelligent tester.

BODY ECU:

NG: Go to step 2

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE  .

1. Inspect ACC relay continuity.
   1. Remove the ACC relay from the instrument panel J/ B.
   2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   ACC RELAY CONTINUITY RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   3 - 5	10 kΩ or higher
   3 - 5	Below 1 Ω (When battery voltage is applied to terminal 1 - 2)

   Fig 1: Inspecting ACC Relay

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect IG1 relay continuity.
   1. Remove the IG1 relay from the instrument panel J/ B.
   2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   IG1 RELAY CONTINUITY RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   3 - 5	10 kΩ or higher
   3 - 5	Below 1 Ω (When battery voltage is applied to terminal 1-2)

Fig 2: Inspecting IG1 Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE RELAY

OK: Go to Next Step

1. Measure the voltage according to the value(s) in the table below.

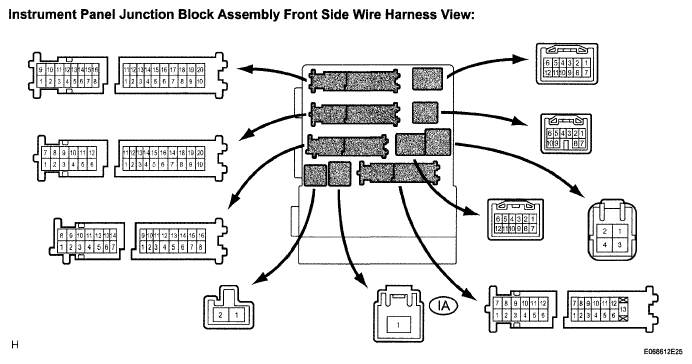

Fig 3: Identifying Instrument Panel Junction Block Assembly Connector Terminals Front Side

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard voltage

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

1. Measure the voltage according to the value(s) in the table below.

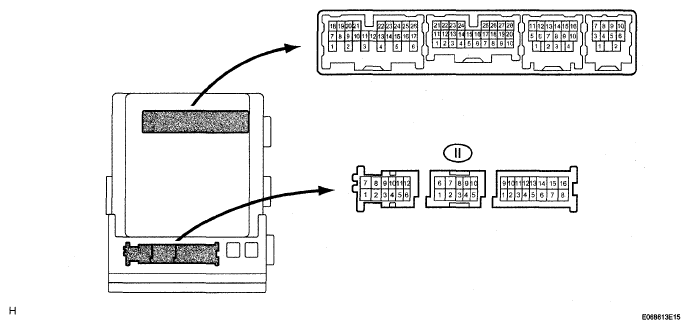

Fig 4: Identifying Instrument Panel Junction Block Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard voltage

NG: REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

OK: Go to Next Step

1. Disconnect the connector 1F from the instrument panel junction block assembly.
2. Measure the resistance according to the value(s) in the table below.

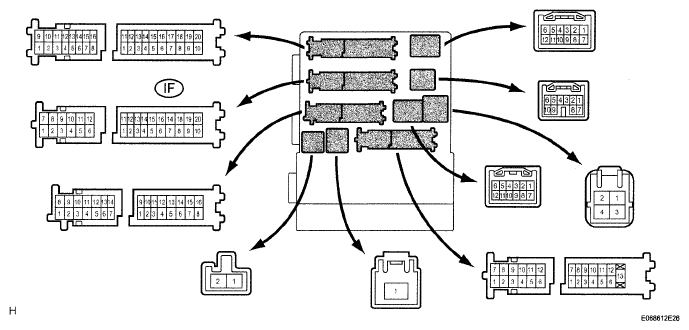

Fig 5: Checking Harness And Connector (Instrument Panel Junction Block Assembly - Body Ground)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

1. Inspect the harness and connectors related to ignition switch, referring to the wiring diagram.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE  .
