High Mounted Stop Light Assembly: Components

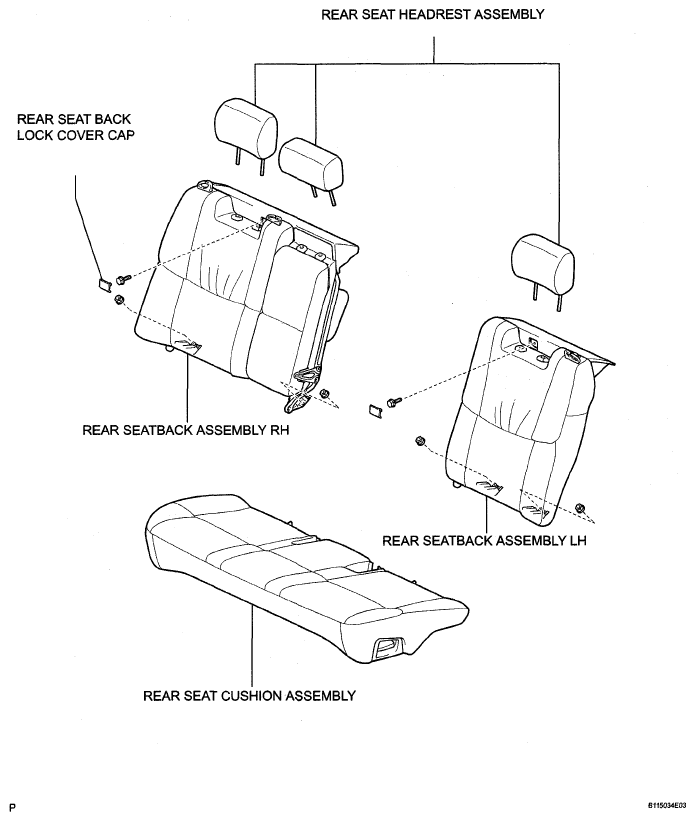

Fig 1: Identifying High Mounted Stop Light Assembly Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

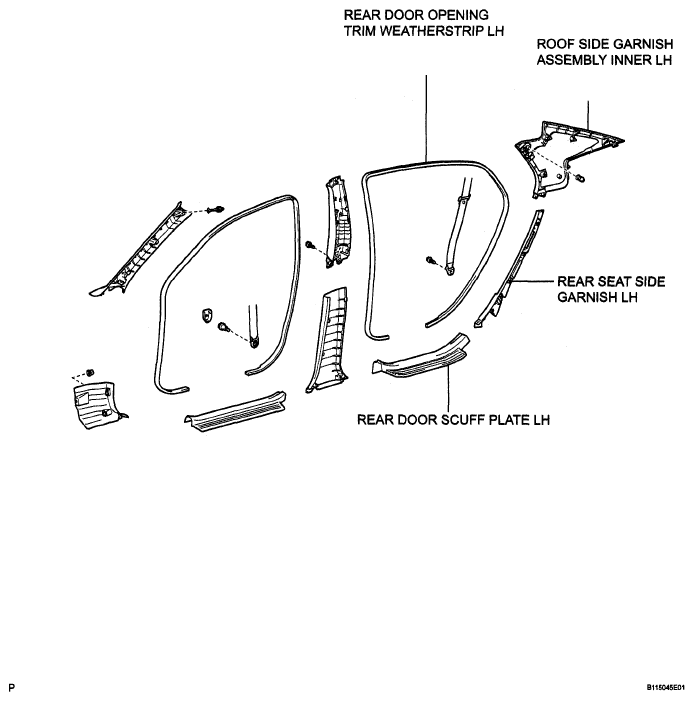

Fig 2: Identifying High Mounted Stop Light Assembly Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

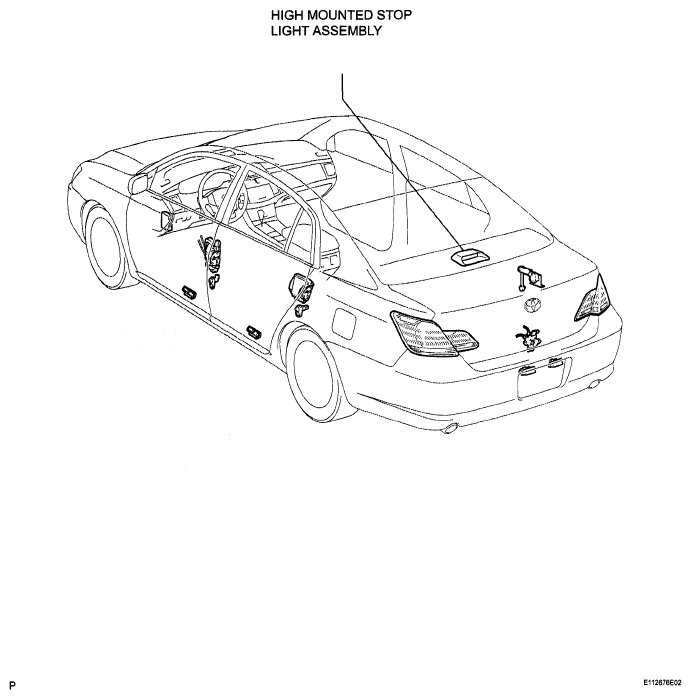

Fig 3: Identifying High Mounted Stop Light Assembly Replacement Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

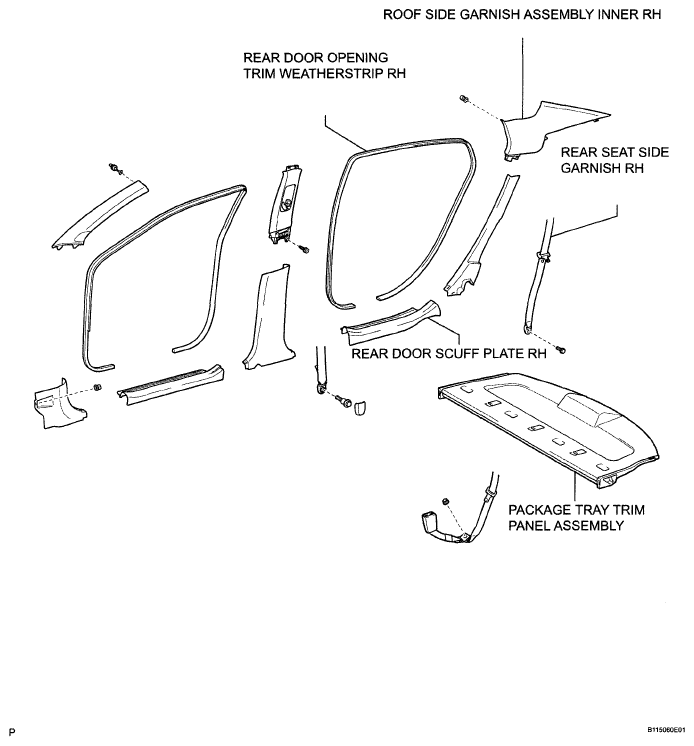

Fig 4: Identifying High Mounted Stop Light Assembly Replacement Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
