Headlight Assembly: Components

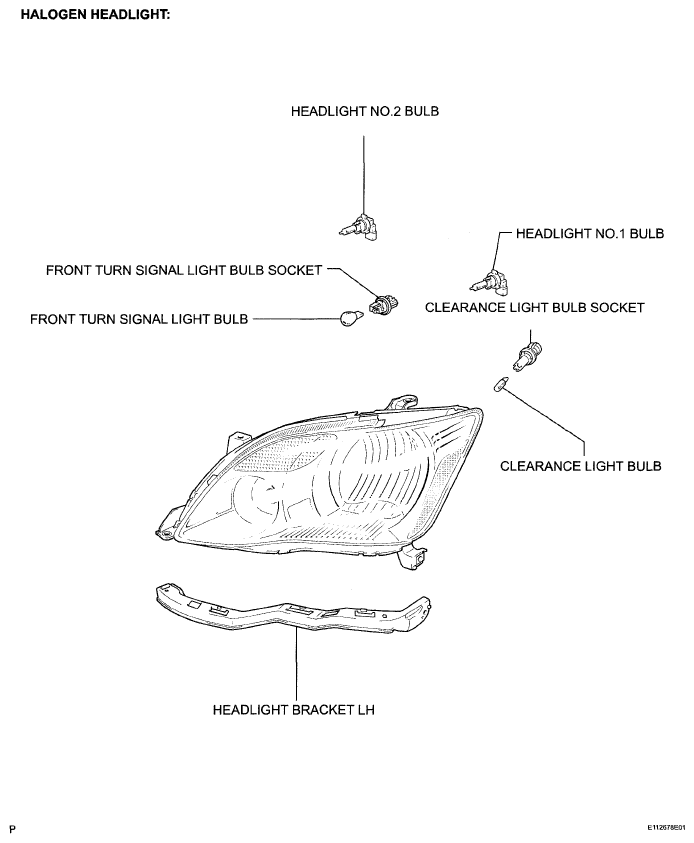

Fig 1: Identifying Headlight Assembly Components (Halogen Headlight)
G05005753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

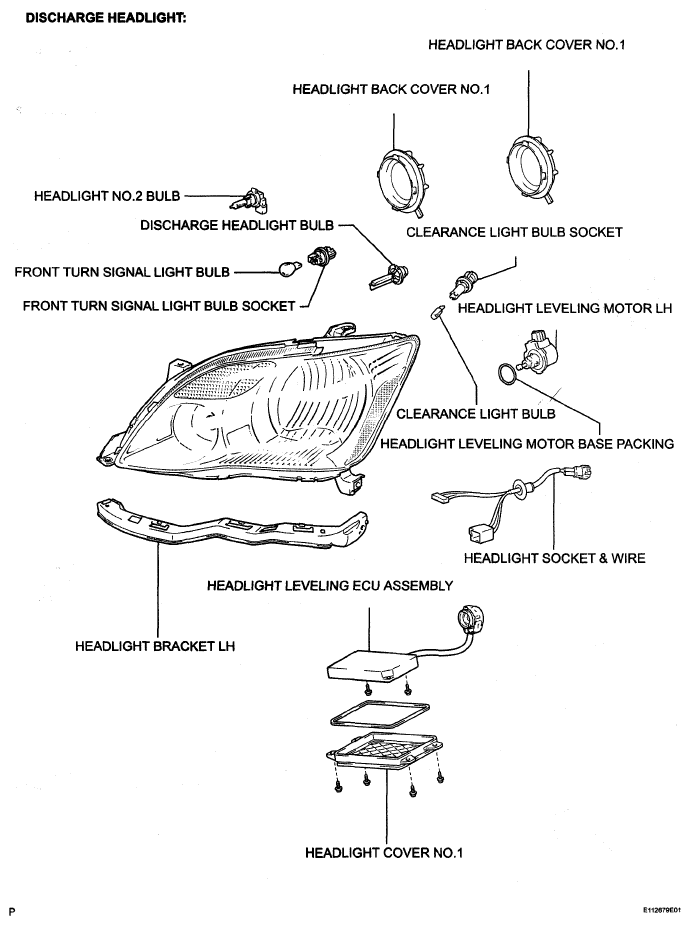

Fig 2: Identifying Headlight Assembly Components (Discharge Headlight)
G05005754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
