Steering Pad Switch: Removal

  1. TABLE OF BOLT, SCREW AND NUT  (See REMOVAL )
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

  3. REMOVE STEERING WHEEL COVER LOWER NO. 2  (See REMOVAL )
  4. REMOVE STEERING WHEEL COVER LOWER NO. 3  (See REMOVAL )
  5. REMOVE STEERING PAD  (See REMOVAL )
  6. REMOVE STEERING PAD SWITCH ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 2 screws and remove the clamp.
    3. Disengage the 4 pins and remove the steering pad switch assembly.

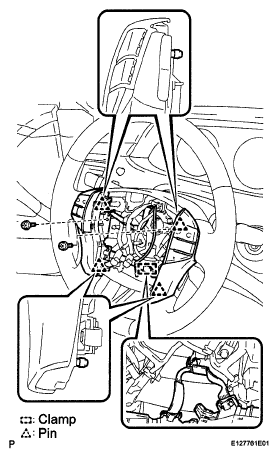

    Fig 1: Disconnecting Steering Pad Switch Assembly Bolts
    G05006308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
