Roof Speaker: Components

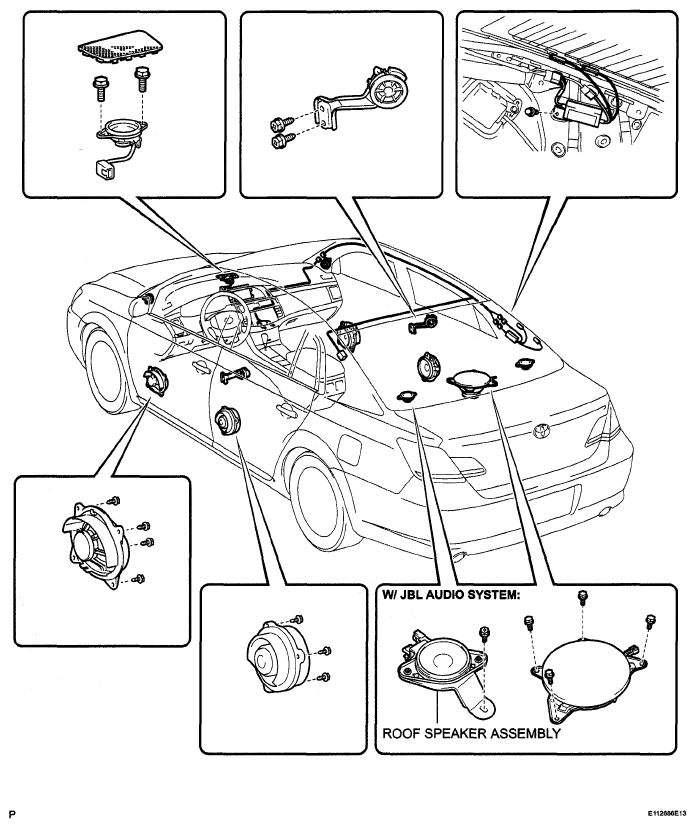

Fig 1: Identifying Roof Speaker Components (1 Of 3)
G05006284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Rear No. 2 Speaker Replacement Components w Torque Specifications Table (4 Of 4)
G05006285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Roof Speaker Replacement Components With Torque Specifications (3 Of 3)
G05006286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
